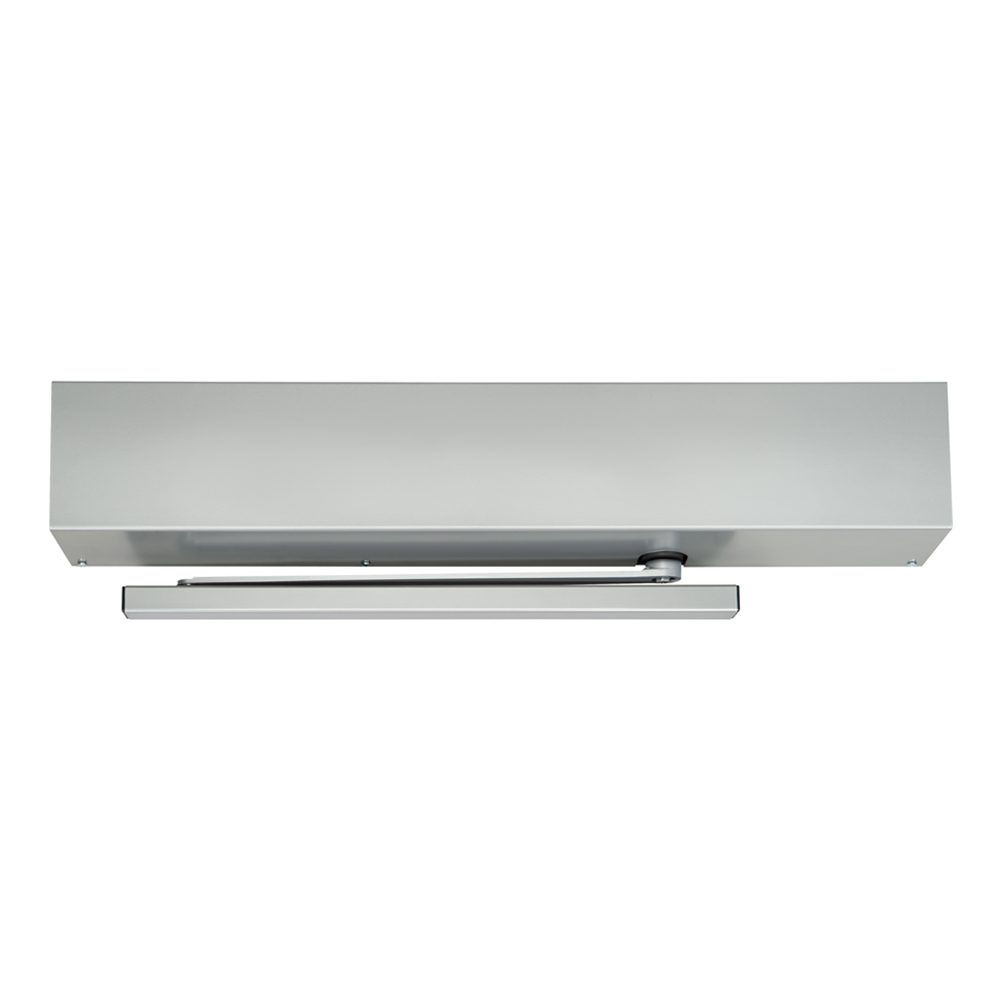

Norton 5531 689 Low Energy Power Operator offers a seamless blend of functionality and efficiency for commercial door applications. This low energy surface-mounted electrohydraulic door operator is specifically designed for push side mounting and accommodates a generous 170-degree swing. Its aluminum painted finish in a matte silver tone provides both durability and aesthetic appeal. Engineered for quiet and smooth operation, the Norton 5531 utilizes a hydraulic closer, making it ideal for environments where manual operation is common, while also allowing for automatic activation through door switches. With basic automated door functions, it ensures quick setup and installation, streamlining the process for building professionals. This operator is ADA compliant and accessible, making it suitable for a variety of users. It supports doors weighing up to 250 lbs and offers adjustable back check and degree hold open features. The unit operates on a 120V power supply and is UL10C listed for safety and reliability. Additionally, it comes with a two-year limited warranty, ensuring peace of mind with your purchase. Whether updating existing hardware or outfitting new constructions, the Norton 5531 689 Low Energy Power Operator is a reliable choice for enhancing accessibility and convenience in commercial spaces.
Low Energy Power Operator
Low Energy Surface Mounted Electrohydraulic Door Operator, Regular, Push Side Mounted, 170 Deg. Swing, Aluminum Painted Finish
The 5500 Series low energy operator uses a hydraulic closer to ensure quiet, consistently smooth operation and is ideal in applications where doors are typically operated manually but can also be activated via door switches for automatic operation. The 5500 Series offers basic automated door functions and is designed for quick set-up and installation.
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.19 & A156.4
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Burglar Rated: No
Cement Case: No
Commercial Residential: Commercial
Country of origin: USA
Cover: Less Cover
Degree Hold Open: Adjustable
Degree Swing: 170 Deg.
Delay: Yes
Door Weight: 250 lbs.
Finish: 689/US28
Finish Family: Matte Silver
Fire Rated: Yes {Variable}
Fire Rating: Yes {Variable}
Hold Open: Yes
Hold Open Type: Electric
Installation: Commercial
Limited Warranty: 2 Years
Mounting Group: Electrohydraulic
Mounting Location: Push Side
Mounting Style: Regular
Origin: USA
Pack Qty: 1
Physically Handicapp: Yes
Pivot Included: No
Relay: SPDT Output
Restrictions: None
Reveal Size: 2-5/8" to 6-3/4"
Sealed Closer: No
Series: 5500 Series Low Energy Power Operators
Special Rust Inhibitor: No
Subtype: Door Operators
Through Bolts: No
Type: Surface
Ul Listing: UL10C
Unit of Measure: Each
Voltage: 120V
