Norton 5831xNPB 689 ADA EZ Pro Operator

Norton 5831xNPB 689 ADAEZ Pro Operator offers a seamless blend of efficiency and accessibility in a compact design. This heavy-duty, low-energy door operator is specifically engineered for high-traffic environments requiring both manual and automatic operation, making it ideal for retail spaces, banks, and educational institutions. Its innovative regenerative power system harnesses energy during manual operation to recharge an onboard battery pack, eliminating the need for external electrical wiring and providing up to 12 years of self-sustained operation. Designed to comply with ANSI A156.19 and the Americans with Disabilities Act, the ADAEZ Pro features adjustable opening and closing forces, ensuring accessibility for all users. It accommodates doors up to 48 inches wide and 250 pounds, and its on-board diagnostics maintain optimal performance in varying conditions. The included wireless push buttons are moisture-resistant, further enhancing usability. With a sleek aluminum finish and a two-year warranty, the Norton 5831xNPB combines durability with aesthetic appeal. Its self-powered design, easy installation, and superior slip-resistant components make it an exceptional choice for any commercial application, providing reliable operation while promoting energy conservation.

ADAEZ Pro Operator

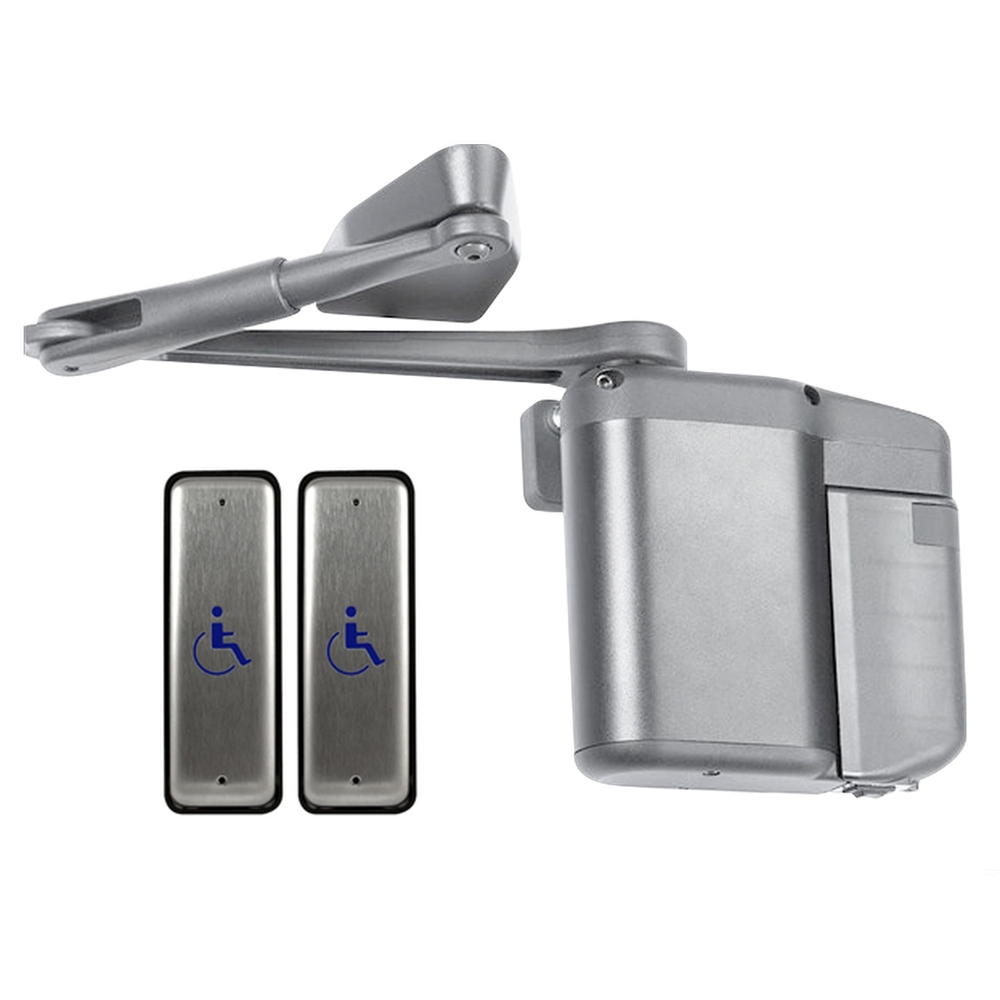

ADAEZ PRO Door Operator Kit, Push Side, (Parallel Arm Operator, 2 Wireless Narrow Style Push Buttons), Aluminum Finish

As one of the world's only regenerative power door operators, Norton's ADAEZ Series is certified by GreenCircle to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 ADAEZ is simple to install and use.

The 5800 Series ADAEZ PRO is a compact electromechanical door operator that is simple to install and use.

This heavy-duty, low energy operator is intended for high traffic manual opening applications that occasionally require automatic operation like retail outlets, banks, schools or universities. A Regenerative Power System charges an onboard battery pack that eliminates the need to run electrical wire to the unit. When used in automatic mode 25% of the time or less, the 5800 Series ADAEZ PRO will self-generate enough power to charge the battery pack for up to 12 years.

• Complies with requirements of ANSI A156.19.
• Adjustable opening and closing forces that meet the provisions of ANSI 117.1 and the Americans with Disabilities Act.
• Regenerative drive system which charges the on-board battery pack when operator is opened manually and which requires no external electrical power.
• Determines door size and weight and automatically tune controller to operate within ANSI 156.19 and 117.1 standards. Also has the following adjustable functions:
  • Opening/Closing Speed.
  • Hold-open Time.
  • Close Check.
  • Opening/Closing Force.
• On-board diagnostics which continually maintain control of door speed in wind or abusive environment condition.
• When operated manually, utilizes a clutch mechanism that disengages the motor gearbox assembly upon opening, then re-engages during the closing cycle to control spring force for even and smooth operation throughout the entire opening and closing cycle.
• Continues closing door within ANSI A156.19 and 117.1 requirements without any external power supplied. Upon meeting an obstruction during the opening cycle the door shall remain under power for two seconds and then close under spring force; if the door meets and obstruction will closing, the door will maintain a closing force of 8 lbs or less.
• Capable of operating doors up to 48” wide, weighing up to 250 lbs, and successfully tested for 1,000,000, automatic cycles.
• Operates in climates with temperatures above -40° F and has a two year warranty.
• Two stainless steel, 1-3/4” x 4-3/4” wireless, jamb mounted, push button transmitters with required signage. Locate push buttons as directed by architect and within ANSI A156.19 and 117.1 guidelines.
• Utilizes a triangular hardened steel output shaft to connect door arm with a two piece tapered coupling for superior slip resistance.
• Push button transmitter with circuit boards that have been specially coated to resist moisture and humidity making the electronics weather resistant.
• Integral heavy duty cast aluminum shock absorbing arm, which when fully extended is in full tension eliminating the need for an auxiliary door stop.
• Three architecturally finished dress covers and black powder coated frame, arms and mounting brackets.
• Environmental Product Declaration (EPD) certified
