Norton 5833XNPB 693T ADA EZ Pro Plus Operator

Norton 5833XNPB 693T ADAEZ Pro Plus Operator is a cutting-edge electromechanical door operator designed for high-traffic environments such as retail outlets, banks, and educational institutions. This kit includes a parallel arm operator, ADA1015P hardwire kit, and two narrow-style push buttons, all finished in a sleek black textured powder coat. One of its standout features is the regenerative power system, which charges an onboard battery pack during manual operation, allowing it to operate without external electrical power. This innovative design can potentially self-generate enough energy for up to 12 years, minimizing energy consumption by as much as 100% compared to traditional operators. The ADAEZ Pro Plus is compliant with ANSI A156.19 and ADA guidelines, ensuring adjustable opening and closing forces that cater to various door sizes and weights-up to 48 inches wide and 250 pounds. With built-in diagnostics, it maintains optimal door speed even in challenging environmental conditions, while its durable clutch mechanism ensures smooth operation during both opening and closing cycles. The unit is ideal for a variety of commercial applications and comes with a two-year warranty, ensuring reliability and peace of mind. With the Norton ADAEZ Pro Plus, you can enhance accessibility and convenience while adhering to stringent safety standards.

ADAEZ Pro Plus Operator

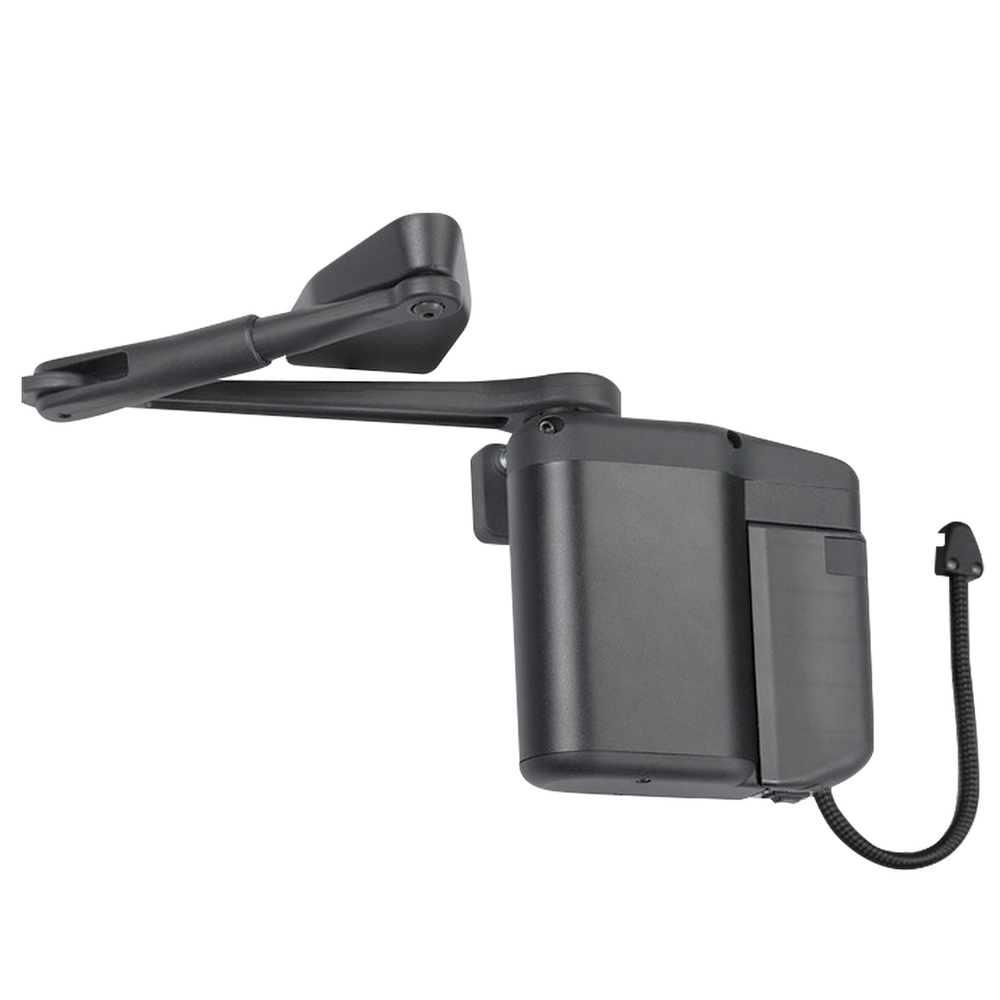

ADAEZ PRO PLUS Door Operator Kit, Push Side, (Parallel Arm Operator, ADA1015P Hardwire Kit and 2 Narrow Style Push Buttons), Black Textured Powder Coat Finish

As one of the world's only regenerative power door operators, Norton's ADAEZ Series is certified by GreenCircle to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 ADAEZ is simple to install and use.

The 5800 Series ADAEZ PRO is a compact electromechanical door operator that is simple to install and use.

This heavy-duty, low energy operator is intended for high traffic manual opening applications that occasionally require automatic operation like retail outlets, banks, schools or universities. A Regenerative Power System charges an onboard battery pack that eliminates the need to run electrical wire to the unit. When used in automatic mode 25% of the time or less, the 5800 Series ADAEZ PRO will self-generate enough power to charge the battery pack for up to 12 years.

• Complies with requirements of ANSI A156.19.
• Adjustable opening and closing forces that meet the provisions of ANSI 117.1 and the Americans with Disabilities Act.
• Regenerative drive system which charges the on-board battery pack when operator is opened manually and which requires no external electrical power.
• Determines door size and weight and automatically tune controller to operate within ANSI 156.19 and 117.1 standards. Also has the following adjustable functions:
  • Opening/Closing Speed.
  • Hold-open Time.
  • Close Check.
  • Opening/Closing Force.
• On-board diagnostics which continually maintain control of door speed in wind or abusive environment condition.
• When operated manually, utilizes a clutch mechanism that disengages the motor gearbox assembly upon opening, then re-engages during the closing cycle to control spring force for even and smooth operation throughout the entire opening and closing cycle.
• Continues closing door within ANSI A156.19 and 117.1 requirements without any external power supplied. Upon meeting an obstruction during the opening cycle the door shall remain under power for two seconds and then close under spring force; if the door meets and obstruction will closing, the door will maintain a closing force of 8 lbs or less.
• Capable of operating doors up to 48” wide, weighing up to 250 lbs, and successfully tested for 1,000,000, automatic cycles.
• Operates in climates with temperatures above -40° F and has a two year warranty.
• Two stainless steel, 1-3/4” x 4-3/4” wireless, jamb mounted, push button transmitters with required signage. Locate push buttons as directed by architect and within ANSI A156.19 and 117.1 guidelines.
• Utilizes a triangular hardened steel output shaft to connect door arm with a two piece tapered coupling for superior slip resistance.
• Push button transmitter with circuit boards that have been specially coated to resist moisture and humidity making the electronics weather resistant.
• Integral heavy duty cast aluminum shock absorbing arm, which when fully extended is in full tension eliminating the need for an auxiliary door stop.
• Three architecturally finished dress covers and black powder coated frame, arms and mounting brackets.
• Environmental Product Declaration (EPD) certified
