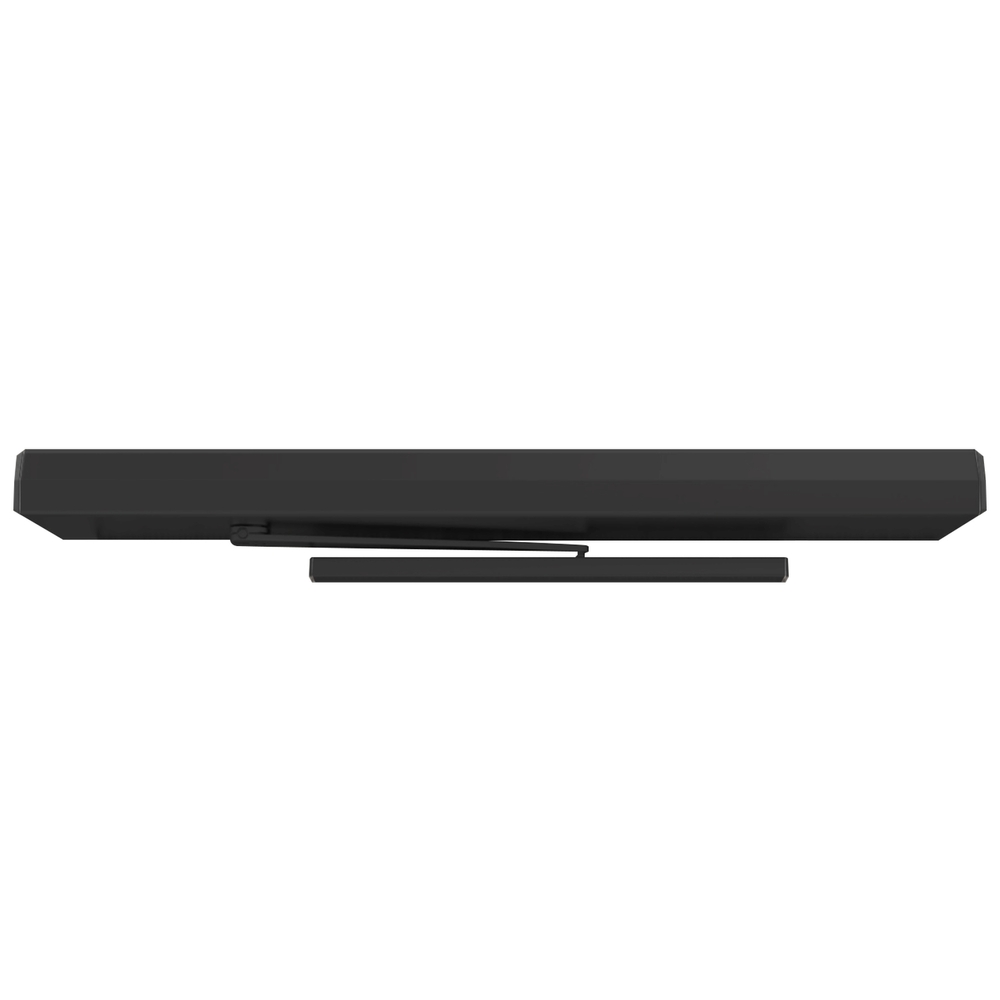

Norton 6312 BSP Low Energy Operator - Pull Side

Norton 6312 BSP Low Energy Operator Pull Side is a sophisticated electromechanical door operator designed for surface mounting, ideal for commercial applications. With a header length of 39-5/8 inches and a slide track arm as the standard, it accommodates doors ranging from 36 to 48 inches wide, swinging up to 180 degrees. Its sleek black suede powder coat finish ensures an aesthetic integration into various environments. This operator is equipped with intelligent functions including power close, latch assist, and obstruction detection, making it a reliable choice for moderate to high traffic openings. The unique slim profile is particularly advantageous for installations with limited header space. A modular design and straightforward controls simplify installation and setup, while the innovative Wi-Fi interface allows for easy mobile device integration. Additionally, the Norton 6312 is ADA compliant, offering accessibility for all users. It features adjustable back check and degree hold open options, ensuring personalized operation. Built for durability, it supports door weights up to 200 lbs. and comes with a two-year limited warranty. Ideal for building professionals and knowledgeable homeowners alike, this door operator combines functionality with contemporary design.

Low Energy Operator Pull Side

Low Energy Surface Mounted Electromechanical Door Operator, 39-5/8" Header, Slide Track Arm Standard, Pull Side Mounted, 36" - 48" Door, Up to 180 Deg. Swing, Black Suede Powder Coat Finish

The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new Wi-Fi interface via a mobile device make for easy installation and setup.

Resources

• 2021 Norton Operators Catalog
• 6300 Latch Bolt Monitor Wiring Diagram
• 6300 Series Operator Brochure
• 6300 Series Operator Catalog
• 6300 Series Operators Cut Sheet
• 6300 Wall Plates 24V Mag Lock Wiring Diagram
• 6300 Wall Plates 24V Strike Wiring Diagram
• 6300 x 782 Controller x Solenoid Exit Device Wiring Diagram
• 6300 x MKA2 x 24V Strike Wiring Diagram
• 6300 x RF Wiring Diagram
• 6311/6351 Full Feature (Pull Side) Low Energy Operator Instructions
• Norton Rixson Low Energy Operator Brochure
