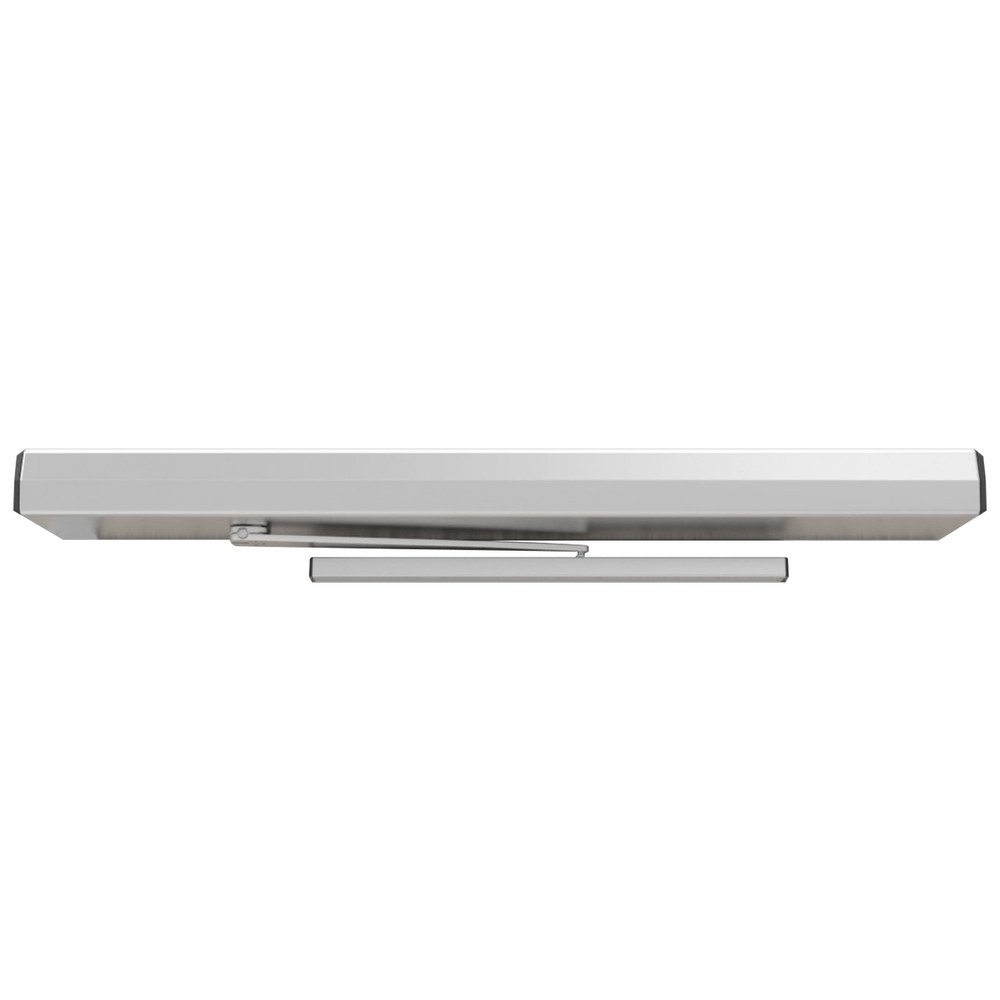

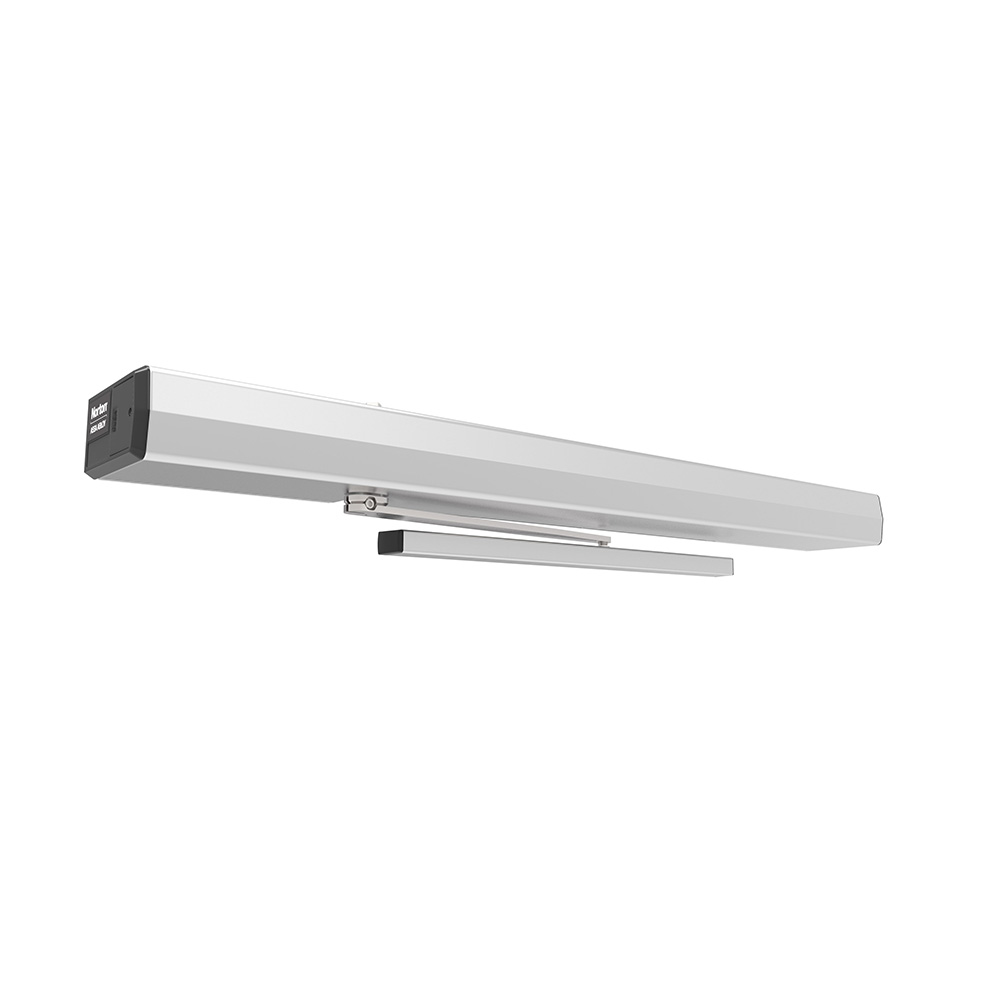

Norton Closers 6312689 Pull Side Slide Track Arm Operator in Aluminum Finish delivers exceptional performance with its innovative design. This automatic operator features a modular design that allows for quick installation by a single person, making it a practical choice for various applications. The non-handed configuration ensures compatibility with a range of door setups, while the onboard power supply of 1.3 amps guarantees reliable operation. One of the standout features of this operator is its versatility; it functions as a mechanical surface closer when power is off, ensuring accessibility even during power outages. Crafted from durable cast aluminum, this model not only offers a sleek appearance but also stands up to the rigors of daily use. The Norton 6312689 is part of the 6300 Series and comes with a limited two-year warranty, providing peace of mind for building professionals and homeowners alike. With dimensions of 37-3/8" x 4-3/4" x 4-3/16", this operator is compact yet robust. Additionally, it is UL325/991 Certified and UL10C Listed, ensuring compliance with safety standards. Whether for new installations or upgrades, the Norton Closers 6312689 is a reliable choice for effective door control solutions.
Norton Door Controls offers a comprehensive line of door controls designed and manufactured to ensure superior performance and reliability. Norton Door Controls refined the rack and pinion closer and the concept of valve controlled backcheck for hydraulic door closers. Along the way there have been a variety of other innovations, including aluminum alloy body, narrow style, non-handed closers, adjustable backcheck, speed adjustments and special application arms.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.19
Application: Single 36" Doors
Arm Type: Slide Track Arm, Standard
Baa Qualified: Yes
Back Check: Adjustable
Category: Door Closers and Accessories
Clazz: NC
Closer Type: Automatic Operator
Color: Aluminum
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: USA
Cover: Less Cover
Current Draw: 1.5A
Degree Hold Open: Adjustable
Degree Swing: Up to 180 Deg.
Delay: Yes
Dimension: 2-3/4" x 4-3/4" x 39-5/8"
Door Size: 36" to 48"
Door Weight: 200 lbs.
Finish: Aluminum
Finish Code: 689
Finish Description: Aluminum Painted
Finish Family: Matte Silver
Handing: Non-Handed
Hazardous Material: NO
Hold Open: No
Hold Open Type: Electric
Installation: Commercial
Item Class Description: Pull Side Slide Track Arm Operator
Item Type Keyword: Operator
Limited Warranty: 2 Years
Manufacturer Warranty: Limited 2 Year Warranty
Material: Cast Aluminum
Mounting Group: Electromechanical
Mounting Location: Pull Side
Mounting Style: Pull Side Mounting
No Of Inners: 1
Number Of Inners: 1
Operating Voltage: 120 VAC
Order_ Qty: 1
Origin: USA
Pack Height: 7"
Pack Length: 42"
Pack Qty: 1
Pack Volume: 3822 in³
Pack Width: 13"
Reveal Size: 1/8"
Series: 6300 Series
Ship Weight: 28 lbs.
Subcategory: Automatic Operators
Subtype: Closer Accessories
Type: Surface
Ul Listing: UL10C, UL325/991
Ul Listing Type: UL325/991 Certified UL10C Listed
Unit of Measure: Each
Voltage: 24V
