Norton 6342 690 Universal Low Energy Operator

Norton 6342 690 Low Energy Operator, Universal, is a versatile solution for automating single doors ranging from 36" to 48" in width. This low energy, surface-mounted electromechanical door operator features a 39-5/8" header and is available with a double lever arm or slide track arm, allowing for flexible installation options on both push and pull sides. The operator accommodates doors with up to a 180-degree swing, making it suitable for various commercial applications. Designed with a dark bronze painted finish, the Norton 6342 not only functions effectively but also complements the aesthetics of any building. Its intelligent features include power close, latch assist, and obstruction detection, ensuring safety and reliability for moderate to high traffic environments. The adjustable back check and degree hold open further enhance usability, while the Wi-Fi interface simplifies setup and control through mobile devices. Built to comply with ADA standards, this operator boasts a robust capacity with a weight limit of 254 lbs. for push and 198 lbs. for pull applications. Backed by a two-year limited warranty, the Norton 6342 690 Low Energy Operator is a durable and practical choice for enhancing door access in commercial settings.

Low Energy Operator, Universal

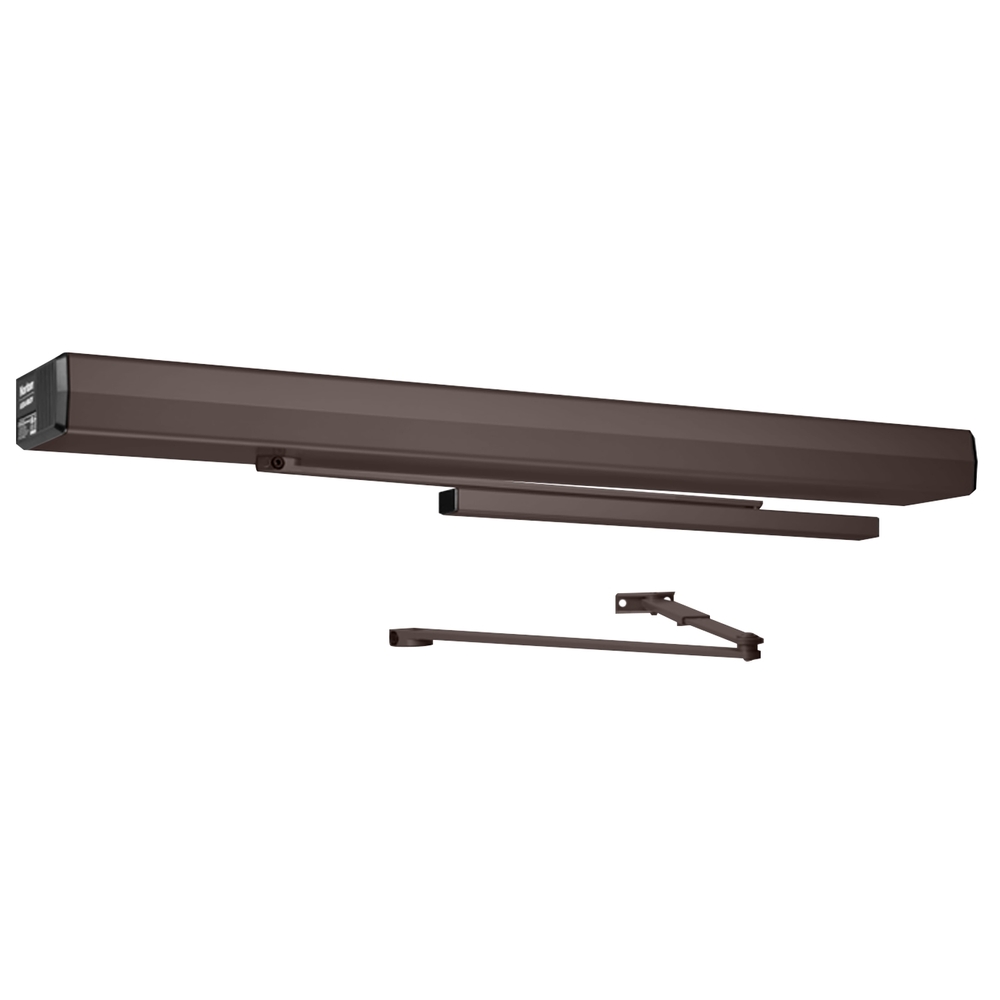

Low Energy Surface Mounted Electromechanical Door Operator, 39-5/8" Header, Double Lever Arm Regular & Slide Track Arm Standard, Push or Pull Side Mounted, Slide Track or Top Jamb, 36" - 48" Door, Up to 180 Deg. Swing, Dark Bronze Painted Finish

The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new Wi-Fi interface via a mobile device make for easy installation and setup.

Resources

• 2021 Norton Operators Catalog
• 6300 Latch Bolt Monitor Wiring Diagram
• 6300 Series Operator Brochure
• 6300 Series Operator Catalog
• 6300 Series Operators Cut Sheet
• 6300 Wall Plates 24V Mag Lock Wiring Diagram
• 6300 Wall Plates 24V Strike Wiring Diagram
• 6300 x 782 Controller x Solenoid Exit Device Wiring Diagram
• 6300 x MKA2 x 24V Strike Wiring Diagram
• 6300 x RF Wiring Diagram
• 6311/6351 Full Feature (Pull Side) Low Energy Operator Instructions
• Norton Rixson Low Energy Operator Brochure
