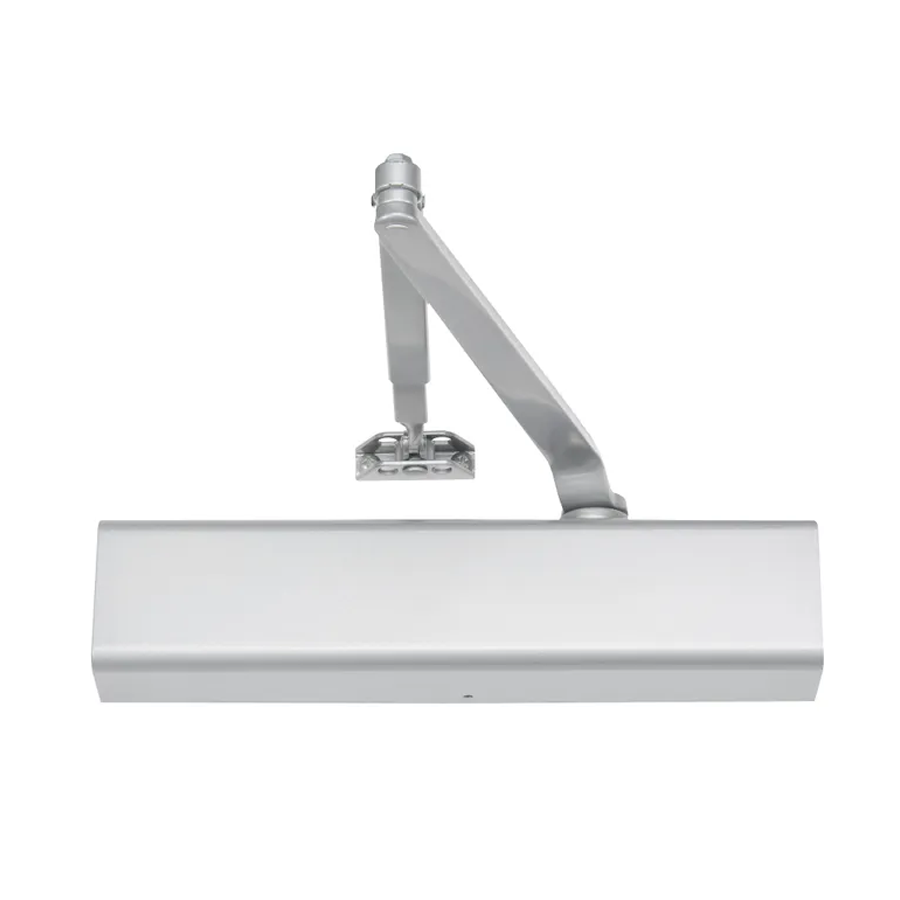

Norton 8501-SN-689 ADA Surface Door Closer, Adjustable Spring Sizes 1-6, Tri-Packed, UL Certified

Norton 8501-SN-689 ADA Surface Door Closer combines functionality with sleek design, making it an ideal choice for moderate to high-traffic architectural openings. Crafted from robust cast aluminum, this surface closer is built to withstand the test of time and ensures reliable performance with stringent testing supporting over 25 million cycles. The adjustable spring sizes from 1 to 6 provide versatility for various door weights, accommodating doors up to 250 lbs. Its tri-packed configuration allows for regular, top jamb, and parallel arm mounting, catering to diverse installation needs. The non-handed design and extensive range of arm configurations ensure that the Norton 8501 can adapt to most applications while maintaining a clean aesthetic. This door closer features a 1-1/4" diameter piston and staked valves to prevent unintended adjustments. With a 2-1/8" projection and the ability to swing doors 180 degrees when conditions permit, it excels in both interior and exterior applications. Additionally, it comes with a 30-year limited warranty and meets ANSI/BHMA A156.4, grade 1 certification standards, guaranteeing its durability and reliability. Available in a variety of finishes, including the satin aluminum option, the Norton 8501-SN-689 is a practical and stylish choice for enhancing door security and accessibility.

ADA Surface Door Closer, Adjustable Spring Sizes 1-6, Full Cover, Tri-Packed (Regular, Parallel, Top Jamb Mounting), UL, 689/SP28 Aluminum Powder Coat

The 8000 series is a multi-sized, surface closer offering a complete range of arms and a sleek, minimal design suited for moderate to high-traffic, architectural openings.

Features:

• Cast aluminum closer
• Constructed with robust materials and internal components
• Adjustable spring sizes 1-6
• One package covers regular, top jamb and parallel arm mounting
• Tri-packed
• Stringent testing supports a long-life of reliability
• Exceeds 25 million cycles
• Staking limits ability to accidentally back out the valve while adjusting closer
• 1-1/4" diameter piston
• Sleek, minimal design provides clean aesthetic
• Staked valves
• Arm configurations meet broad range of applications
• Non-handed
• Extensive offering of accessories to assist with the most difficult applications
• 2-1/8" projection (standard covers)
• Proprietary lubricate delivers optimal performance and efficiency
• Interior or exterior doors
• All standard arm applications allow doors to swing 180, conditions permitting
• Standard, separate and independent latch, sweep, and backcheck intensity valves
• Hold open, heavy-duty and low profile arms available
• Slide track - push or pull side mounting
• Mounting plates, drop plates, brackets available
• Fasteners: sleeve nuts & bolts, thru-bolt grommet nuts, Torx

Specifications:

• Closer Type: Surface
• Maximum Door Weight: 250 lbs
• Traffic Rating: Moderate traffic
• Warranty: 30-year limited warranty
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• 8501: Regular Arm
• Only pull side application where double lever arm is used
• Sufficient frame, door and/or ceiling clearance must be considered
• 8501: Parallel Arm
• Provides the most appealing appearance for a surface-mounted door closer with a double lever arm
• Very little or no hardware projecting beyond the frame face, when in closed position, in most situations
• 8501: Top Jamb
• Must be sufficient frame face and/or ceiling clearance for this application
• Requires a top rail on the door of just 2-1/4" (57mm)
• Provides the best door control for doors in exterior walls that swing out of a building
• 8501ST: Pull side slide track - provides the smoothest lines available in a surface mounted door closer Adjustable 85° to 110°
• 8581: Low Profile, Regular Arm
• Reduced height elbow joint and straight main arm
• Allows closer to be installed where there is as little as 1" of frame face or ceiling clearance

Finishes:

• 600 - Primed for painting
• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 619/US15 - Satin nickel plated, clear coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 693/SPBLK - Flat black painted
• 694 - Medium bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
