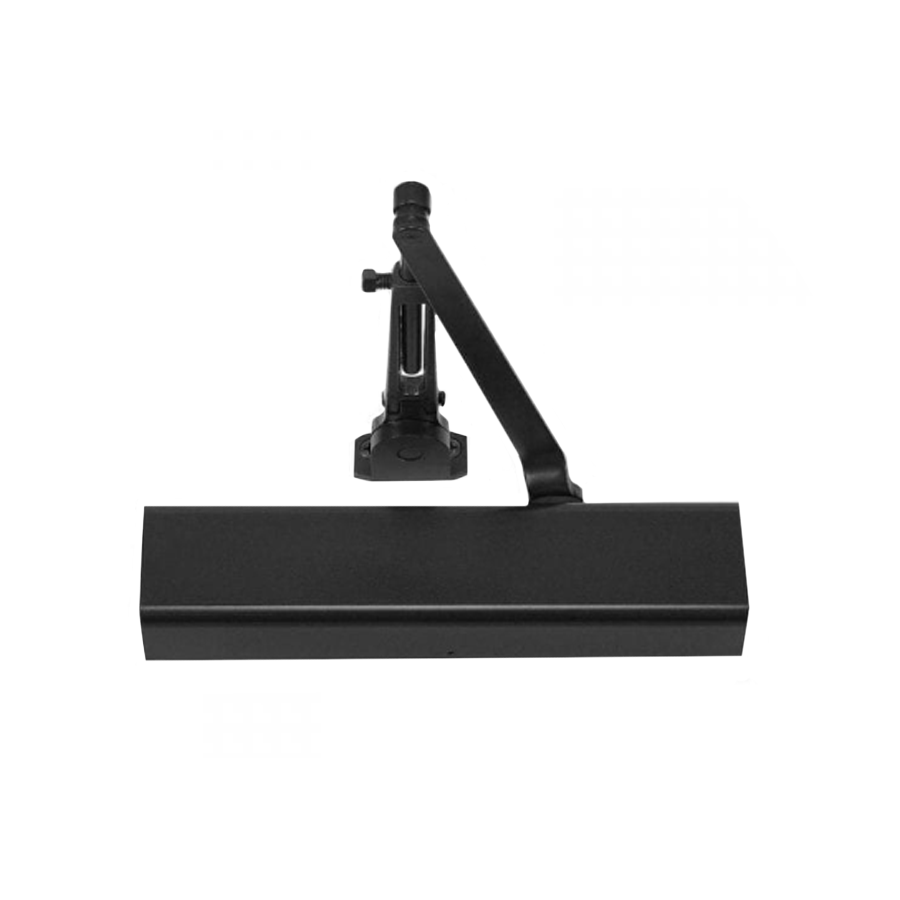

Norton 8501-SN-BSP ADA Adjustable Surface Door Closer, Sizes 1-6, Tri-Packed, UL, Black Suede

Norton 8501-SN-BSP ADA Surface Door Closer offers a versatile solution for moderate to high-traffic architectural openings. Designed with a sleek and minimal aesthetic, this closer is not only functional but also enhances the visual appeal of any door. Constructed from robust cast aluminum, the closer incorporates adjustable spring sizes 1-6, providing flexibility for various door weights, up to 250 lbs. This tri-packed unit accommodates regular, parallel, and top jamb mounting, making it suitable for a wide range of applications. The Norton 8501-SN-BSP is rigorously tested, ensuring a long lifespan of over 25 million cycles, making it an ideal choice for high-use environments. With features such as staked valves to prevent accidental adjustments and a proprietary lubricate for optimal performance, this door closer guarantees reliability and efficiency. The non-handed design allows for easy installation regardless of door orientation. Additional accessories, including mounting plates and brackets, further simplify the installation process. Certified to ANSI/BHMA A156.4, grade 1, and backed by a 30-year limited warranty, the Norton 8501-SN-BSP ADA Surface Door Closer is a reliable choice for both commercial and residential applications, ensuring safety and ease of use for all.

ADA Surface Door Closer, Adjustable Spring Sizes 1-6, Full Cover, Tri-Packed (Regular, Parallel, Top Jamb Mounting), UL, BSP Black Suede Powder Coat

The 8000 series is a multi-sized, surface closer offering a complete range of arms and a sleek, minimal design suited for moderate to high-traffic, architectural openings.

Features:

• Cast aluminum closer
• Constructed with robust materials and internal components
• Adjustable spring sizes 1-6
• One package covers regular, top jamb and parallel arm mounting
• Tri-packed
• Stringent testing supports a long-life of reliability
• Exceeds 25 million cycles
• Staking limits ability to accidentally back out the valve while adjusting closer
• 1-1/4" diameter piston
• Sleek, minimal design provides clean aesthetic
• Staked valves
• Arm configurations meet broad range of applications
• Non-handed
• Extensive offering of accessories to assist with the most difficult applications
• 2-1/8" projection (standard covers)
• Proprietary lubricate delivers optimal performance and efficiency
• Interior or exterior doors
• All standard arm applications allow doors to swing 180, conditions permitting
• Standard, separate and independent latch, sweep, and backcheck intensity valves
• Hold open, heavy-duty and low profile arms available
• Slide track - push or pull side mounting
• Mounting plates, drop plates, brackets available
• Fasteners: sleeve nuts & bolts, thru-bolt grommet nuts, Torx

Specifications:

• Closer Type: Surface
• Maximum Door Weight: 250 lbs
• Traffic Rating: Moderate traffic
• Warranty: 30-year limited warranty
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• 8501: Regular Arm
• Only pull side application where double lever arm is used
• Sufficient frame, door and/or ceiling clearance must be considered
• 8501: Parallel Arm
• Provides the most appealing appearance for a surface-mounted door closer with a double lever arm
• Very little or no hardware projecting beyond the frame face, when in closed position, in most situations
• 8501: Top Jamb
• Must be sufficient frame face and/or ceiling clearance for this application
• Requires a top rail on the door of just 2-1/4" (57mm)
• Provides the best door control for doors in exterior walls that swing out of a building
• 8501ST: Pull side slide track - provides the smoothest lines available in a surface mounted door closer Adjustable 85° to 110°
• 8581: Low Profile, Regular Arm
• Reduced height elbow joint and straight main arm
• Allows closer to be installed where there is as little as 1" of frame face or ceiling clearance

Finishes:

• 600 - Primed for painting
• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 619/US15 - Satin nickel plated, clear coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 693/SPBLK - Flat black painted
• 694 - Medium bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
