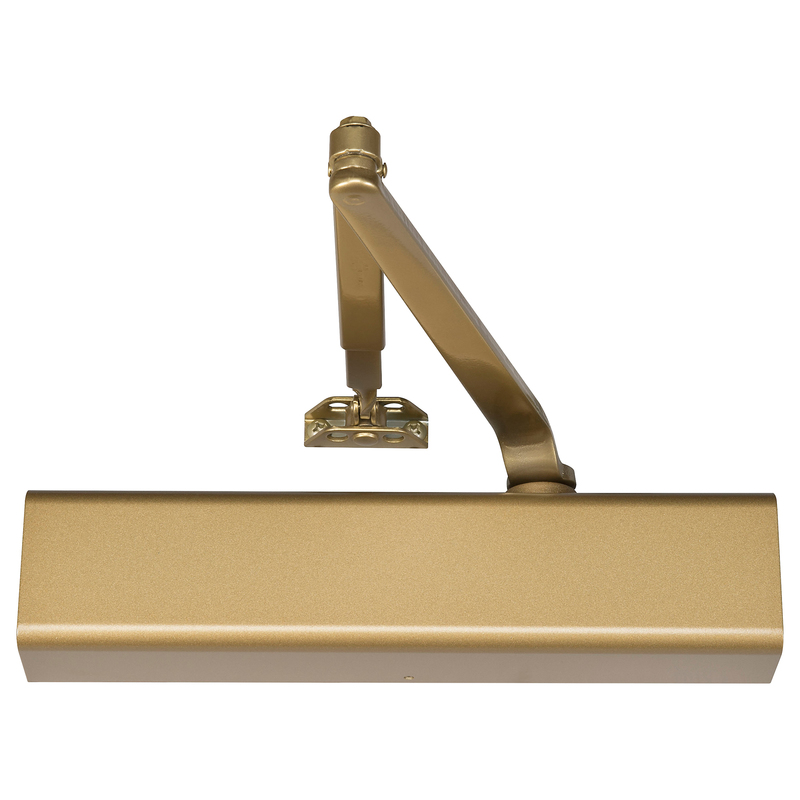

Norton Closers 8501696 Adjustable Surface Mount Door Closer with Full Cover and Sex Nuts in Gold Finish delivers exceptional performance and reliability for a variety of applications. Designed with a robust rack and pinion mechanism, this closer ensures smooth operation and longevity, exceeding an impressive 25 million cycles. The non-handed design allows for versatile installation, making it suitable for both left and right-hand openings. Crafted from durable cast aluminum, the closer features an adjustable spring size from 1 to 6, enabling precise control over the closing force to meet specific requirements. With staked valves and independent adjustments for latch, sweep, and backcheck intensity, this model provides enhanced control to accommodate various door sizes and weights. Measuring 2-7/8" x 13", the Norton 8501696 is easy to install with a 3/4" x 12" rectangular mounting hole pattern, suitable for pull side mounting. Additionally, it is UL/UL10C listed, ensuring compliance with safety standards. The limited 25-year warranty underscores the manufacturer's commitment to quality and durability. Elevate your door control solutions with the Norton 8501696, combining functionality with a sleek gold finish to complement any architectural design.
Adjustable Surface Mount Door Closer with Full Cover and Sex Nuts Gold Finish
Norton Door Controls offers a comprehensive line of door controls designed and manufactured to ensure superior performance and reliability. Norton Door Controls refined the rack and pinion closer and the concept of valve controlled backcheck for hydraulic door closers. Along the way there have been a variety of other innovations, including aluminum alloy body, narrow style, non-handed closers, adjustable backcheck, speed adjustments and special application arms.
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.4
Application: CM
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Category: Door Closers and Accessories
Clazz: NC
Closer Size: Adj. 1 to 6
Closer Type: Surface Mounted Closer
Cold Weather Fluid: Yes
Color: Gold
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cover: Plastic
Dimension: 2-7/8" x 13"
Finish: Gold
Finish Code: 696
Finish Description: Satin Brass Painted
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Regular
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: No
Installation: Commercial
Item Class Description: Adjustable Surface Mount Door Closer with Full Cover and Sex Nuts
Item Type Keyword: Closer
Limited Warranty: 25 Years
Manufacturer Warranty: Limited 25 Year Warranty
Material: Cast Aluminum
Mounting Group: Hydraulic
Mounting Hole Pattern: 3/4" x 12" Rectangular Mounting
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Height: 3.5"
Pack Height 2: 7.75"
Pack Length: 15.25"
Pack Length 2: 15.75"
Pack Qty: 1
Pack Volume: 333.59 in³
Pack Volume 2: 1556.3 in³
Pack Width: 6.25"
Pack Width 2: 12.75"
Series: 8501 Series
Ship Weight: 8 lbs.
Spring Size: Adjustable 1-6 Size
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Type: Surface
Ul Listing: UL 10C
Ul Listing Type: UL / UL10C Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
Upc: 049306092548
