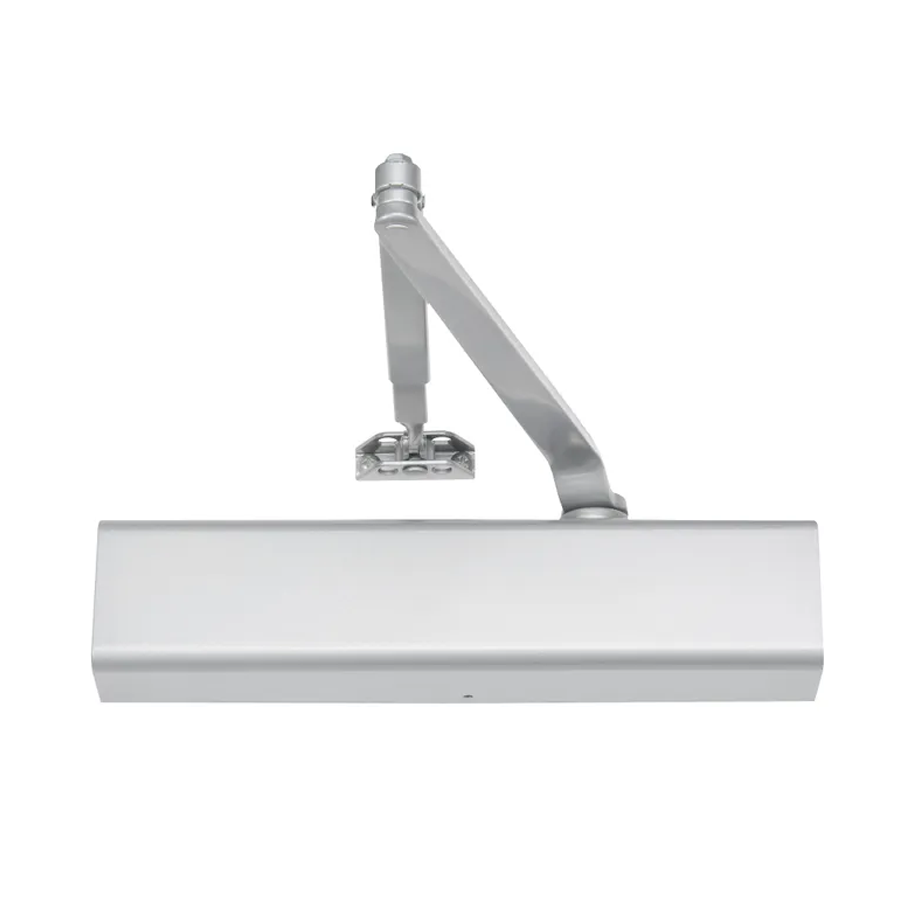

Norton 8501H-SN-689 ADA Hold Open Surface Door Closer is engineered for versatility and reliability in moderate to high-traffic environments. This surface-mounted closer features an adjustable spring size range of 1-6, making it adaptable to various door weights up to 250 lbs. Its robust cast aluminum construction ensures longevity, while stringent testing guarantees over 25 million cycles of dependable use. The tri-packed configuration offers flexibility for regular, parallel, and top jamb mounting, catering to diverse installation needs. With its sleek, minimal design, this door closer seamlessly integrates into any architectural setting, providing a clean aesthetic without compromising performance. The non-handed design allows for easy installation on both interior and exterior doors, and the staked valves prevent accidental adjustments during operation. Key features include independent latch, sweep, and backcheck intensity valves, along with the ability to swing doors 180 degrees when conditions permit. The proprietary lubricant used in this closer enhances efficiency and performance, ensuring smooth operation. Backed by a 30-year limited warranty and ANSI/BHMA A156.4, grade 1 certification, the Norton 8501H-SN-689 is an ideal choice for professionals seeking a durable and stylish solution for door control.

ADA Hold Open Surface Door Closer Adjustable Spring Sizes 1-6, Full Cover, Tri-Packed (Regular, Parallel, Top Jamb Mounting), UL, 689/SP28 Aluminum Powder Coat

The 8000 series is a multi-sized, surface closer offering a complete range of arms and a sleek, minimal design suited for moderate to high-traffic, architectural openings.

Features:

• Cast aluminum closer
• Constructed with robust materials and internal components
• Adjustable spring sizes 1-6
• One package covers regular, top jamb and parallel arm mounting
• Tri-packed
• Stringent testing supports a long-life of reliability
• Exceeds 25 million cycles
• Staking limits ability to accidentally back out the valve while adjusting closer
• 1-1/4" diameter piston
• Sleek, minimal design provides clean aesthetic
• Staked valves
• Arm configurations meet broad range of applications
• Non-handed
• Extensive offering of accessories to assist with the most difficult applications
• 2-1/8" projection (standard covers)
• Proprietary lubricate delivers optimal performance and efficiency
• Interior or exterior doors
• All standard arm applications allow doors to swing 180, conditions permitting
• Standard, separate and independent latch, sweep, and backcheck intensity valves
• Hold open, heavy-duty and low profile arms available
• Slide track - push or pull side mounting
• Mounting plates, drop plates, brackets available
• Fasteners: sleeve nuts & bolts, thru-bolt grommet nuts, Torx

Specifications:

• Closer Type: Surface
• Maximum Door Weight: 250 lbs
• Traffic Rating: Moderate traffic
• Warranty: 30-year limited warranty
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• 8501: Regular Arm
• Only pull side application where double lever arm is used
• Sufficient frame, door and/or ceiling clearance must be considered
• 8501: Parallel Arm
• Provides the most appealing appearance for a surface-mounted door closer with a double lever arm
• Very little or no hardware projecting beyond the frame face, when in closed position, in most situations
• 8501: Top Jamb
• Must be sufficient frame face and/or ceiling clearance for this application
• Requires a top rail on the door of just 2-1/4" (57mm)
• Provides the best door control for doors in exterior walls that swing out of a building
• 8501ST: Pull side slide track - provides the smoothest lines available in a surface mounted door closer Adjustable 85° to 110°
• 8581: Low Profile, Regular Arm
• Reduced height elbow joint and straight main arm
• Allows closer to be installed where there is as little as 1" of frame face or ceiling clearance

Finishes:

• 600 - Primed for painting
• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 619/US15 - Satin nickel plated, clear coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 693/SPBLK - Flat black painted
• 694 - Medium bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
