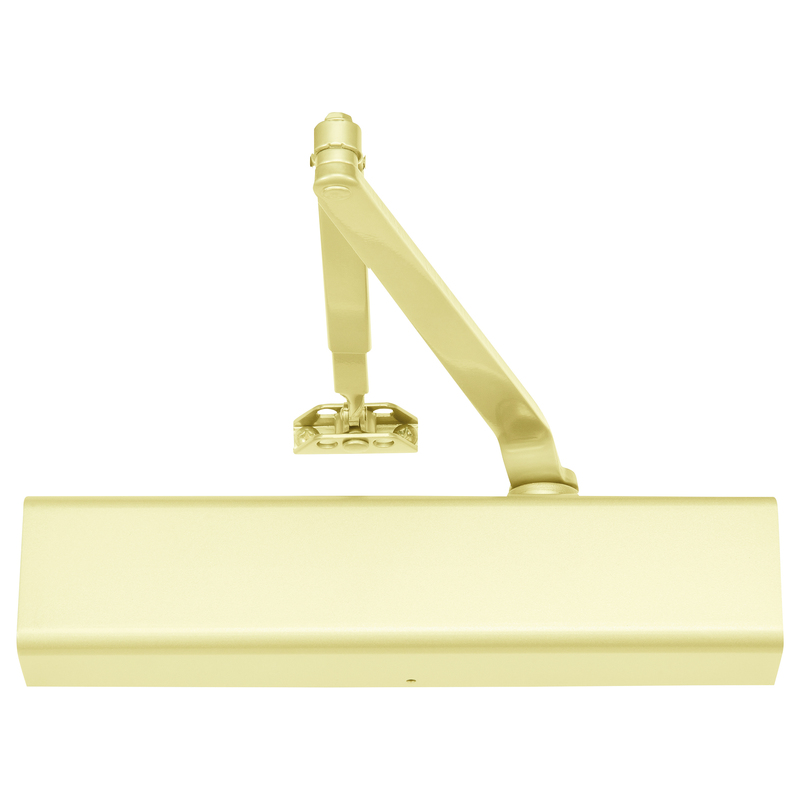

Norton 8501M 605 Grade 1 Door Closer Tri-Pack

Norton 8501M 605 Grade 1 Door Closer Tri-Pack offers a robust solution for both commercial and residential applications, ensuring reliability and durability with every use. This Grade 1 tri-mount door closer is designed for either push or pull side installation and is adjustable from size 1 to 6, making it versatile for various door configurations. The metal cover, finished in a polished brass (605/US3), adds an elegant touch while providing sturdy protection against wear. Engineered with a rack and pinion design and a cast aluminum body, the 8501M exceeds 10 million cycles, showcasing its long-lasting performance. The adjustable backcheck intensity and two non-critical valves allow for precise control over sweep and latch speeds, accommodating a wide range of door functionalities. Additionally, the closer fluid is specially formulated to operate in extreme temperatures, ranging from -40°F to high heat, ensuring consistent performance regardless of the environment. This non-handed closer is easy to install and meets ANSI A156.4 standards, making it compliant with ADA requirements. With a limited 25-year warranty, the Norton 8501M ensures both peace of mind and confidence in its enduring quality. Elevate your door hardware with this reliable solution that marries functionality and aesthetic appeal.

Grade 1 Door Closer Tri-Pack

Grade 1 Tri Mount Door Closer, Push or Pull Side, Regular, Adjustable Size 1 to 6, Metal Cover, Bright Brass Finish, Non-Handed

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

Architectural Tri-Style® door closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
