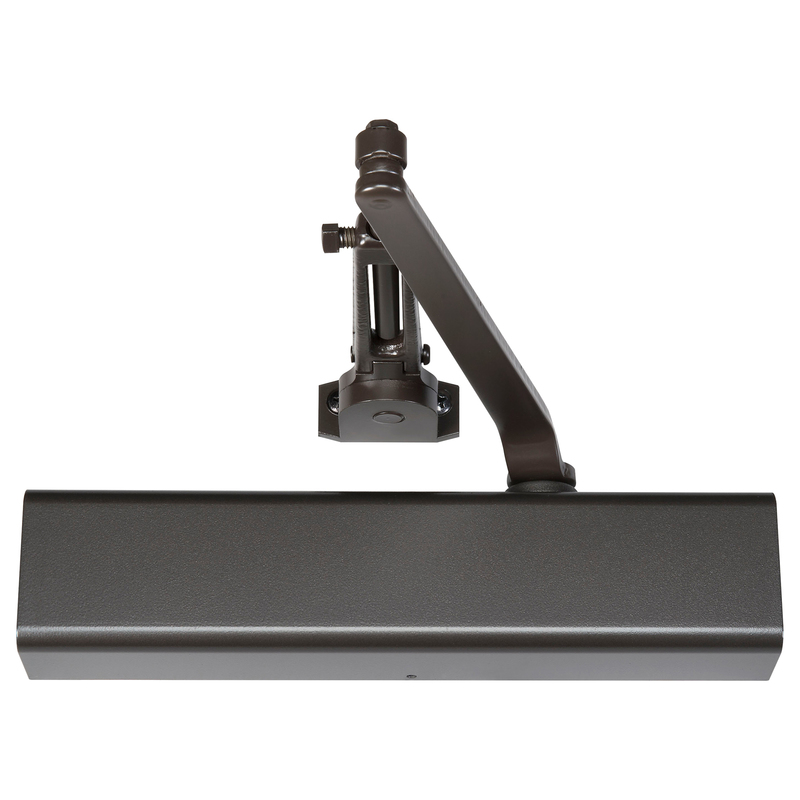

Norton 8501M 613E Grade 1 Door Closer Tri-Pack

Norton 8501M 613E Grade 1 Door Closer Tri-Pack delivers exceptional reliability and durability, making it a top choice for both commercial and residential applications. Designed to accommodate a range of door sizes, this Grade 1 tri-mount door closer features adjustable settings from size 1 to 6, allowing for precise control over door closure speed and intensity. Constructed with a cast aluminum body and equipped with staked valves, this door closer exceeds 10 million cycles, ensuring long-lasting performance. The adjustable backcheck intensity and multi-size spring power adjustment offer versatility to meet various installation needs. With a sleek metal cover finished in a dark oxidized satin bronze, it not only performs flawlessly but also enhances the aesthetic of any door. Certified for ADA compliance and UL listed for fire safety (3 hours), the Norton 8501M is trusted for its quality and safety credentials. Its non-handed design allows for flexible installation on push or pull sides, while the cold weather fluid ensures functionality in extreme temperatures, down to -40°F. Backed by a 25-year limited warranty, this door closer is an investment in both security and convenience. Experience the perfect blend of style and performance with the Norton 8501M.

Grade 1 Door Closer Tri-Pack

Grade 1 Tri Mount Door Closer, Push or Pull Side, Regular, Adjustable Size 1 to 6, Metal Cover, Dark Oxidized Satin Bronze Oil Rubbed Finish, Non-Handed

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

Architectural Tri-Style® door closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
