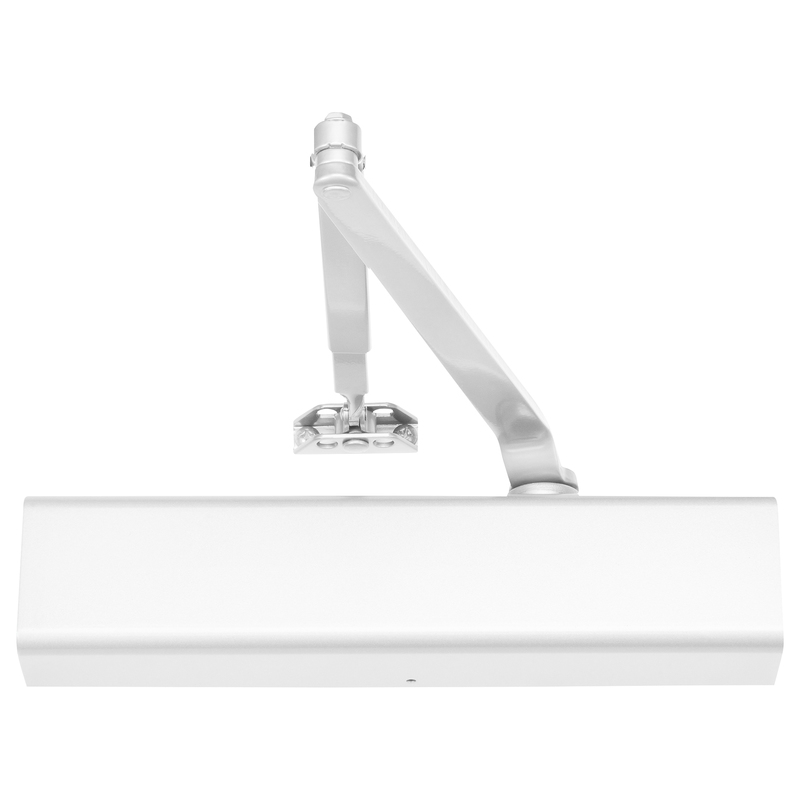

Norton 8501M 625 Grade 1 Door Closer Tri-Pack

Norton 8501M 625 Grade 1 Door Closer Tri-Pack delivers exceptional performance and durability for both commercial and residential applications. This Grade 1 tri-mount door closer is designed for push or pull side installation and features an adjustable size range from 1 to 6, ensuring optimal functionality for various door types. Constructed with a robust cast aluminum body and a bright chrome finish, the Norton 8501M not only meets aesthetic demands but also withstands high traffic usage, exceeding 10 million cycles. Its rack and pinion design guarantees smooth operation, while the non-handed feature allows for versatile installation on either right or left-hand doors. The adjustable backcheck intensity and independent sweep and latch speed, controlled by hex key valves, provide customized closing performance. Additionally, the closer operates effectively in extreme temperatures, from -40°F to high heat, thanks to its specially formulated closer fluid. With a 25-year limited warranty, this door closer is a reliable choice for environments requiring consistent performance and safety compliance, including ADA and ANSI A156.4 standards. Norton 8501M 625 is the ideal solution for professionals seeking a dependable and stylish door closer that meets rigorous demands.

Grade 1 Door Closer Tri-Pack

Grade 1 Tri Mount Door Closer, Push or Pull Side, Regular, Adjustable Size 1 to 6, Metal Cover, Bright Chrome Finish, Non-Handed

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

Architectural Tri-Style® door closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
