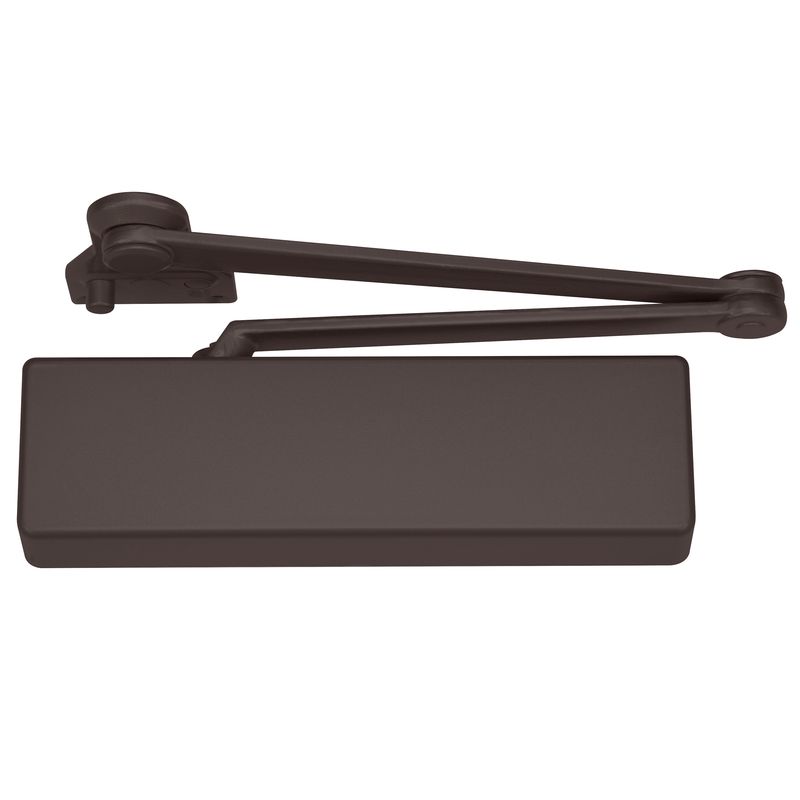

Norton CLP7500T 690 Grade 1 Door Closer

Norton CLP7500T 690 Grade 1 Door Closer delivers exceptional performance and reliability, making it an ideal choice for both interior and exterior doors in high-traffic environments. This heavy-duty closer features a parallel arm design with a T Turn hold open mechanism, ensuring ease of use while maintaining security. Its robust construction includes a cast aluminum body, and it is designed to withstand over 25 million cycles, guaranteeing long-lasting durability. Designed for versatility, the Norton CLP7500T is non-handed, allowing for flexible installation on doors of either hand. The closer is equipped with adjustable valves to independently regulate latch speed, sweep speed, and backcheck cushioning, which can be easily accessed via hex key adjustments. It also offers a multi-size spring power adjustment, accommodating sizes 1 through 6, making it suitable for a wide range of door applications. With a dark bronze painted finish and a plastic cover, this closer not only performs exceptionally but also adds a sleek look to any door. The Norton CLP7500T is UL 10C listed and ADA compliant, ensuring it meets stringent standards for safety and accessibility. Whether for commercial or institutional use, this door closer is a reliable choice for enhancing door functionality and security.

Grade 1 Door Closer

Grade 1 Closer Plus Parallel Arm T Turn Hold Open Door Closer, Push Side, Parallel Arm Heavy Duty, Size 1 to 6, Plastic Cover, Dark Bronze Painted Finish, Non-Handed

The 7500 Series Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability. The 7500 Series Door Closers exceed 25 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. They are standard with separate and independent, latch, sweep and backcheck intensity valves.

Institutional heavy-duty door closer.

The 7500 Series is an institutional Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy body.
• Closers shall be surface mounted and shall project no more that 2-3/16" (55mm) from the surface of the door.
• Closers shall be non-handed to permit installation on doors of either hand.
• Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have backcheck cushioning controlled by a hex key adjusted valve.
• Closers shall have backcheck position controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
• [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, brass or stainless steel material and all fasteners of stainless steel.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/–7-1/2% ) power adjustment.
• Environmental Product Declaration (EPD) certified
