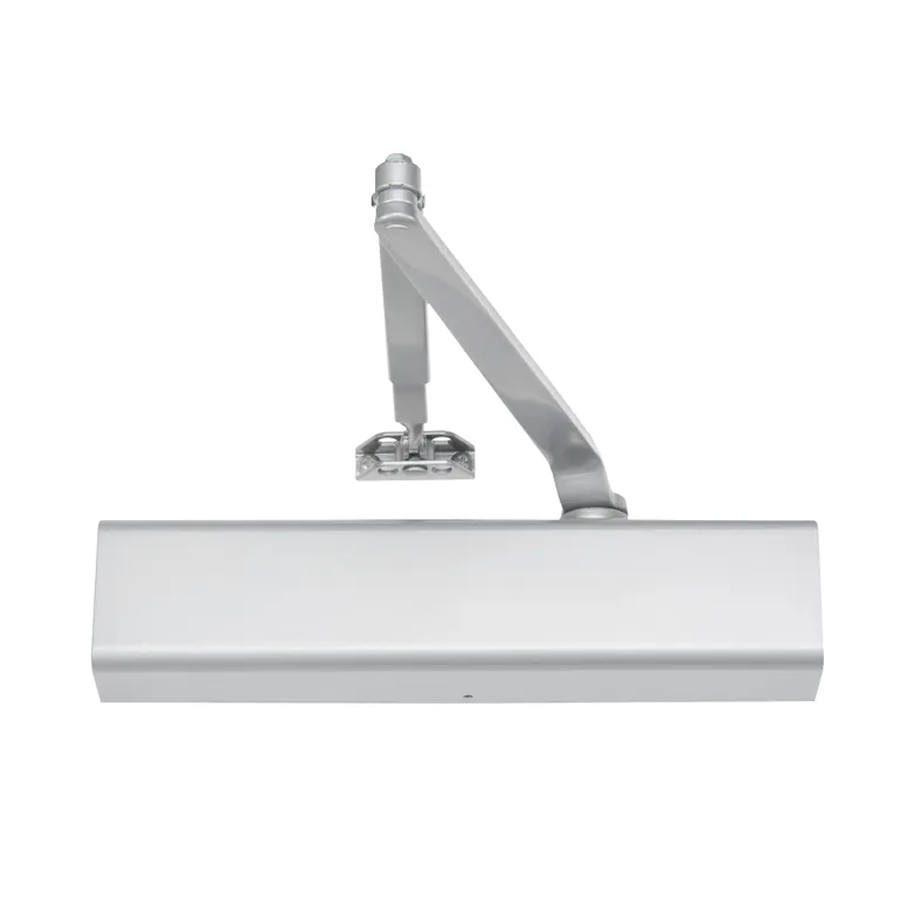

Norton CLP8501-SN-689 ADA Surface Door Closer offers a blend of functionality and aesthetics for your architectural openings. Designed for moderate to high-traffic environments, this heavy-duty non-hold open closer features adjustable spring sizes 1-6, ensuring optimal performance for doors weighing up to 250 lbs. Its full cover design and robust cast aluminum construction make it both durable and visually appealing. Equipped with a CloserPlus arm and a stop for parallel arm mounting, the CLP8501 is engineered for versatility with applications across regular, top jamb, and parallel arm installations. The tri-packed system allows for quick adaptability, while stringent testing guarantees reliability, exceeding 25 million cycles for longevity. The sleek, minimal design enhances the overall aesthetic without compromising on performance. The closer includes standard independent valves for latch, sweep, and backcheck intensity, allowing for tailored control over door operation. Non-handed and suitable for both interior and exterior doors, it accommodates a wide range of mounting options. With a 30-year limited warranty and compliance with ANSI/BHMA A156.4, grade 1 certification, the Norton CLP8501-SN-689 is a dependable choice for professionals seeking quality in door control solutions.

ADA Surface Door Closer, Adjustable Spring Sizes 1-6, Full Cover, Heavy Duty Non-Hold Open Closer Plus Arm with Stop for Parallel Arm Mounting, UL, 689/SP28 Aluminum Powder Coat

The 8000 series is a multi-sized, surface closer offering a complete range of arms and a sleek, minimal design suited for moderate to high-traffic, architectural openings.

Features:

• Cast aluminum closer
• Constructed with robust materials and internal components
• Adjustable spring sizes 1-6
• One package covers regular, top jamb and parallel arm mounting
• Tri-packed
• Stringent testing supports a long-life of reliability
• Exceeds 25 million cycles
• Staking limits ability to accidentally back out the valve while adjusting closer
• 1-1/4" diameter piston
• Sleek, minimal design provides clean aesthetic
• Staked valves
• Arm configurations meet broad range of applications
• Non-handed
• Extensive offering of accessories to assist with the most difficult applications
• 2-1/8" projection (standard covers)
• Proprietary lubricate delivers optimal performance and efficiency
• Interior or exterior doors
• All standard arm applications allow doors to swing 180, conditions permitting
• Standard, separate and independent latch, sweep, and backcheck intensity valves
• Hold open, heavy-duty and low profile arms available
• Slide track - push or pull side mounting
• Mounting plates, drop plates, brackets available
• Fasteners: sleeve nuts & bolts, thru-bolt grommet nuts, Torx

Specifications:

• Closer Type: Surface
• Maximum Door Weight: 250 lbs
• Traffic Rating: Moderate traffic
• Warranty: 30-year limited warranty
• Certifications: ANSI/BHMA A156.4, grade 1

Models:

• 8501: Regular Arm
• Only pull side application where double lever arm is used
• Sufficient frame, door and/or ceiling clearance must be considered
• 8501: Parallel Arm
• Provides the most appealing appearance for a surface-mounted door closer with a double lever arm
• Very little or no hardware projecting beyond the frame face, when in closed position, in most situations
• 8501: Top Jamb
• Must be sufficient frame face and/or ceiling clearance for this application
• Requires a top rail on the door of just 2-1/4" (57mm)
• Provides the best door control for doors in exterior walls that swing out of a building
• 8501ST: Pull side slide track - provides the smoothest lines available in a surface mounted door closer Adjustable 85° to 110°
• 8581: Low Profile, Regular Arm
• Reduced height elbow joint and straight main arm
• Allows closer to be installed where there is as little as 1" of frame face or ceiling clearance
• CLP8501: CloserPlus arm
• Enhanced variation of standard parallel arm assembly
• Intended for use in heavy traffic areas where auxiliary door stops are installed

Finishes:

• 600 - Primed for painting
• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 619/US15 - Satin nickel plated, clear coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• 689/SP28 - Aluminumpainted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 693/SPBLK - Flat black painted
• 694 - Medium bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
