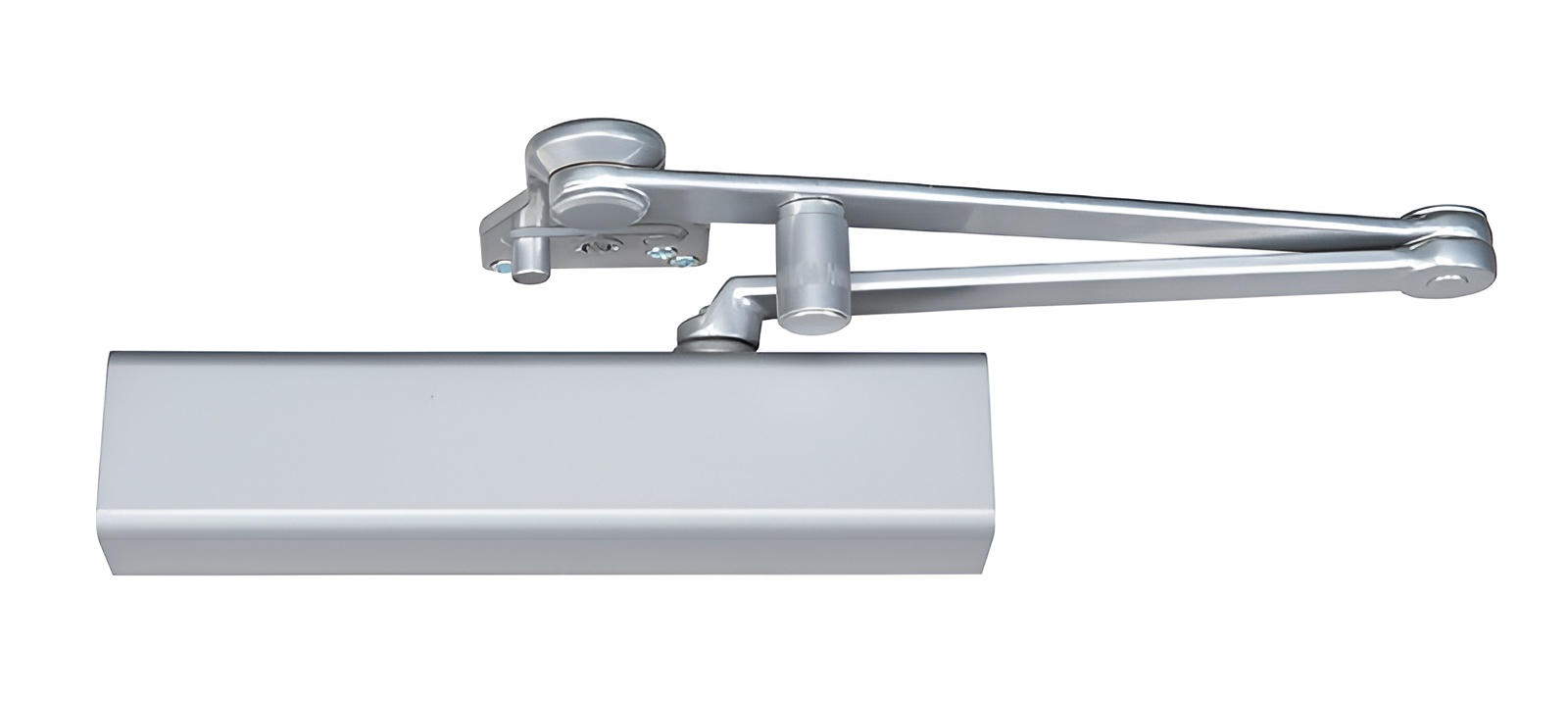

Norton Closers CLP8501T689 CloserPlus Spring Arm Adjustable Surface Mount Door Closer with Full Cover and Sex Nuts in an Aluminum Finish combines durability and functionality for high-traffic environments. Designed for efficiency, this hydraulic door closer features a robust rack and pinion design that exceeds 25 million cycles, ensuring long-lasting performance. The adjustable spring size (1-6) allows for tailored installation to accommodate various door weights, making it a versatile choice for both commercial and residential applications. This closer is non-handed, simplifying installation requirements, while the staked valves provide added reliability in operation. With standard, separate, and independent intensity valves for latch, sweep, and backcheck, users can easily customize the closing speed to enhance safety and convenience. The 2-7/8" x 13" dimensions and pull-side mounting style ensure a sleek profile that complements any door aesthetic. Crafted from cast aluminum, the CLP8501T689 not only boasts a modern aluminum finish but is also UL / UL10C listed, affirming its adherence to safety standards. Norton Closers backs this product with a limited 25-year warranty, underscoring their commitment to quality. Elevate your door control solutions with the reliability and performance of the Norton Closers CLP8501T689.
CloserPlus Spring Arm Adjustable Surface Mount Door Closer with Full Cover and Sex Nuts Aluminum Finish
Norton Door Controls offers a comprehensive line of door controls designed and manufactured to ensure superior performance and reliability. Norton Door Controls refined the rack and pinion closer and the concept of valve controlled backcheck for hydraulic door closers. Along the way there have been a variety of other innovations, including aluminum alloy body, narrow style, non-handed closers, adjustable backcheck, speed adjustments and special application arms.
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.4
Arm Type: Parallel Arm Heavy Duty
Baa Qualified: Yes
Back Check: Adjustable
Category: Door Closers and Accessories
Closer Size: Adj. 1 to 6
Closer Type: Surface Mounted Closer
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cover: Plastic
Degree Swing: 85¼ to 110¼
Dimension: 2-7/8" x 13"
Finish: Aluminum
Finish Code: 689
Finish Description: Aluminum Painted
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Function: Regular
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: Yes
Hold Open Type: T Turn
Installation: Commercial
Limited Warranty: 25 Years
Manufacturer Warranty: Limited 25 Year Warranty
Material: Cast Aluminum
Mounting Group: Hydraulic
Mounting Hole Pattern: 3/4" x 12" Rectangular Mounting
Mounting Location: Push Side
Mounting Style: Parallel Arm
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Height: 3.5"
Pack Height 2: 7.75"
Pack Length: 15.25"
Pack Length 2: 15.75"
Pack Qty: 1
Pack Volume: 333.59 in³
Pack Volume 2: 1556.3 in³
Pack Width: 6.25"
Pack Width 2: 12.75"
Series: 8501 Series
Ship Weight: 9 lbs.
Spring Size: Adjustable 1-6 Size
Stop: Positive Stop
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Type: Surface
Ul Listing: UL 10C
Ul Listing Type: UL / UL10C Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
