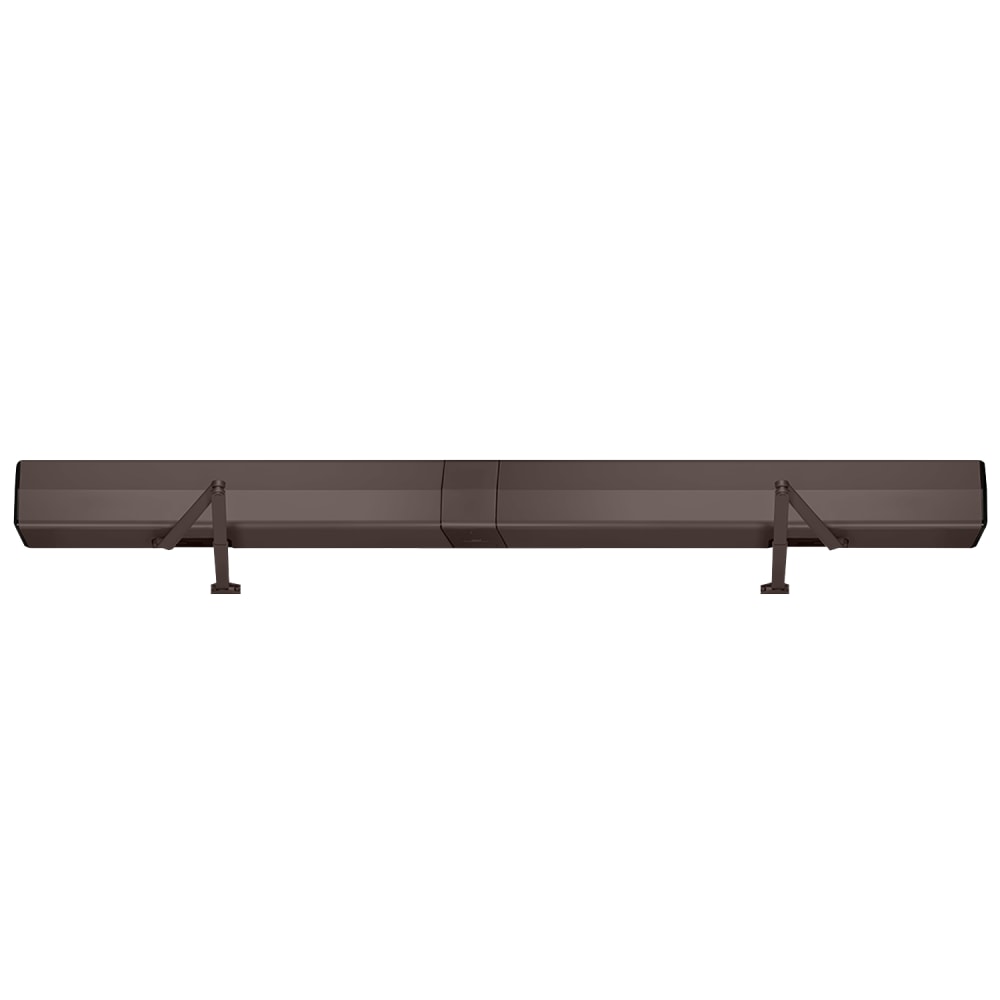

Norton D6021-36DRF 690 Low Energy Operator, Push Side is a robust electrohydraulic double door operator designed for high-traffic environments. This low energy surface-mounted unit features a 36" header and is suitable for a pair of 36" doors, providing reliable and efficient door control. With its dark bronze painted finish, it seamlessly blends into various architectural styles while ensuring durability. Engineered for both push and pull side mounting, the D6021 offers exceptional versatility. It includes advanced features such as an obstruction detection system that reacts to blockages during both opening and closing cycles, enhancing user safety. The operator's Push and Go selector allows easy manual activation, automatically opening the door to its full position, while the LCD screen facilitates straightforward adjustments and monitoring of operating settings. Designed for commercial applications like hospitals, office buildings, and sports arenas, it operates on a 24V power supply and supports various activation methods, including push buttons and radio frequency devices. The operator also features adjustable hold open and delay settings, as well as data collection for maintenance purposes. Backed by a two-year limited warranty, the Norton D6021 is a reliable choice for enhancing accessibility and convenience in any facility.

Low Energy Operator, Push Side

Low Energy Surface Mounted Electrohydraulic Double Door Operator, 36" Header, Regular, Push Side Mounted, Top Jamb, Pair of 36" Doors, Drop Plate, Radio Frequency Unit, Up to 110 Deg. Swing, Dark Bronze Painted Finish

The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the unit´s high level of versatility allows for seamless integration with a multitude of facilities and systems.

The 6000 Series combines intelligence, reliability and superior control in one package.

Designed for moderate to high traffic applications, this operator has a two-piece sub-assembly for easy installation and LCD screen for clear and accurate read-out of operating settings. Available for push or pull side mounting, the 6000 Series can be operated manually or activated via wall switches or radio frequency devices. This reliable unit ensures consistent opening and closing based on dual mode, electrohydraulic technology and is ideal for hospitals, office buildings, sports arenas or government facilities.

Functions:

• Push and Go selector
  • As the door is manually opened, the operator "senses" movement and opens door to the full-open position
• Open/Close obstruction detection
  • Open: Door closes if it hits an obstruction while opening
  • Close: Door re-opens (once) if it hits an obstruction while closing – if the door hits the obstruction again, the door will rest against the obstruction until it is removed
• Motor startup delay adjustment
  • Delays operator opening
• Vestibule delay adjustment
• Hold open delay adjustment
• Single Pole Double Throw (SPDT) relay output
  • SPDT relay output time adjustment
  • SPDT alarm output
• Blow open for smoke ventilation
• Presence detector input
• Selector mode switch
  • Off – Disables signal inputs except blow open
  • On – Activates signal inputs
  • Infinite Hold Open - Door will hold open at set position until power is turned off

Features:

• Push or pull side mounting
• Non-handed
• 1.3A onboard power supply
• Activated by push button, handsfree and RF devices
• Infinite hold open
• Maximum door size 4'0" x 8'0", 250 lbs
• Push and Go opens door to full-open position upon manual activation
• Obstruction Detection on both open and close cycle
• Operates as a mechanical surface closer when power is off
• On board electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
• 2 year limited warranty
