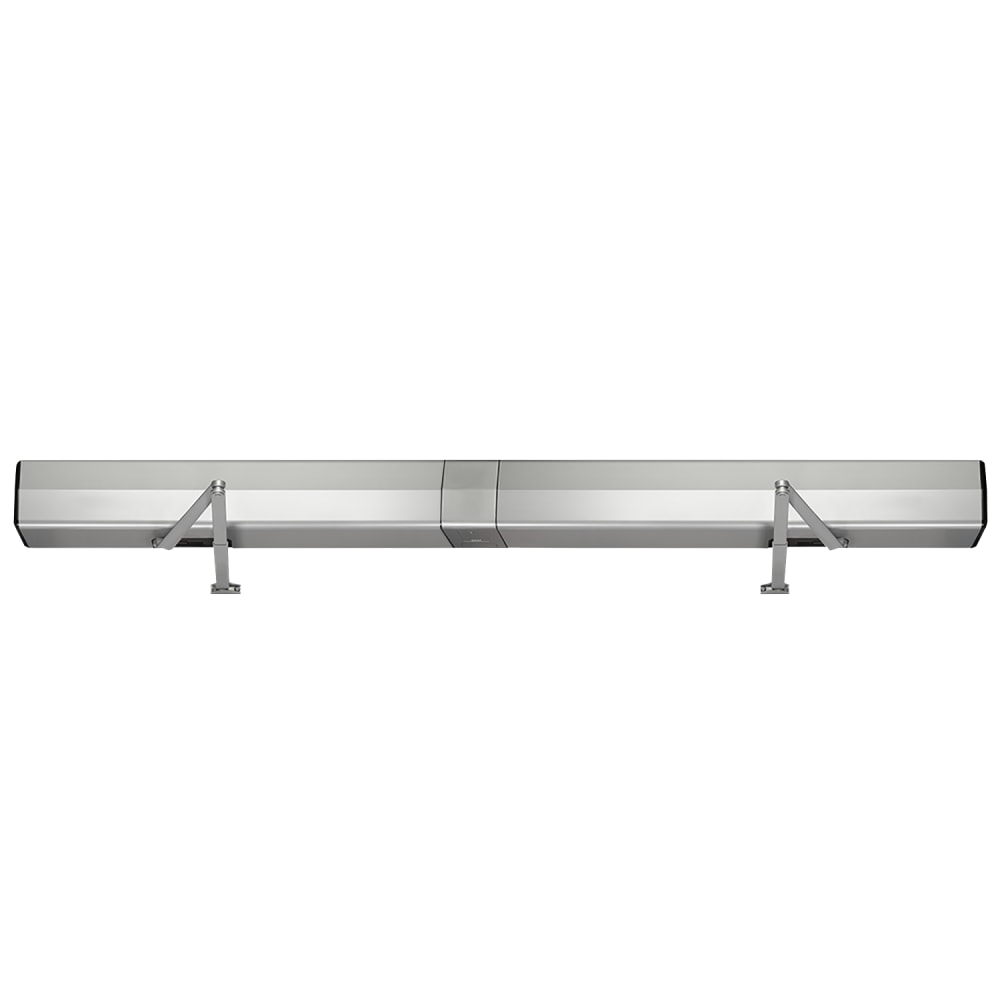

Norton D6061-36D 689 Low Energy Push Side OperatorNorton D6061-36D 689 Low Energy Operator, Push Side offers a robust solution for high-use environments, designed specifically for double-leaf doors. This low energy, surface-mounted electrohydraulic operator is ideal for applications in hospitals, office buildings, and government facilities, where accessibility and ease of use are paramount. Featuring a heavy-duty, double lever arm, this operator enables push side mounting with a top jamb design, accommodating pairs of 36" doors and door weights up to 254 lbs. The advanced features include a Push and Go selector that intuitively opens the door to the full position upon manual activation, as well as comprehensive obstruction detection during both opening and closing cycles, enhancing user safety. The Norton D6061-36D is equipped with an LCD screen for easy adjustments and monitoring of operating settings, ensuring seamless integration into various setups. It supports multiple activation methods, including wall switches and RF devices, and operates as a mechanical closer when powered off. With built-in intelligence and a 2-year limited warranty, this operator not only optimizes door control but also provides reliable performance for moderate to high traffic applications.
Low Energy Operator, Push Side
Low Energy Surface Mounted Electrohydraulic Double Door Operator, Double Lever Arm Heavy Duty, Push Side Mounted, Top Jamb, Pair of 36" Doors, Drop Plate, 2-1/4" - 4-3/4" Reveal, 85 Deg. - 100 Deg. Swing, Aluminum Painted Finish
The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the unitâôs high level of versatility allows for seamless integration with a multitude of facilities and systems.
The 6000 Series combines intelligence, reliability and superior control in one package.
Designed for moderate to high traffic applications, this operator has a two-piece sub-assembly for easy installation and LCD screen for clear and accurate read-out of operating settings. Available for push or pull side mounting, the 6000 Series can be operated manually or activated via wall switches or radio frequency devices. This reliable unit ensures consistent opening and closing based on dual mode, electrohydraulic technology and is ideal for hospitals, office buildings, sports arenas or government facilities.
Functions:
- Push and Go selector
- As the door is manually opened, the operator "senses" movement and opens door to the full-open position
- Open/Close obstruction detection
- Open: Door closes if it hits an obstruction while opening
- Close: Door re-opens (once) if it hits an obstruction while closing – if the door hits the obstruction again, the door will rest against the obstruction until it is removed
- Motor startup delay adjustment
- Vestibule delay adjustment
- Hold open delay adjustment
- Single Pole Double Throw (SPDT) relay output
- SPDT relay output time adjustment
- SPDT alarm output
- Blow open for smoke ventilation
- Presence detector input
- Selector mode switch
- Off – Disables signal inputs except blow open
- On – Activates signal inputs
- Infinite Hold Open - Door will hold open at set position until power is turned off
Features:
- Push or pull side mounting
- Non-handed
- 1.3A onboard power supply
- Activated by push button, handsfree and RF devices
- Infinite hold open
- Maximum door size 4'0" x 8'0", 250 lbs
- Push and Go opens door to full-open position upon manual activation
- Obstruction Detection on both open and close cycle
- Operates as a mechanical surface closer when power is off
- On board electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
- 2 year limited warranty
Attributes
Accessible: Yes
Ada Compliance: Yes
Arm Type: Double Lever Arm, Heavy Duty
Baa Qualified: Yes
Back Check: Adjustable
Commercial Residential: Commercial
Country of origin: USA
Cover: Full
Degree Hold Open: Adjustable
Degree Swing: 85-100 Deg.
Delay: Yes
Door Size: Pair of 36" Doors
Door Weight: 254 lbs. Push, 198 lbs. Pull
Drop Plate: Available
Finish: 689/US28
Finish Family: Matte Silver
Hold Open Type: Electric
Installation: Commercial
Limited Warranty: 2 Years
Mounting Group: Electrohydraulic
Mounting Location: Push Side
Mounting Style: Top Jamb
Origin: USA
Pack Height: 4"
Pack Length: 42"
Pack Qty: 1
Pack Volume: 2184 in³
Pack Width: 13"
Reveal Size: 2-1/4" to 4-3/4"
Series: 6000 Series Operators
Ship Weight: 76 lbs.
Subtype: Door Operators
Type: Surface
Unit of Measure: Each
Upc: 49306040976
Voltage: 24V
