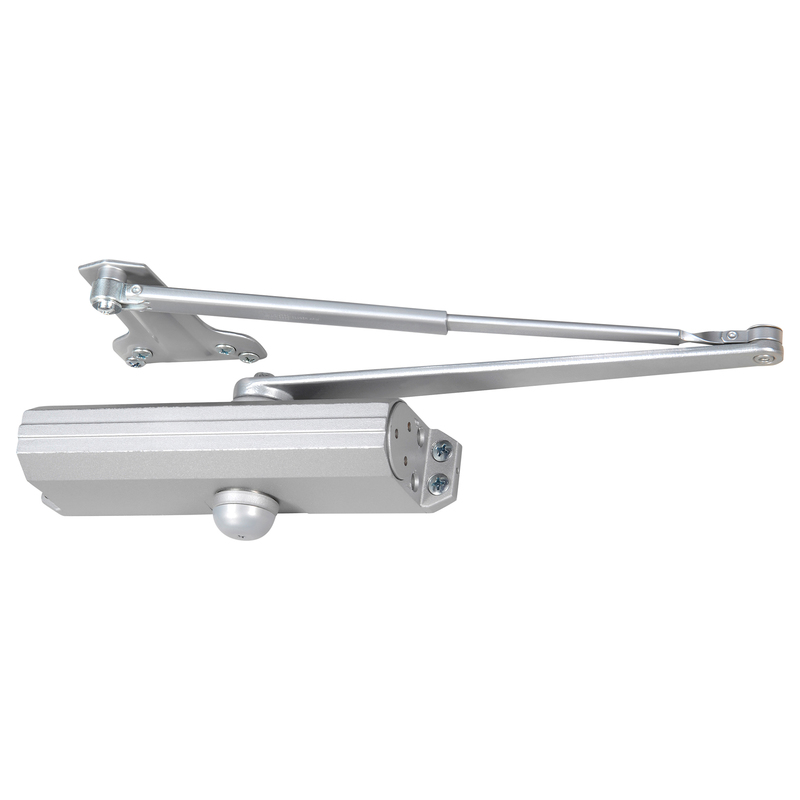

Norton P1681 689 Grade 1 Door Closer

Norton P1681 689 Grade 1 Door Closer is expertly crafted to meet the demands of both commercial and residential settings. This Grade 1 parallel arm surface closer features a push side installation and a low profile double lever arm design, allowing for a smooth 180-degree swing. With adjustable sizing from 1 to 6, it accommodates a variety of door weights, supporting up to 250 lbs. Constructed from heavy-duty cast aluminum, the Norton P1681 ensures longevity and resilience, making it a trusted choice among building professionals. The closer boasts independent sweep, latch, and back-check intensity valves, providing precise control over door operation. Its non-handed design simplifies installation, while the quick-adjust slide arm allows for efficient adjustments in the field. This model is ideal for aluminum storefront doors and other medium traffic applications, offering both performance and reliability. Certified to ANSI/BHMA A156.4, Grade 1, it also features a fire rating of 3 hours, ensuring compliance with safety standards. With a matte silver finish, the Norton P1681 blends seamlessly into any environment. Choose this door closer for a dependable, high-quality solution that stands the test of time.

Grade 1 Door Closer

Grade 1 Parallel Arm Surface Closer, Push Side, Double Lever Arm Low Profile, 180 Deg. Swing, Adjustable Size 1-6, Aluminum Painted Finish, Non-Handed

The Norton 1600 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition. The 1600 Series Door Closers exceed 12 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed.

Fully adjustable door closer for aluminum storefronts and other medium traffic applications.

Norton's 1601 Series door closers offer time-tested quality, performance and reliability. A long-standing staple in the industry, these Grade 1 closers are designed for interior or exterior doors.

Features:

• Heavy duty, one-piece cast aluminum body
• Available adjustable 1-6 and fixed spring sizes 3 and 4 units
• Full variety of arms available as hold open or non- hold open
• Maximum Degree of Swing: 180°, trim permitting
• Non-handed
• 2-7/8" projection
• Plastic cover optional

Benefits:

• Aluminum alloy closer body provides for long life
• Independent sweep, latch and back-check intensity valves ensure positive control
• Wide variety of arms and applications for most any environment
• Features a quick-adjust slide arm for quick installation and adjustment

Resources

• 1600 Closer Exceeds 12 Million Cycles
• 1600 Delayed Action Adjustment Instruction Sheet
• 1600 Series Door Closer - Environmental Product Declaration (EPD)
• 1600 Surface Closer
• 1600BC Series Closers;1601 Series Closers Cut Sheet
• 1600BC Tri-Style
• 1600BCH Tri-Style
• 1600SS, Corrosion Resistant, Non-Hold Open Only
• Norton Rixson 1600 Series Sell Sheet
• PR1600BC, Parallel Rigid Arm, Non-Hold Open or Hold Open
• UNI1600BC, Unitrol
• UNIJ1600BC, Unitrol
