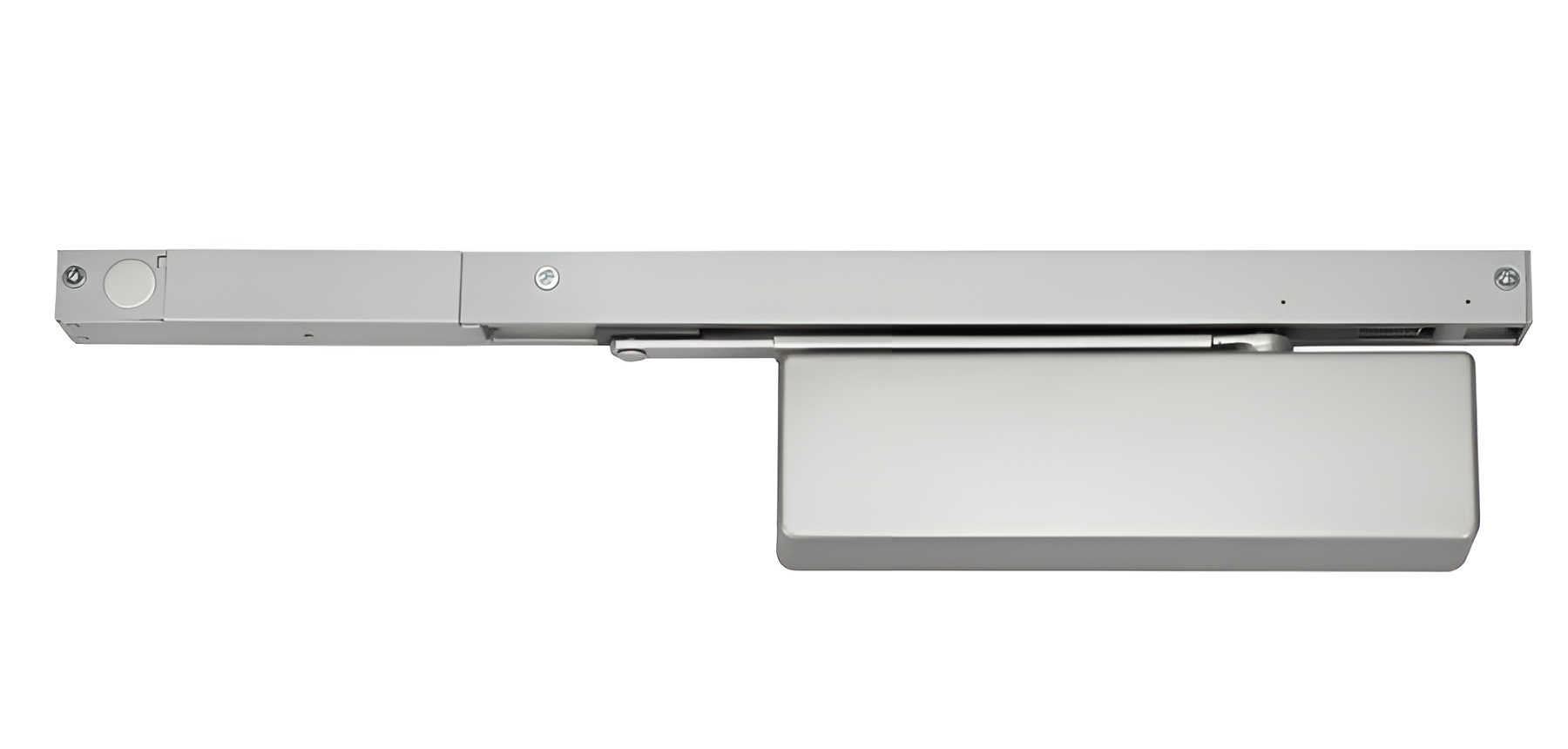

Norton P7705PTS689 Power Track Closer Holder, Stop Side, 24V, Aluminum Powder Coat

Norton P7705PTS689 Power Track Closer Holder Support Unit offers a sophisticated solution for managing door operations while ensuring safety and reliability. Designed to combine the functionality of a single point electromechanical door holder with the durability of the 7700 series door closer, this unit is equipped with an arm slide and a solenoid-operated hold-open mechanism. One of the standout features of this closer is its selective single-point hold open, which allows for tailored door management in various settings. The fixed spring size 5 ensures consistent performance, while the standard independent valves for latch, sweep, and backcheck intensity provide customizable control. Its spring-loaded buffer block prevents over-travel of the arm slide, delivering a cushioned dead stop at the point of hold open. The Norton P7705PTS689 is ideal for low ceiling clearance applications and can be mounted on the push or pull side of the door. It operates on 24VDC and is fail-safe, de-energizing in case of power failure. Its non-handed design allows for flexible installation based on door angles, making it a versatile choice for any professional project. With a 2-year limited warranty and ANSI/BHMA A156.15 certification, this product promises reliability and peace of mind in every installation.

Power Track Closer Holder Support Unit, Stop Side, 24V, 689/SP28 Aluminum Powder Coat

The 7700 series power track closer/holder combines the functionality of a single point electromechanical door holder with the proven reliability of a 7700 series door closer. The track assembly contains an arm slide and solenoid operated hold open mechanism.

Features:

• Selective single-point hold open
• Fixed spring size 5
• Push or pull side mounting (closer mounted on door)
• Standard separate and independent latch, sweep, and backcheck intensity valves
• Spring loaded buffer block at the point of hold open prevents over travel of the arm slide and provides a cushioned dead stop
• Additional floor or wall stop is recommended
• Doors automatically close if activated by fire alarm
• Voltage: 24VDC or 120VAC
• Non-handed
• Installation based on the door angle needed
• Fail safe: solenoid will de-energize in the event of power failure
• Ideal for low ceiling clearance applications
• Concealed or surface wiring

Specifications:

• Closer Type: Electromechanical
• Handing: Handed
• Warranty: 2-year limited warranty
• Certifications: ANSI/BHMA A156.15

Finishes:

• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 689/SP28 - Aluminum painted
• 690/US20 - Dark bronze painted
• 691/US10 - Light bronze painted
• 693/SPBLK - Flat black painted
• 694 - Medium bronze painted
• 696/US4 - Satin brass painted
• BSP - Black suede powder coat
• WSP - White suede powder coat
