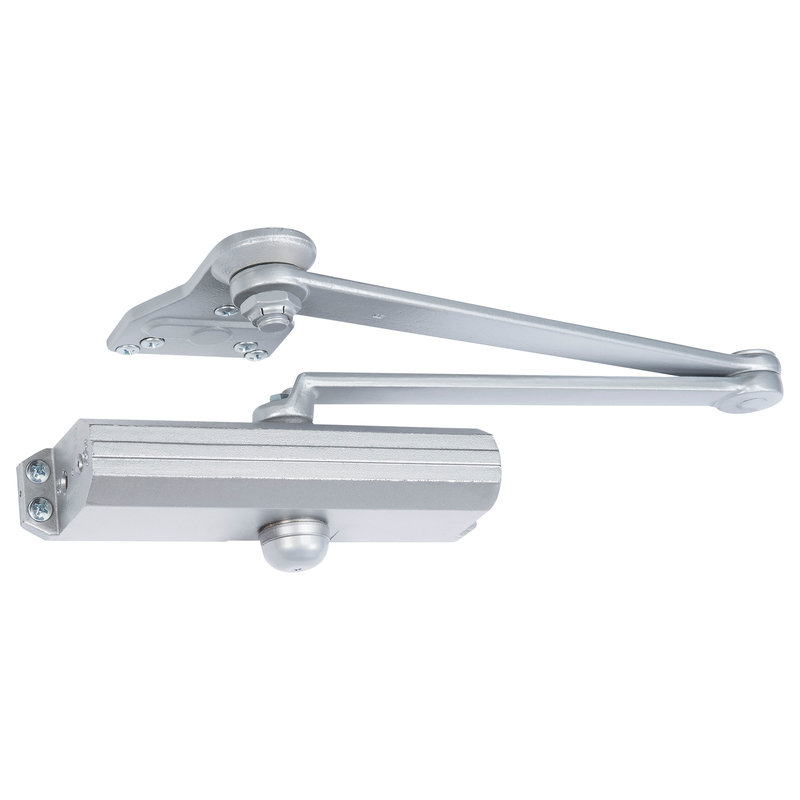

Norton PR1601H RH 689 Grade 1 Door Closer

Norton PR1601H RH 689 Grade 1 Door Closer is a robust solution for ensuring reliable door functionality in both commercial and residential settings. Designed with a Grade 1 parallel arm rigid surface closer, this door closer is tailored for push-side installation and features friction hold capability, allowing for an adjustable swing range of 85 to 180 degrees. Its versatile adjustable size accommodates door weights up to 250 lbs, making it suitable for various applications, including aluminum storefronts. Crafted from a heavy-duty, one-piece cast aluminum body, the Norton PR1601H promises durability and long-lasting performance. Its independent sweep, latch, and back-check intensity valves provide precise control over door motion, ensuring safety and efficiency. This model offers a quick-adjust slide arm for hassle-free installation and adjustment, along with a variety of arm configurations, including hold open and non-hold open options. With ANSI/BHMA A156.4 Grade 1 certification, the Norton 1601 Series exemplifies time-tested quality and reliability. This door closer not only meets rigorous performance standards but also enhances the aesthetic of your space with its sleek, matte silver finish. Enjoy peace of mind with a 15-year limited warranty, underscoring its lasting value and performance.

Grade 1 Door Closer

Grade 1 Parallel Arm Rigid Surface Closer, Push Side, Friction Hold, 85 to 180 Deg. Swing, Adjustable Size 1-6, Aluminum Painted Finish, Right-Handed

The Norton 1600 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition. The 1600 Series Door Closers exceed 12 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed.

Fully adjustable door closer for aluminum storefronts and other medium traffic applications.

Norton's 1601 Series door closers offer time-tested quality, performance and reliability. A long-standing staple in the industry, these Grade 1 closers are designed for interior or exterior doors.

Features:

• Heavy duty, one-piece cast aluminum body
• Available adjustable 1-6 and fixed spring sizes 3 and 4 units
• Full variety of arms available as hold open or non- hold open
• Maximum Degree of Swing: 180°, trim permitting
• Non-handed
• 2-7/8" projection
• Plastic cover optional

Benefits:

• Aluminum alloy closer body provides for long life
• Independent sweep, latch and back-check intensity valves ensure positive control
• Wide variety of arms and applications for most any environment
• Features a quick-adjust slide arm for quick installation and adjustment

Resources

• 1600 Closer Exceeds 12 Million Cycles
• 1600 Delayed Action Adjustment Instruction Sheet
• 1600 Series Door Closer - Environmental Product Declaration (EPD)
• 1600 Surface Closer
• 1600BC Series Closers;1601 Series Closers Cut Sheet
• 1600BC Tri-Style
• 1600BCH Tri-Style
• 1600SS, Corrosion Resistant, Non-Hold Open Only
• Norton Rixson 1600 Series Sell Sheet
• PR1600BC, Parallel Rigid Arm, Non-Hold Open or Hold Open
• UNI1600BC, Unitrol
• UNIJ1600BC, Unitrol
