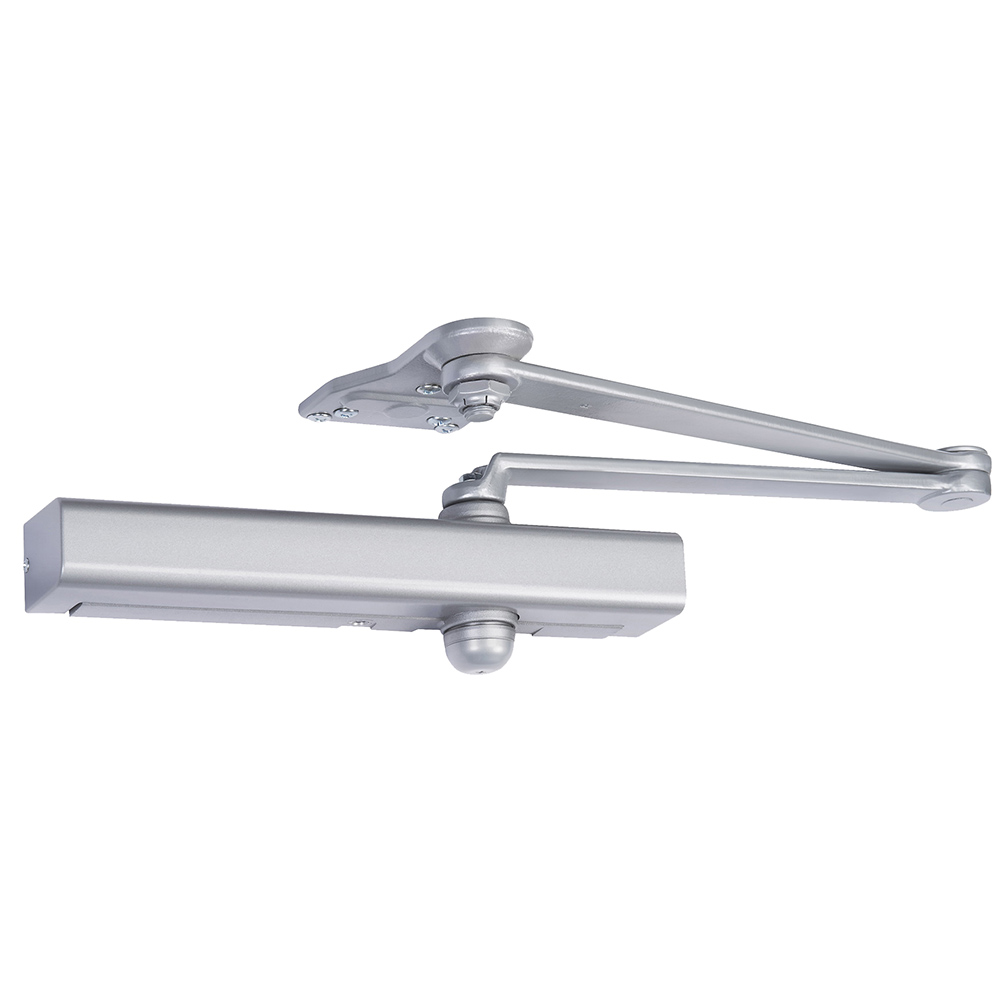

Norton PR8301H LH 689 Grade 1 Door Closer

Norton PR8301H LH 689 Grade 1 Door Closer is engineered to provide exceptional performance and reliability for both commercial and residential applications. This Grade 1 surface closer features a hydraulic parallel arm design that allows for smooth operation while ensuring safety and ease of use. The adjustable backcheck and friction hold open function provide added convenience, allowing doors to remain open at desired angles. Designed to withstand the rigors of high-traffic environments, the PR8301H is capable of exceeding 10 million cycles, thanks to its robust rack and pinion mechanism and cast aluminum body. This closer accommodates a range of door sizes from 1 to 6, adapting to various installation needs with ease. Its non-handed design allows for flexible installation on left or right-handed doors. The closer features a slim-line plastic cover that complements its matte silver finish (689/US28), enhancing its aesthetic appeal. With cold weather fluid and adjustable valve settings for sweep and latch speeds, this door closer performs reliably in extreme temperatures, from -40°F to high heat. Backed by a 25-year limited warranty, the Norton PR8301H ensures long-lasting durability and peace of mind for building professionals and homeowners alike.

Grade 1 Door Closer

Grade 1 Surface Closer, Hydraulic Parallel Arm Push Side Mounting, Parallel Arm Rigid, Friction Hold Open, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Aluminum Painted Finish, Left Hand

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.

With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, the 8000 Series closer can meet virtually any application challenge.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand.
• Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
• **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
• Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
