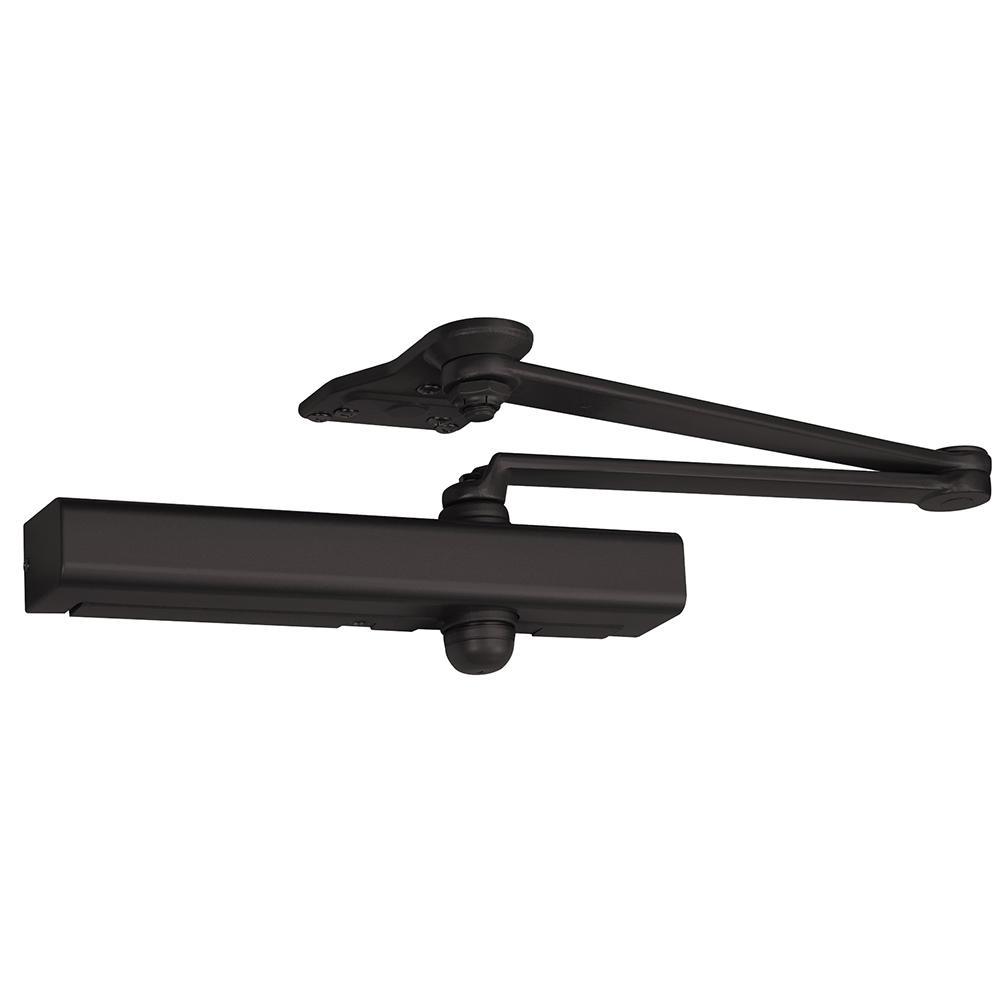

Norton PR8301H LH 690 Grade 1 Door Closer

Norton PR8301H LH 690 Grade 1 Door Closer combines functionality with durability, making it an ideal choice for both commercial and residential applications. This Grade 1 surface closer features a hydraulic parallel arm design and is mounted on the push side, ensuring smooth operation and reliability. The adjustable backcheck allows for customized door control, while the friction hold open feature provides convenience in high-traffic areas. Designed for versatility, this closer accommodates door sizes ranging from 1 to 6, making it suitable for various door types. Its robust construction includes a cast aluminum body and staked valves, ensuring longevity with over 10 million cycles of use. The closer's slim plastic cover enhances its aesthetic appeal while maintaining a profile that projects no more than 2-1/8" from the door surface. Operating effectively in temperatures as low as -40°F, the Norton PR8301H is equipped with high-performance closer fluid that contains lubricity and anti-oxidation agents. This door closer is compliant with ADA and ANSI A156.4 standards, making it a reliable choice for accessibility and safety. With a 25-year limited warranty, you can trust in its lasting performance and quality.

Grade 1 Door Closer

Grade 1 Surface Closer, Hydraulic Parallel Arm Push Side Mounting, Parallel Arm Rigid, Friction Hold Open, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Dark Bronze Painted Finish, Left Hand

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.

With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, the 8000 Series closer can meet virtually any application challenge.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand.
• Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
• **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
• Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
