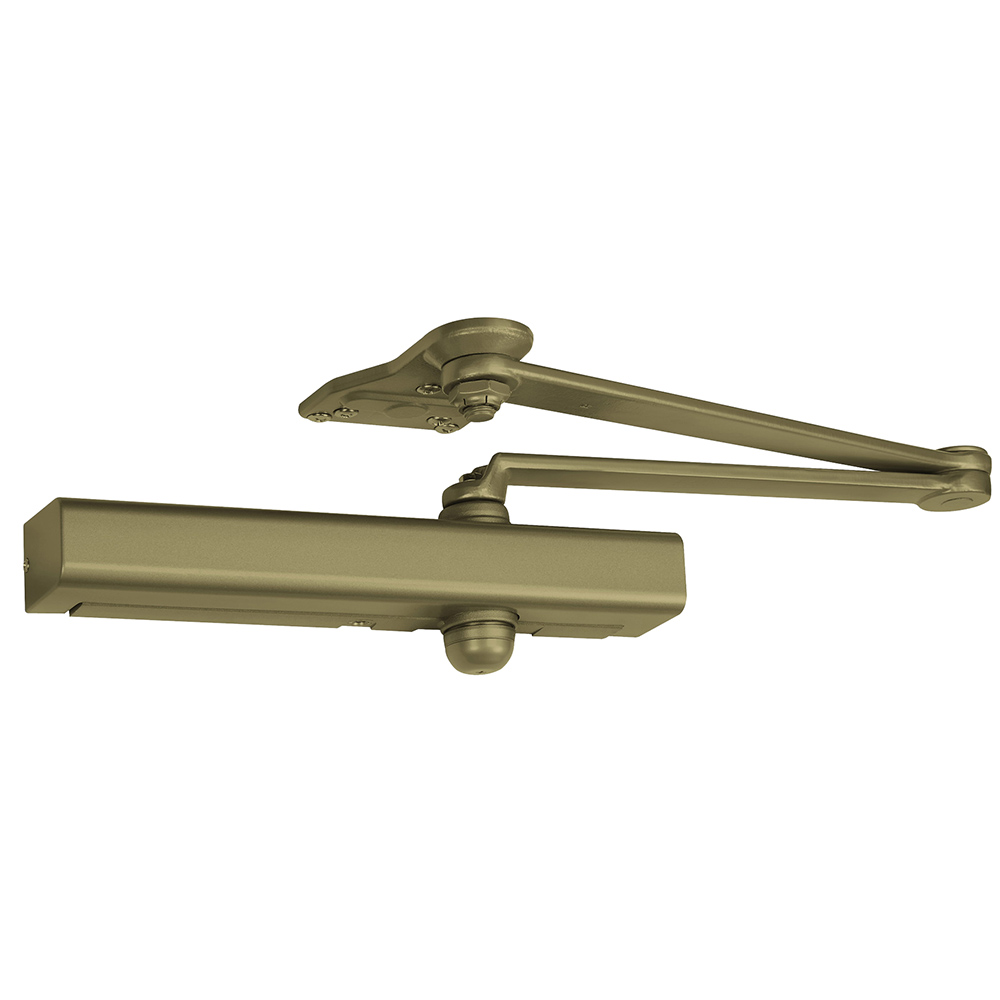

Norton PR8301H LH 696 Grade 1 Door Closer

Norton PR8301H LH 696 Grade 1 Door Closer offers an exceptional combination of reliability and aesthetic appeal, making it an ideal choice for both commercial and residential applications. This Grade 1 surface closer features a hydraulic parallel arm mounting system that ensures smooth operation and durability, capable of withstanding over 10 million cycles. Its adjustable backcheck helps to control the intensity of door closing, while the friction hold-open feature allows for convenient door management. Designed for left-handed doors, the Norton PR8301H accommodates a range of door sizes with its multi-size spring power adjustment, allowing for settings from size 1 to 6. The closer’s slim-line plastic cover not only enhances its appearance but also protects its internal mechanisms. With a cast aluminum alloy shell and a rack-and-pinion design, this closer operates seamlessly in temperatures ranging from -40°F to high heat, ensuring consistent performance regardless of weather conditions. Furthermore, the closer is ADA compliant and features hex key adjustable valves for independent regulation of sweep and latch speeds. With a limited 25-year warranty, the Norton PR8301H LH 696 Door Closer stands out as a durable and efficient solution for your door control needs.

Grade 1 Door Closer

Grade 1 Surface Closer, Hydraulic Parallel Arm Push Side Mounting, Parallel Arm Rigid, Friction Hold Open, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Satin Brass Painted Finish, Left Hand

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.

With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, the 8000 Series closer can meet virtually any application challenge.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand.
• Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
• **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
• Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
