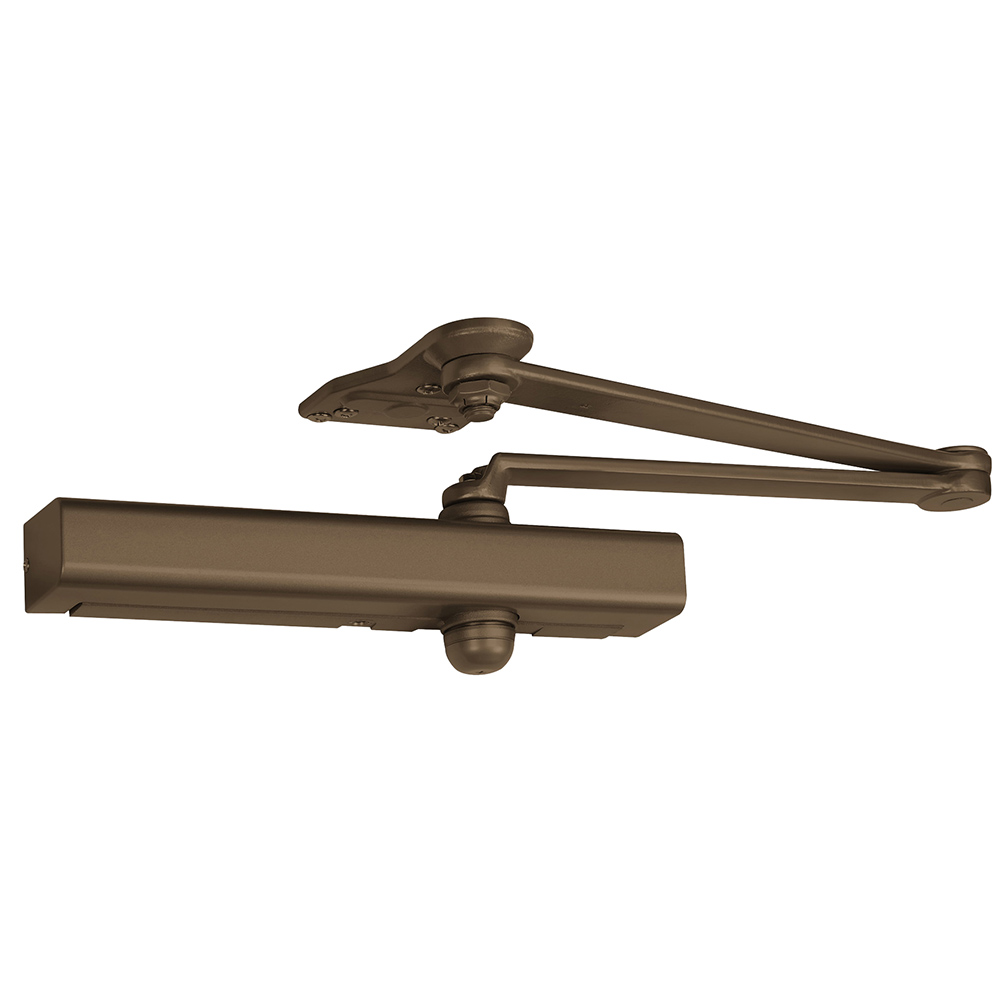

Norton PR8301H RH 691 Grade 1 Door Closer

Norton PR8301H RH 691 Grade 1 Door Closer delivers a perfect blend of style, reliability, and durability, making it an excellent choice for both commercial and residential applications. This Grade 1 surface closer features a hydraulic parallel arm design, ensuring smooth operation and longevity. Its adjustable backcheck allows for controlled opening and closing, while the friction hold open function provides convenience in high-traffic areas. Designed for right-handed doors, the Norton PR8301H accommodates a range of sizes from 1 to 6, making it adaptable to various needs. The closer’s non-handed feature ensures easy installation on doors of any hand, while its robust rack-and-pinion design with a cast aluminum body offers resilience, exceeding 10 million cycles. The slim-line plastic cover complements its aesthetic appeal and protects the mechanism from wear. Additionally, this closer is engineered to function effectively in extreme temperatures, thanks to its cold weather fluid that maintains viscosity as low as -40°F. With a 25-year limited warranty, the Norton PR8301H is not just a functional piece of hardware, but a dependable investment for ensuring secure and reliable door operations in your building.

Grade 1 Door Closer

Grade 1 Surface Closer, Hydraulic Parallel Arm Push Side Mounting, Parallel Arm Rigid, Friction Hold Open, Adjustable Backcheck, Plastic Cover, Size 1 to 6, Light Bronze Painted Finish, Right Hand

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge. The 8000 Series Door Closers exceed 10 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. A slim-line plastic cover is standard with the 8301 closer and a full plastic cover is standard with the 8501 closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.

With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, the 8000 Series closer can meet virtually any application challenge.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand.
• Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
• **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
• Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
