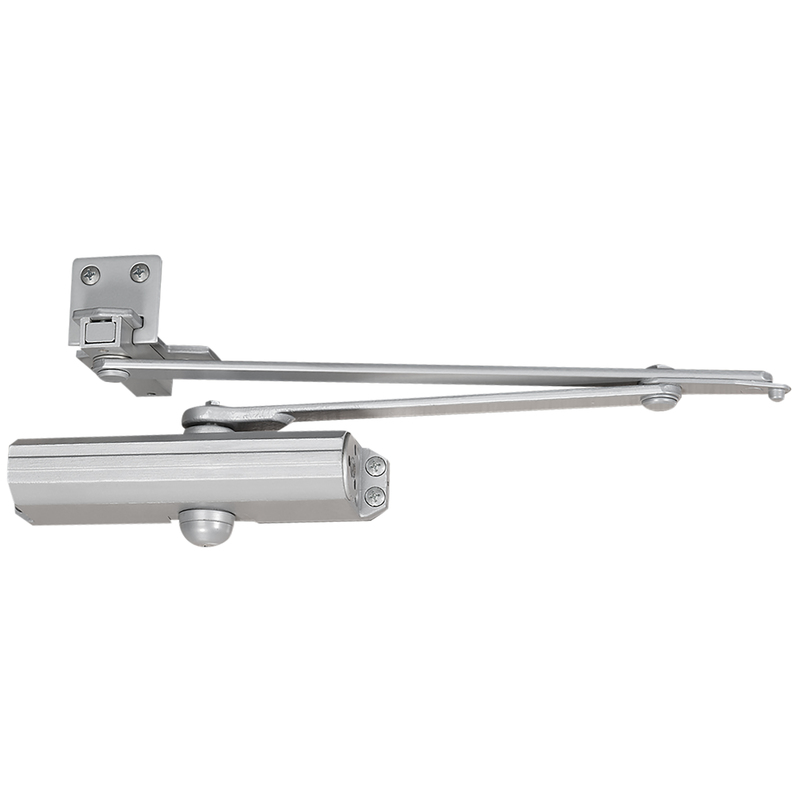

Norton UNI1601 33-41 689 Unitrol Grade 1 Door Closer

Norton UNI1601 33-41 689 Grade 1 Door Closer - Unitrol is a versatile and robust solution designed to meet the demands of both commercial and residential applications. This Grade 1 parallel arm surface closer accommodates door sizes ranging from 33" to 41" and supports a maximum weight of 250 lbs. The adjustable size feature (1-6) ensures optimal performance across various door conditions. Built with a heavy-duty, one-piece cast aluminum body, the Norton UNI1601 promises durability and longevity. Its reliable rack and pinion design allows for smooth operation, exceeding 12 million cycles. The independent sweep, latch, and back-check intensity valves provide exceptional control, making it an excellent choice for medium traffic areas, such as aluminum storefronts. The closer offers an impressive swing range of 85 to 180 degrees, ensuring flexibility in door movement. Its non-handed design simplifies installation, while the optional plastic cover enhances aesthetics. With an adjustable back check and various arm options, this door closer adapts to diverse environments. Norton’s commitment to quality is evident in the 15-year limited warranty, assuring building professionals and homeowners of its reliability. Trust the Norton UNI1601 to deliver performance and peace of mind for your door hardware needs.

Grade 1 Door Closer - Unitrol

Grade 1 Parallel Arm Surface Closer, Push Side, Unitrol Arm, Spring Stop, 85 to 180 Deg. Swing, Adjustable Size 1-6, For Doors Sized 33" to 41", Aluminum Painted Finish, Non-Handed

The Norton 1600 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition. The 1600 Series Door Closers exceed 12 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed.

Fully adjustable door closer for aluminum storefronts and other medium traffic applications.

Norton's 1601 Series door closers offer time-tested quality, performance and reliability. A long-standing staple in the industry, these Grade 1 closers are designed for interior or exterior doors.

Features:

• Heavy duty, one-piece cast aluminum body
• Available adjustable 1-6 and fixed spring sizes 3 and 4 units
• Full variety of arms available as hold open or non- hold open
• Maximum Degree of Swing: 180°, trim permitting
• Non-handed
• 2-7/8" projection
• Plastic cover optional

Benefits:

• Aluminum alloy closer body provides for long life
• Independent sweep, latch and back-check intensity valves ensure positive control
• Wide variety of arms and applications for most any environment
• Features a quick-adjust slide arm for quick installation and adjustment
