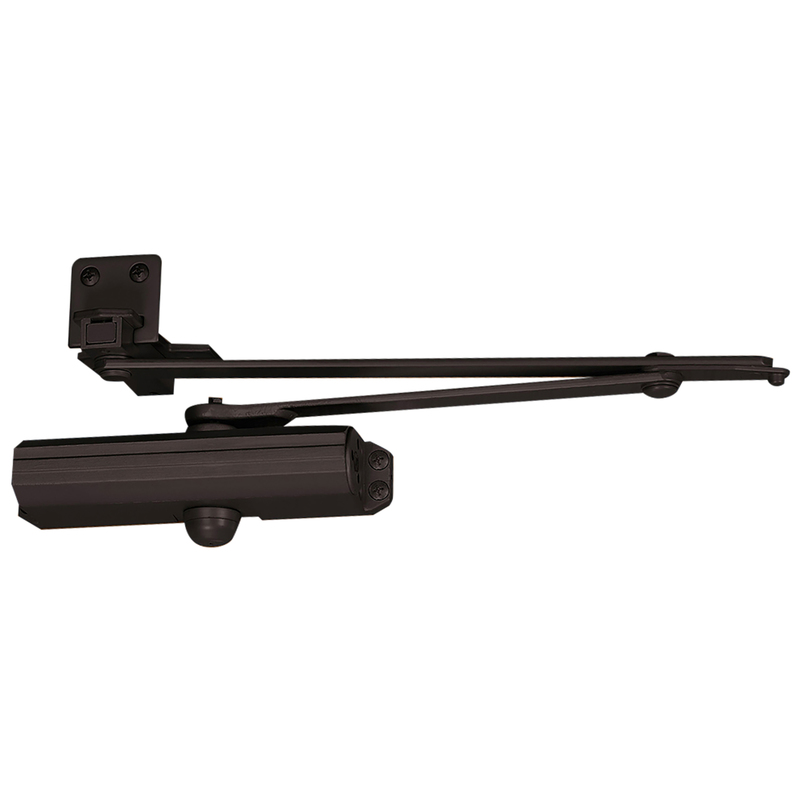

Norton UNI1601 33-41 690 Unitrol Grade 1 Door Closer

Norton UNI1601 33-41 690 Grade 1 Door Closer - Unitrol offers exceptional performance and durability, making it a preferred choice for commercial applications. This Grade 1 parallel arm surface closer is designed for push side installation and features a unitrol arm with a spring stop, allowing for a maximum swing of 180 degrees, ensuring ease of access while maintaining control. Engineered for doors sized between 33" to 41" and weighing up to 250 lbs, the Norton UNI1601 caters to varied installation needs with adjustable sizes from 1 to 6. Its heavy-duty, one-piece cast aluminum body ensures longevity, while the adjustable back-check provides added security and control. The closer also boasts a rack and pinion design known for its reliability, exceeding 12 million cycles of performance. This non-handed closer is versatile, with a quick-adjust slide arm facilitating swift installation and modifications. Additionally, it complies with ANSI/BHMA A156.4, Grade 1 standards, assuring you of its quality. With an elegant dark bronze painted finish, the Norton UNI1601 enhances the aesthetic of any environment while providing the robustness required for high-traffic areas. Experience the trusted quality and performance that professionals have relied on for years.

Grade 1 Door Closer - Unitrol

Grade 1 Parallel Arm Surface Closer, Push Side, Unitrol Arm, Spring Stop, 85 to 180 Deg. Swing, Adjustable Size 1-6, For Doors Sized 33" to 41", Dark Bronze Painted Finish, Non-Handed

The Norton 1600 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition. The 1600 Series Door Closers exceed 12 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed.

Fully adjustable door closer for aluminum storefronts and other medium traffic applications.

Norton's 1601 Series door closers offer time-tested quality, performance and reliability. A long-standing staple in the industry, these Grade 1 closers are designed for interior or exterior doors.

Features:

• Heavy duty, one-piece cast aluminum body
• Available adjustable 1-6 and fixed spring sizes 3 and 4 units
• Full variety of arms available as hold open or non- hold open
• Maximum Degree of Swing: 180°, trim permitting
• Non-handed
• 2-7/8" projection
• Plastic cover optional

Benefits:

• Aluminum alloy closer body provides for long life
• Independent sweep, latch and back-check intensity valves ensure positive control
• Wide variety of arms and applications for most any environment
• Features a quick-adjust slide arm for quick installation and adjustment
