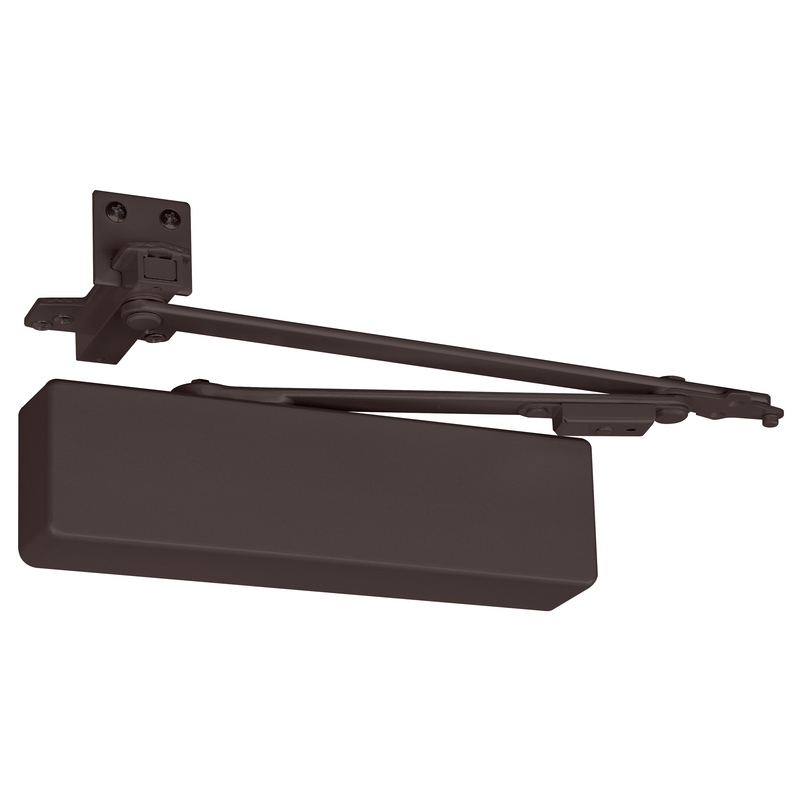

Norton UNI7500 33-41 690 Unitrol Grade 1 Door Closer

Norton UNI7500 33-41 690 Grade 1 Door Closer - Unitrol delivers exceptional reliability and performance for both interior and exterior doors. Designed for doors ranging from 33" to 41" wide, this Grade 1 parallel arm door closer is perfect for commercial applications that require strength and durability. With a non-handed installation feature, it accommodates any door orientation, making it a versatile choice for various architectural needs. Constructed with a robust cast aluminum body and a rack-and-pinion design, the UNI7500 exceeds 25 million cycles, ensuring longevity in high-traffic environments. Its adjustable spring power allows for settings from size 1 to 6, providing flexibility in operation. Users will appreciate the independent valves for sweep speed and latch speed, along with backcheck cushioning, which enhances user experience and safety. The door closer is finished in a dark bronze paint, offering both aesthetic appeal and corrosion resistance, while the plastic cover adds a sleek touch. With a 25-year limited warranty, the Norton UNI7500 is an investment in quality and performance for institutions demanding high standards in door hardware. Whether for educational facilities, healthcare environments, or commercial buildings, this door closer meets the requirements of ANSI A156.4 and is UL 10C listed for fire safety.

Grade 1 Door Closer - Unitrol

Grade 1 Parallel Arm Door Closer, Push Side, Unitrol Arm, Size 1 to 6, For 33" to 41" Doors, Plastic Cover, Dark Bronze Painted Finish, Non-Handed

The 7500 Series Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability. The 7500 Series Door Closers exceed 25 million cycles, have a rack and pinion design with a cast aluminum body and are non-handed. They are standard with separate and independent, latch, sweep and backcheck intensity valves.

Institutional heavy-duty door closer.

The 7500 Series is an institutional Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability.

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy body.
• Closers shall be surface mounted and shall project no more that 2-3/16" (55mm) from the surface of the door.
• Closers shall be non-handed to permit installation on doors of either hand.
• Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have backcheck cushioning controlled by a hex key adjusted valve.
• Closers shall have backcheck position controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
• [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, brass or stainless steel material and all fasteners of stainless steel.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/–7-1/2% ) power adjustment.
• Environmental Product Declaration (EPD) certified
