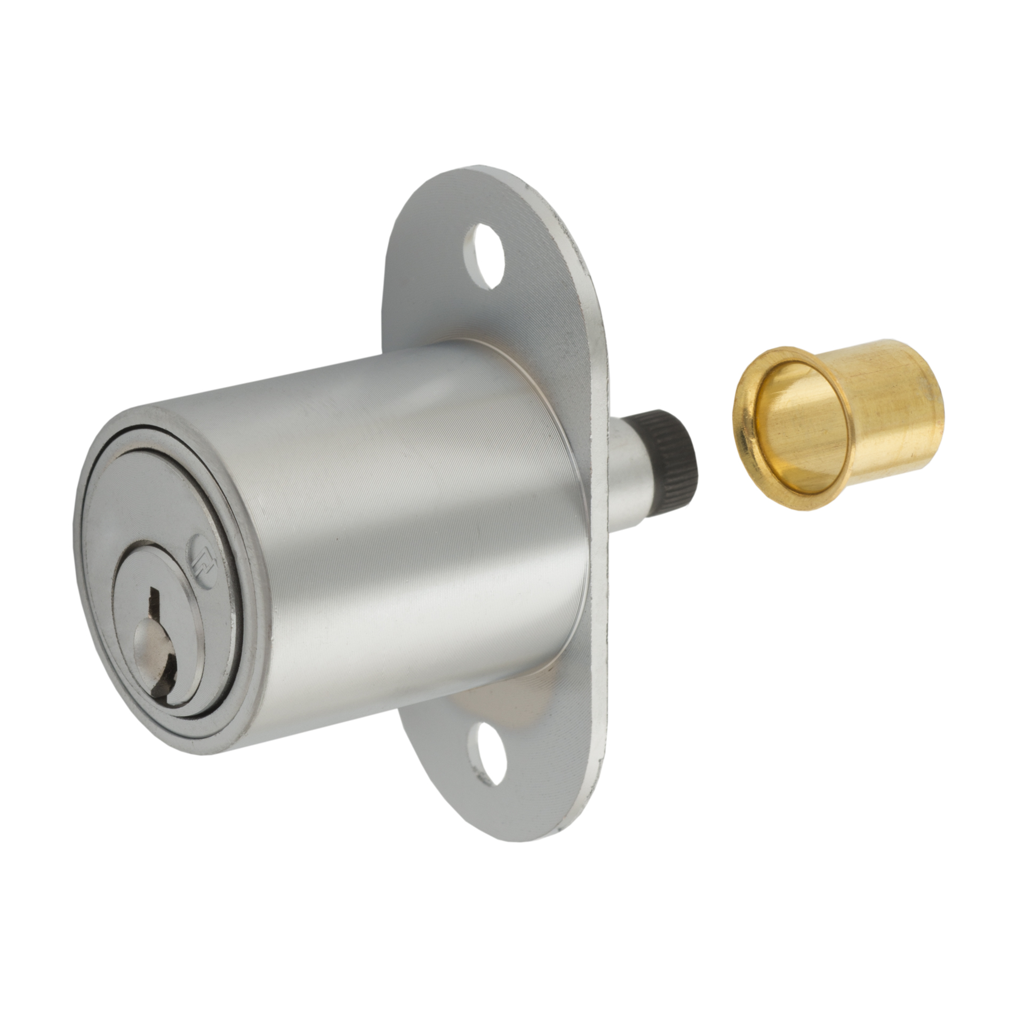

Olympus Lock 300SD-US26D-KA103 7/8in Sliding Door Push Lock, D4292 Keyed Alike to 103, Satin Chrome

Olympus Lock 300SD-US26D-KA103 7/8in Sliding Door Push Lock offers a robust solution for securing sliding doors with ease. Designed with a speed release mechanism, this lock allows for effortless rekeying without the need to remove it from the cabinet, making it ideal for both professionals and discerning homeowners. The solid brass pin tumbler cylinder is drilled for five pins, ensuring enhanced security while the lock’s 1-inch barrel diameter accommodates material thickness up to 7/8 inches. This product features a built-in bolt extension and a strike locator, which simplifies the installation process by allowing precise positioning of the thimble strike on the inner door. Each lock comes with two keys and supports various keying options, including keyed alike, keyed different, and master keyed configurations to meet specific security needs. Constructed from durable zinc die cast, the Olympus Lock 300SD is finished in sleek satin chrome, providing both aesthetic appeal and corrosion resistance. With a standard function that allows the key to be removed in both locked and unlocked positions, this sliding door push lock is a versatile addition to any security system, ensuring peace of mind without compromising convenience.

7/8in Sliding Door Push Lock, National D4292/ NA12 Keyway, Keyed Alike to 103, 1in Barrel Diameter, 626/US26D Satin Chrome

Provide Olympus 300SD (sliding door/plunger) lock. Locks shall be easily rekeyable without removal from cabinet via a speed release mechanism such as manufactured by Olympus Lock, Inc. All locks to include: working cylinder slides, .101 diameter pins, forwardly removable cylinders for rekeying without totally disassembling lock body, built in bolt extension and strike locator. Locks will include 2 keys per lock and shall be capable of being keyed alike, keyed different and/or master keyed per supplied schedule.

Features:

• Sliding door plunger lock
• Speed release mechanism for easy rekeying
• Solid brass pin tumbler cylinder drilled for 5 pins
• For material thickness: 7/8"
• Includes strike locator to easily position thimble strike on inner door
• Includes 10-24 machine threaded bolt extender for varying gaps between bypassing doors 26D, US3 or 10B finish

Specifications:

• Keying: Can be keyed together with other N Series locks
• Rekeyable: Easily rekeyable via speed-release cylinder release mechanism
• US Patent Nos: 4,920,774; 5,121,619
• Standard function: Key removable in locked or unlocked position.
• Body: Zinc die cast
• Cylinder: Solid brass, pin tumbler
• Cylinder length: 1"
• Barrel diameter: 1"

Keying Information:

• Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 4 pin standard
• Stock KA#: 101, 103, 107, 915
• Masterkeyed: 5 pin standard
• Grand masterkeyed: Available
• Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)
• Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

Finishes:

• US26D - Satin chrome plated
• US3 - Polished brass
• US10B - Oil rubbed bronze
