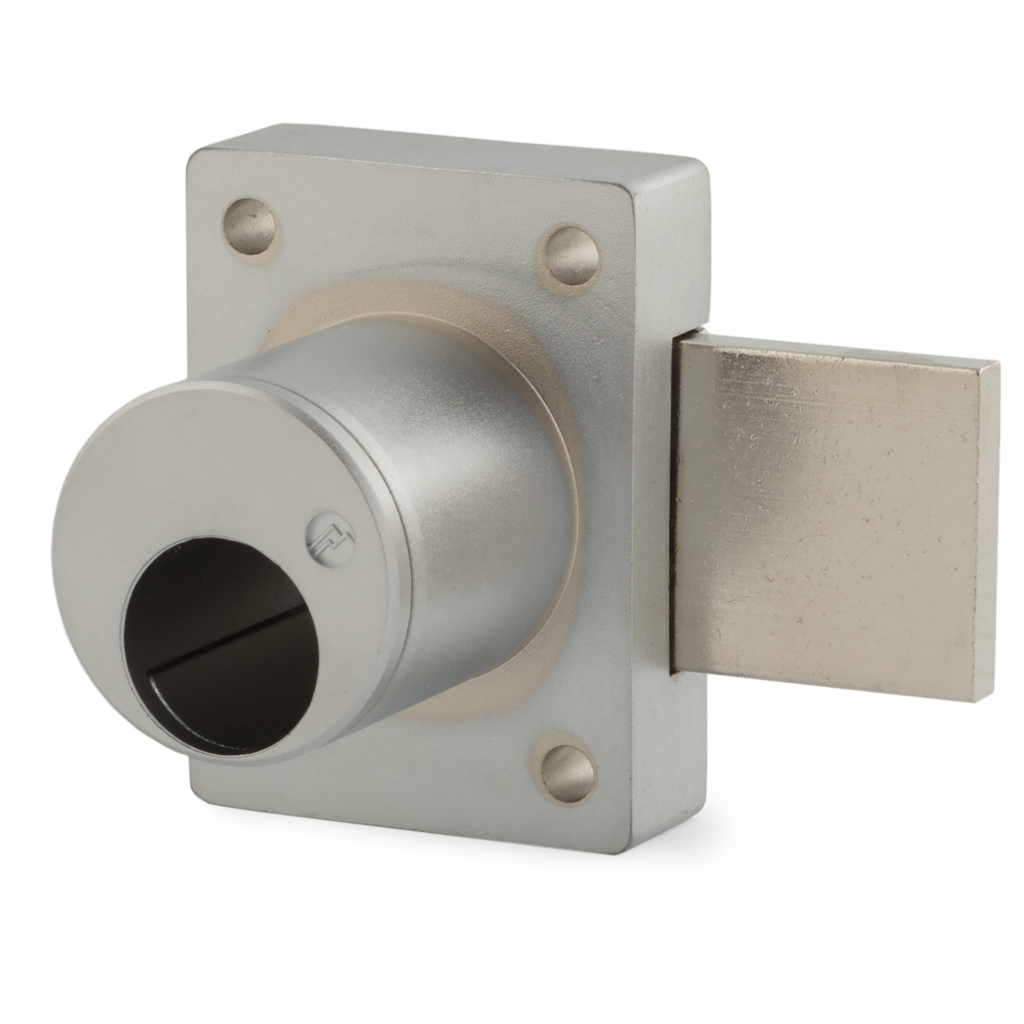

Olympus Lock 700LCA-US26D 1-1/8in Door Deadbolt Lock offers robust security and versatility, ideal for both professional installations and residential use. This key-in-knob and key-in-lever deadbolt is designed with a 1-1/8 inch barrel diameter and is built to meet Grade 1 performance standards according to ANSI/BHMA A156.11, ensuring reliability and durability. The 700LCA features an easily rekeyable mechanism via a set screw cylinder release, allowing you to customize your security setup effortlessly. It can accept Schlage compatible cylinders, providing further flexibility in keying options. With a bolt projection of 15/16 inches, this lock is engineered to withstand forced entry while maintaining a sleek appearance, enhanced by its satin chrome finish. Additionally, the lock allows for key retention in both locked and unlocked positions, adding an extra layer of convenience. Whether you’re looking to secure cabinets or doors, this deadbolt can accommodate various key-in-knob cylinders from other manufacturers, making it a versatile choice for any application. With a zinc die-cast body and compatibility with electronic locking systems like Medeco LOGIC and ASSA CLIQ, the Olympus Lock 700LCA is an excellent solution for those seeking reliable and adaptable security hardware.

1-1/8in Door Deadbolt Lock LC Key-in-Knob/Key-in-Lever, Less Cylinder, 1-1/8in Barrel Diameter, Grade 1, 626/US26D Satin Chrome

Features:

• Cabinet lock - deadbolt door lock
• Easily rekeyable via cylinder release mechanism
• Will accept other manufacturer's Schlage compatible deadbolt cylinders
• 700LCA barrel length: 1-1/8"
• 700LCM barrel length: 1-3/8"
• Bolt projection: 15/16"

Specifications:

• Keying: Can be keyed together with other Schlage C keyway locks
• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (700S)/E07041 (800S).
• Standard Function: Key removable in locked or unlocked position. Standard function locks are non-handed.
• Key-Retaining: Key removable in locked position only. Specify handing (KL/KR for doors or KI/KV for drawers) when ordering.
• US Patent Nos: 4,899,563; 4,920,774
• Body: Zinc die cast
• Cylinder: Will accept other manufacturer's Schlage compatible key-in-knob cylinders
• Cylinder Length: 1-1/8" or 1-3/8"
• Barrel Diameter: 1-1/8"

Cylinder Information:

• Cylinder: Not included
• Includes: All parts necessary to work with other manufacturers cylinders
• ILCO Cylinder: #1599 (various keyways available)
• Assa Cylinder: Assa part-number #65611 (requires 1-3/8" lock body)
• Medeco Cylinders: Requires LCM (1-3/8") locks
• Compatible Electronic Cylinders: Medeco LOGIC, ASSA CLIQ or VIDEX CyberLock key-in-knob cylinders

Finishes:

• US26D - Satin chrome plated
• US3 - Polished brass
• US10B - Oil rubbed bronze
