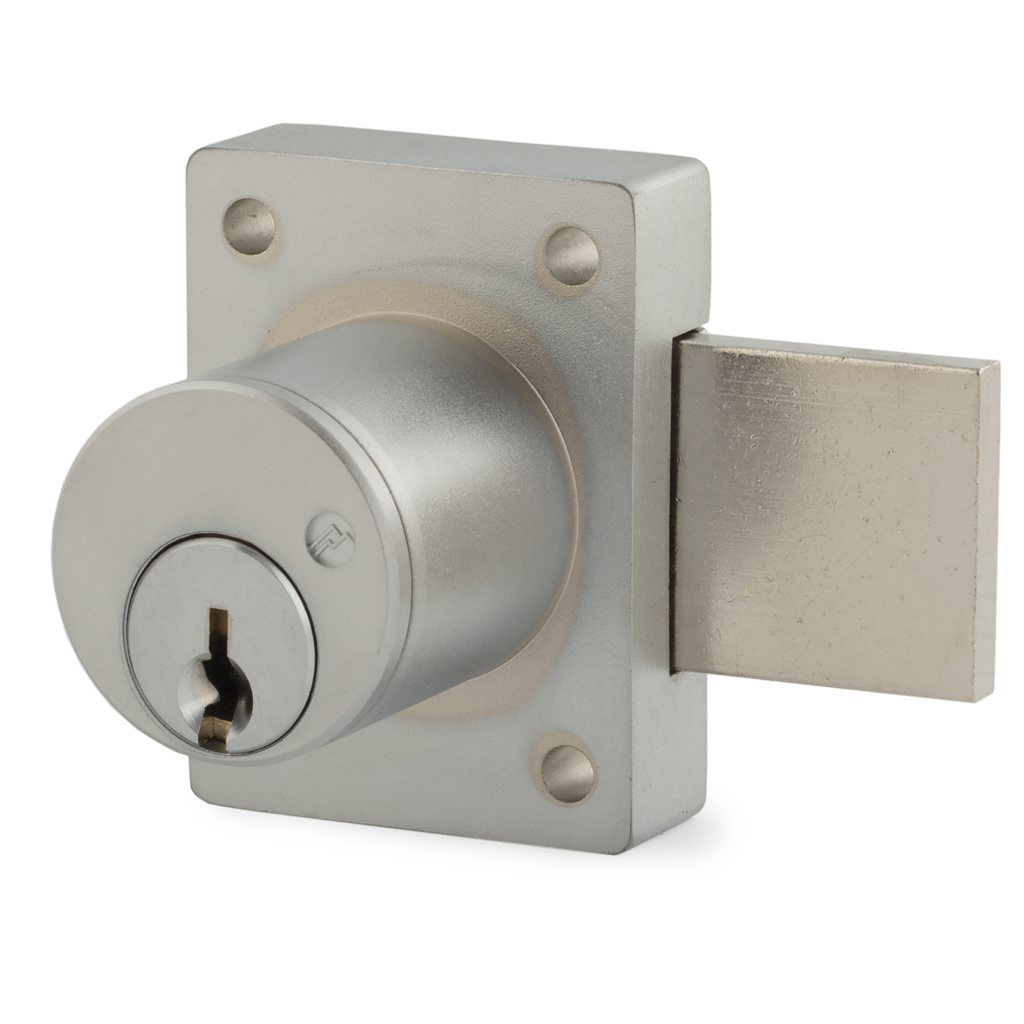

Olympus Lock 700SC-US26D-KD Schlage 1-1/8" Deadbolt Lock, C Keyway, Keyed Different, Satin Chrome, Grade 1

Olympus Lock 700SC-US26D-KD 1-1/8in Door Deadbolt Lock offers robust security and versatility for both residential and commercial applications. Designed to meet Grade 1 performance requirements, this lock is built with a durable zinc die-cast body and features a satin chrome finish that enhances its aesthetic appeal while providing long-lasting protection against corrosion. With a barrel diameter of 1-1/8 inches and a bolt projection of 15/16 inches, this deadbolt is designed for easy installation and reliable operation. The 700SC model is easily rekeyable via a convenient cylinder release mechanism, making it a practical choice for those who require flexibility in their security solutions. It is compatible with Schlage C keyway locks, allowing for seamless integration into existing systems. This lock includes two keys and can be configured for keyed different, keyed alike, or master-keyed systems, providing tailored security options to meet your specific needs. The standard function allows for key removal in both locked and unlocked positions, while an optional key-retaining function is also available. Whether for cabinets, doors, or other applications, the Olympus Lock 700SC-US26D-KD guarantees peace of mind and enhanced security, making it an ideal choice for discerning professionals and homeowners alike.

1-1/8in Door Deadbolt Lock, Schlage C Keyway, Keyed Different, 1-1/8in Barrel Diameter, Grade 1, 626/US26D Satin Chrome

Provide Olympus 700SC (door) and Olympus 800SC (drawer) easily rekeyable cabinet locks such as manufactured by Olympus Lock, Inc. All locks to include: forwardly removable cylinders for rekeying without totally disassembling lock body. Furnish 2 keys per lock and bar or slotted strikes as required. Spacers to be provided as required for flush fit with outside face of casework material. Locks shall be capable of being keyed alike, keyed different and/or master keyed per supplied schedule.

Features:

• Cabinet lock - deadbolt door lock
• Easily rekeyable via cylinder release mechanism
• Will accept other manufacturer's Schlage compatible deadbolt cylinders
• Optional key-retaining function: Specify 700KR for right-hand or 700KL for left hand. Note: Specify right-hand or left-hand for key-retaining function only. See key-retaining chart.
• Barrel lengths: 1-1/8" or 1-3/8" (specify barrel length when ordering)
• Bolt projection: 15/16"
• 10B finish locks ship standard with US4 satin brass cylinder

Specifications:

• Keying: Can be keyed together with other Schlage C keyway locks
• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (700S)/E07041 (800S).
• US Patent Nos: 4,899,563; 4,920,774
• Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.
• Key-retaining: Key removable in locked position only. Specify handing (KL/KR for doors or KI/KV for drawers) when ordering.
• Body: Zinc die cast
• Cylinder: Will accept other manufacturer's Schlage compatible key-in-knob cylinders
• Cylinder length: 1-1/8" or 1-3/8"
• Barrel diameter: 1-1/8"

Keying Information:

• Keyway: Schlage C keyway
• Keys: Includes 2 keys per lock
• Cylinder: Solid brass, pin tumbler
• Stock keying: KD/KA - 5 pin standard
• Stock KA#: 101, 102, O-Bit
• Masterkeying: 6 pin standard
• Grand masterkeying: Available
• Keyblank 6-pin: KBSC-6

Models:

• 700S:
• Function: Door
• Cylinder Length: 1-1/8" or 1-3/8"
• Keying: KD, KA 101,102, O-Bit Custom Keyed
• 700KL:
• Function: LH Door-KR
• Cylinder Length: 1-1/8" or 1-3/8"
• Keying: KD, KA 101,102, O-Bit Custom Keyed
• 700KR:
• Function: RH Door-KR
• Cylinder Length: 1-1/8" or 1-3/8"
• Keying: KD, KA 101,102, O-Bit Custom Keyed
• Key-retaining (KR): Specify item 700KL for left-hand doors and 700KR for right-hand doors. (KL and KR designation are only required for key retaining locks).

Finishes:

• US26D - Satin chrome plated
• US3 - Polished brass
• US10B - Oil rubbed bronze. (Not available on 700S 1-3/8", 700KL 1-3/8" or 700KR 1-3/8")
