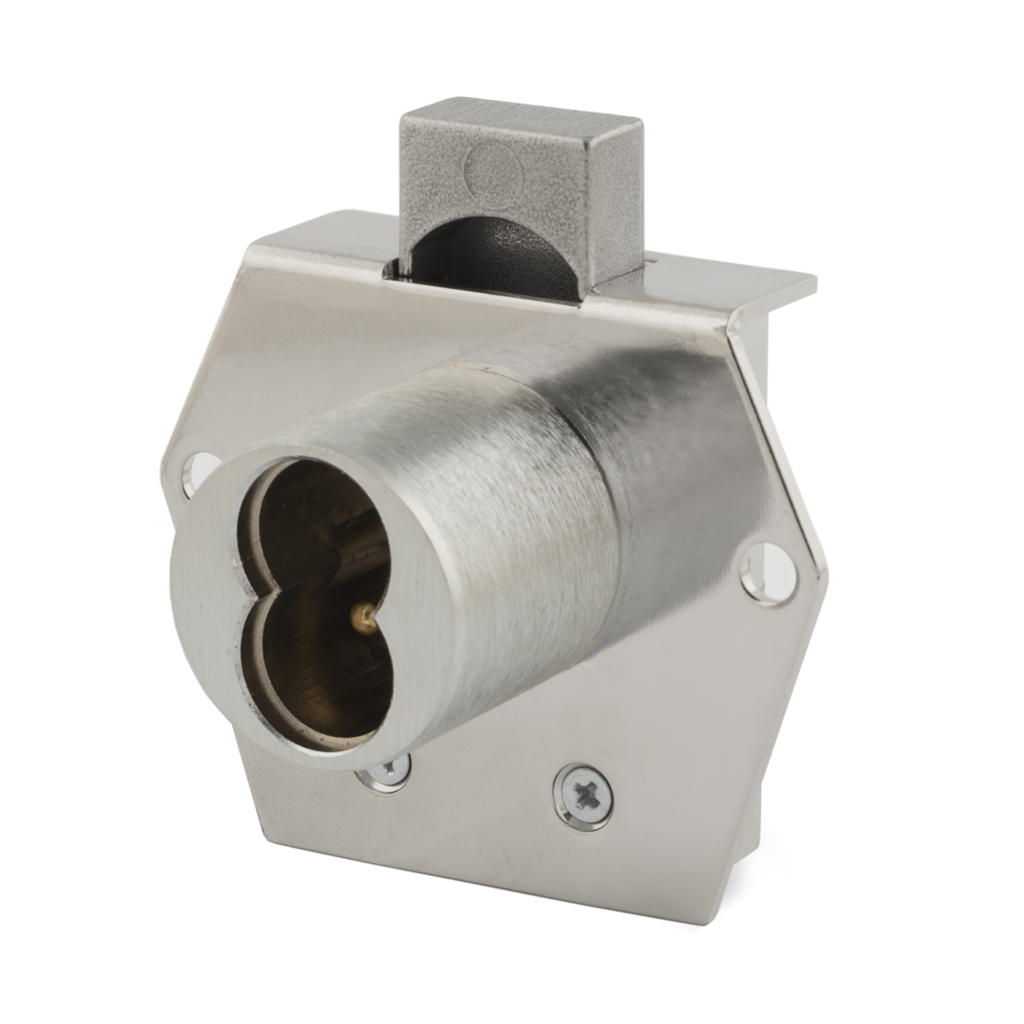

Olympus Lock 725RD-DWKVH-26D SFIC 1-1/16" Deadbolt Drawer Lock, Key Retaining, Grade 1, Satin Chrome

Olympus Lock 725RD-DWKVH-26D SFIC 1-1/16in Deadbolt Drawer Lock offers a robust solution for securing cabinets and drawers with its reliable deadbolt locking mechanism. Designed for small format interchangeable cores, this lock seamlessly integrates with 6 or 7 pin cylinders from leading brands like Best, Arrow, and Falcon. The 1-1/8 inch barrel diameter and a standard cylinder length of 1-1/16 inches ensure a precise fit for various applications. Constructed with a durable zinc die-cast cylinder housing, steel backplate, and steel case, the 725RD-DWKVH meets ANSI/BHMA Grade 1 performance requirements, guaranteeing long-lasting security and peace of mind. This model features a key-retaining function for the VH drawer application, allowing the key to be removed only when locked, adding an extra layer of security. Versatile in function, the lock is available in multiple orientations, including right-hand, left-hand, drawer-vertical, and drawer-inverted configurations. The satin chrome finish (US26D) not only enhances durability but also complements a variety of decor styles. Whether you’re a building professional or a knowledgeable homeowner, the Olympus Lock 725RD-DWKVH is a smart choice for reliable security in your drawers and cabinets.

SFIC 1-1/16in Deadbolt Drawer Lock, Key Retaining, Small Format IC Prep, Less Core, 1-1/8in Barrel Diameter, Grade 1, 626/US26D Satin Chrome

Provide Olympus 725RD rim deadbolt (door/drawer) locks or 725MD mortise (deadbolt door/drawer locks) such as manufactured by Olympus Lock, Inc. Locks to accept 6 or 7 pin small format interchangeable core cylinders such as supplied by Best, Arrow, Falcon, KSP or equivalent. Locks will provide dedicated door and drawer functions in order to maintain keyway verticality when installed. Include strikes as required.

Features:

• Cabinet lock, rim - surface mount
• Deadbolt locking mechanism
• Retrofits Best 5L series cabinet locks
• Available in right-hand, left-hand, drawer-vertical and drawer-inverted function. See handing chart.
• Key retaining function available for DW-VH function. See handing chart.
• Accepts Best, Arrow or equivalent small format interchangeable core cylinders
• Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
• Standard barrel length: 1-1/16"
• Optional barrel length: 1-3/8" (US26D finish only)
• Plastic spacers available separately WP725 and WP726

Specifications:

• Retrofits: Best 5L7RD
• Mounting: Rim (surface)
• ANSI/BHMA: Passed ANSI/BHMA A156.11 grade 1 performance requirements
• Material: Zinc die cast cylinder housing, steel back plate and steel case
• Cylinder Length: 1-1/16" or 1-3/8"
• Barrel Diameter: 1-1/8"
• Key-Retaining: Available for DW-VH applications

Keying Information:

• Cores: Not included.
• Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
• Compatible Electronic Cylinders: Medeco NexGen XT or VIDEX CyberLock SFIC cylinders

Models:

• 725RD-DR-RH:
• Function: RH Door
• Cylinder Length: 1-1/16"
• Description: Lock body - for small format IC
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DR-RH:
• Function: RH Door
• Cylinder Length: 1-3/8"
• Description: Lock body - for small format IC
• Finish: 26D
• 725RD-DR-LH:
• Function: LH Door
• Cylinder Length: 1-1/16"
• Description: Lock body - for small format IC
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DR-LH:
• Function: LH Door
• Cylinder Length: 1-3/8"
• Description: Lock body - for small format IC
• Finish: 26D
• 725RD-DW-VH:
• Function: VH Drawer
• Cylinder Length: 1-1/16"
• Description: Lock body - for small format IC
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DWVH:
• Function: VH Drawer
• Cylinder Length: 1-3/8"
• Description: Lock body - for small format IC
• Finish: 26D
• 725RD-DW-IH:
• Function: IH Drawer
• Cylinder Length: 1-1/16"
• Description: Lock body - for small format IC
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DW-IH:
• Function: IH Drawer
• Cylinder Length: 1-3/8"
• Description: Lock body - for small format IC
• Finish: 26D
• 725RD-DWKVH: Key-retaining function (key removable in locked position only)
• Function: VH Drawer
• Cylinder Length: 1-1/16"
• Description: Lock body - for small format IC
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DWKVH: Key-retaining function (key removable in locked position only)
• Function: VH Drawer
• Cylinder Length: 1-3/8"
• Description: Lock body - for small format IC
• Finish: 26D

Finishes:

• US26D - Satin chrome plated
• US3 - Polished brass
• US10B - Oil rubbed bronze
• US26 - Polished chrome
• US4 - Satin brass
