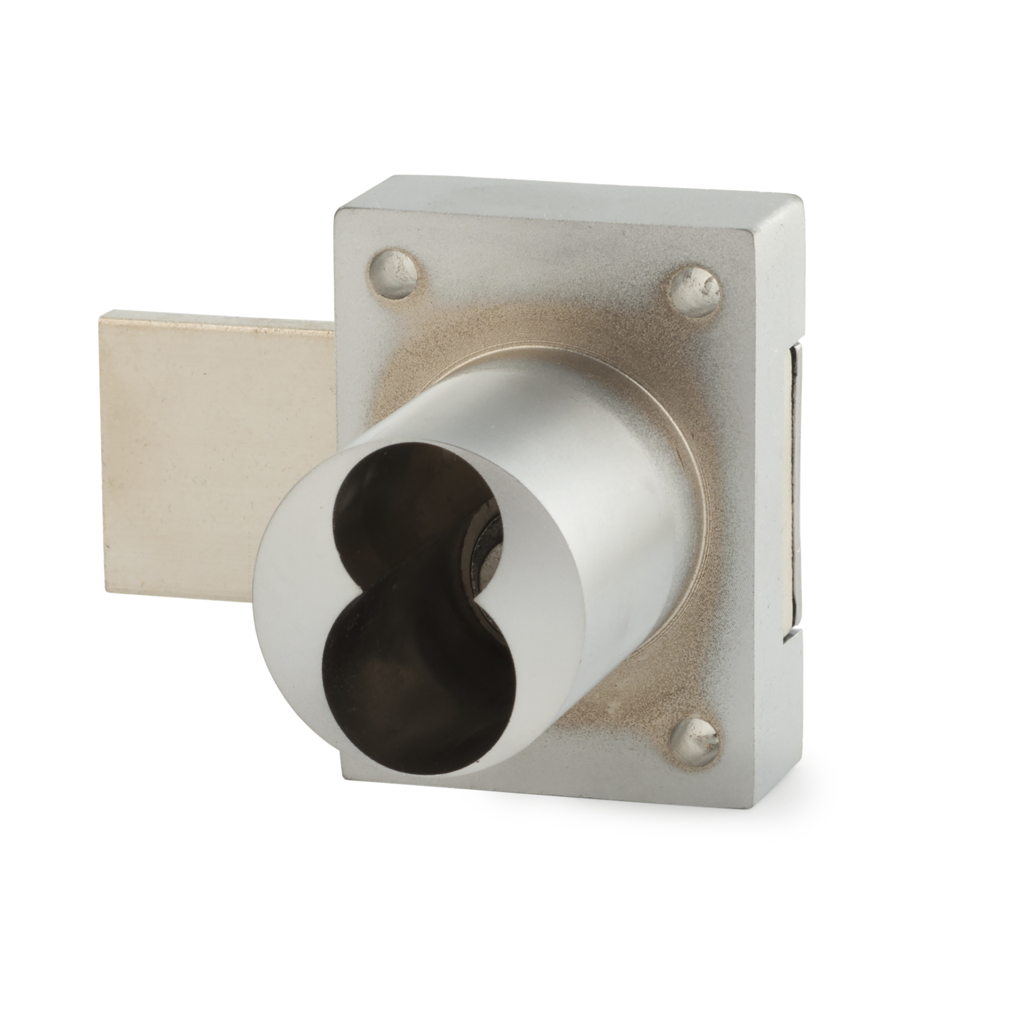

Olympus Lock 777ICP-US26D Schlage FSIC 1-7/16in Door Lock combines durability and security, making it an ideal choice for both professionals and discerning homeowners. Designed for full-sized interchangeable core applications, this Grade 1 lock meets ANSI/BHMA A156.11 performance requirements. The lock features a robust zinc die-cast body with a satin chrome finish, ensuring both aesthetic appeal and long-lasting performance. With a barrel diameter of 1-1/8 inches and a cylinder length of 1-7/16 inches, this model accepts Schlage large format interchangeable core cylinders, including the Primus and Everest series, as well as Mul-T-Lock large format cores. The key-retaining function allows the key to be removed only when the lock is in the locked position, adding an extra layer of security. Installation is straightforward, as the 777ICP is non-handed and suited for dedicated door functions, maintaining keyway verticality. Whether it's for a commercial setting or residential use, this deadbolt cabinet lock delivers reliable security with ease of access. The Olympus Lock 777ICP-US26D is an essential addition to any security system, providing peace of mind without compromising on style.

Schlage FSIC 1-7/16in Door Lock, Full Sized IC Prep, Less Core, 1-1/8in Barrel Diameter, Grade 1, 626/US26D Satin Chrome

Provide 777ICP-DR (door) and 888ICP-DW (drawer) locks as manufactured by Olympus Lock, Inc. All lock bodies to accept Schlage large format interchangeable core cylinders such as supplied by Schlage Lock Company. Locks will provide dedicated door and drawer functions in order to maintain keyway verticality when installed. Deadbolt door locks to be non-handed.

Features:

• Cabinet lock - deadbolt door lock
• Accepts Schlage standard or Primus/Everest large format (full size) interchangeable core cylinders
• Barrel length 1-7/16"
• Key-retaining = key removable in the locked position only

Specifications:

• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (777ICP)/E07041 (888ICP)
• Standard Function: Locks are non-handed with key removable in the locked and unlocked position
• Key-Retaining Function: Specify core type (Standard/Classic or Primus/Everest) when ordering
• Body: Zinc die cast
• Cylinder Length: 1-7/16"
• Barrel Diameter: 1-1/8"

Cylinder Information:

• Cylinder: Not included
• Accepts: Schlage large format/full-size IC cylinders
• Schlage Quad, numbered section, and Schlage classic IC cores
• Schlage Primus and Everest large format IC cores
• Mul-T-Lock large format IC cores
• Compatible Electronic Cylinders: VIDEX CyberLock LFIC cylinders

Models:

• 777ICP-DR: Key removable locked or unlocked position
• Function: Door
• Core: Standard/Classic or Primus/Everest
• Description: Lock body - for Schlage full-size IC
• 777IC-DRK: Key retaining (key removable locked position only)
• Function: Door-KR
• Core: Standard/Classic
• Description: Lock body - for Schlage full-size IC
• 777P-DRK: Key retaining (key removable locked position only)
• Function: Door-KR
• Core: Primus/Everest
• Description: Lock body - for Schlage full-size IC
• Key-retaining (KR): Cycle to "locked" position before inserting core.

Finishes:

• US26D - Satin chrome plated
• US3 - Polished brass
• US10B - Oil rubbed bronze
