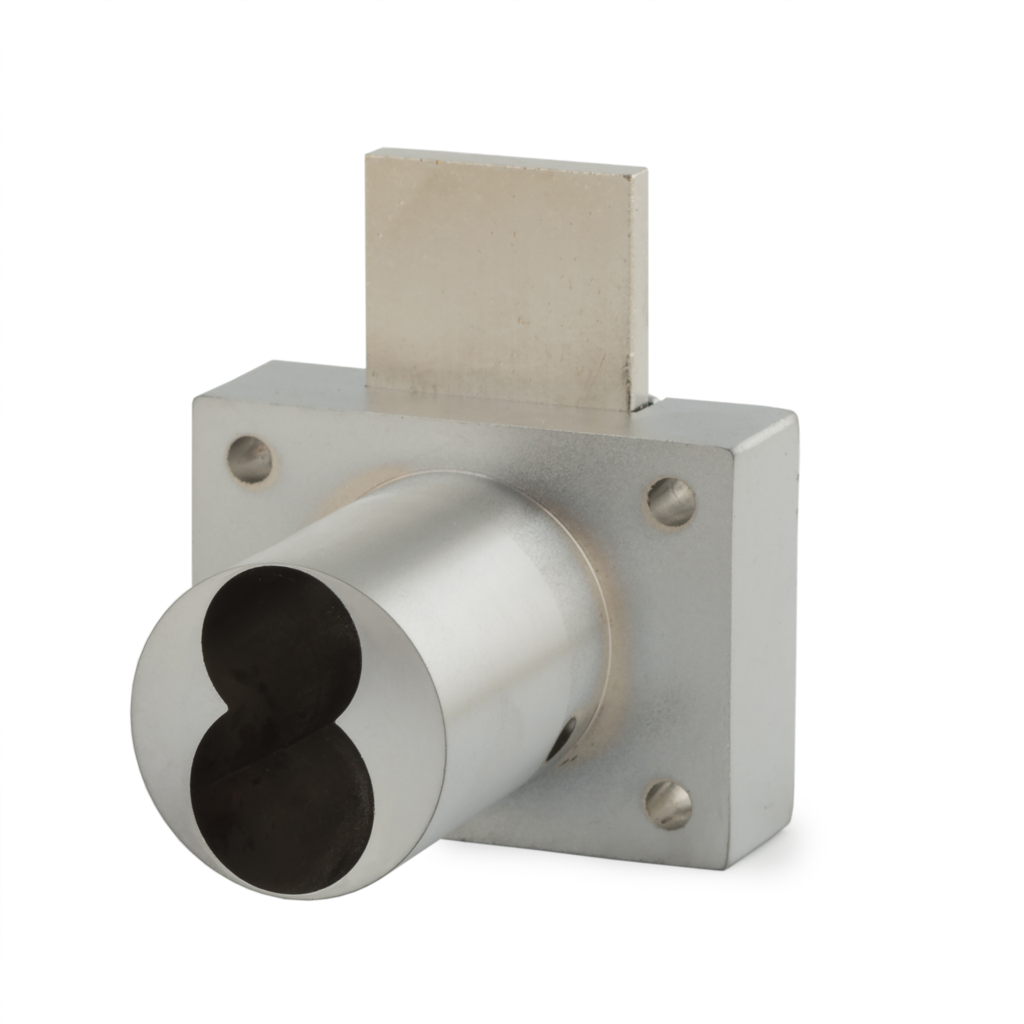

Olympus Lock 888ICP-US26D Schlage FSIC 1-7/16in Drawer Lock offers robust security with its deadbolt design, making it an ideal choice for both residential and commercial applications. This drawer lock is compatible with Schlage's large format interchangeable core cylinders, allowing for seamless integration with existing security systems. The lock features a barrel diameter of 1-1/8 inches and a length of 1-7/16 inches, providing a substantial feel and reliable operation. Crafted from durable zinc die cast, the 888ICP-US26D meets the ANSI/BHMA Grade 1 standards, ensuring it can withstand the rigors of daily use. Its key-retaining function allows the key to be removed only when the lock is in the secured position, enhancing security by preventing accidental lockouts. This feature is especially beneficial in environments where maintaining keyway verticality is crucial. In addition, the lock is non-handed, which simplifies installation. The satin chrome finish not only adds an aesthetic appeal but also offers durability against wear and corrosion. With its ability to accept both standard and Primus/Everest core types, the Olympus Lock 888ICP-US26D is a versatile and secure solution for any drawer locking need, making it an excellent choice for professionals and savvy homeowners alike.

Schlage FSIC 1-7/16in Drawer Lock, Full Sized IC Prep, Less Core, 1-1/8in Barrel Diameter, Grade 1, 626/US26D Satin Chrome

Provide 777ICP-DR (door) and 888ICP-DW (drawer) locks as manufactured by Olympus Lock, Inc. All lock bodies to accept Schlage large format interchangeable core cylinders such as supplied by Schlage Lock Company. Locks will provide dedicated door and drawer functions in order to maintain keyway verticality when installed. Deadbolt door locks to be non-handed.

Features:

• Cabinet lock - deadbolt drawer lock
• Accepts Schlage standard or Primus/Everest large format interchangeable core cylinders
• (E07041) ANSI/BHMA Grade 1
• Barrel diameter: 1-1/8"
• Barrel length 1-7/16"
• Key-retaining = key removable in the locked position only

Specifications:

• Standard Function: Locks are non-handed with key removable in the locked and unlocked position
• Key-Retaining Function: Specify core type (Standard/Classic or Primus/Everest) when ordering
• Body: Zinc die cast
• Cylinder Length: 1-7/16"

Cylinder Information:

• Cylinder: Not included
• Accepts: Schlage large format/full-size IC cylinders
• Compatible Electronic Cylinders: VIDEX CyberLock LFIC cylinders

Models:

• 888ICP-DW: Key removable locked or unlocked position
• Function: Drawer
• Core: Standard/Classic or Primus/Everest
• Description: Lock body - for Schlage full-size IC
• 888IC-DWK:
• Function: Drawer-KR
• Core: Standard/Classic
• Description: Lock body - for Schlage full-size IC
• 888P-DWK:
• Function: Drawer-KR
• Core: Primus/Everest
• Description: Lock body - for Schlage full-size IC
• Key-retaining (KR): Cycle to "locked" position before inserting core

Finishes:

• US26D - Satin chrome plated
• US3 - Polished brass
• US10B - Oil rubbed bronze
