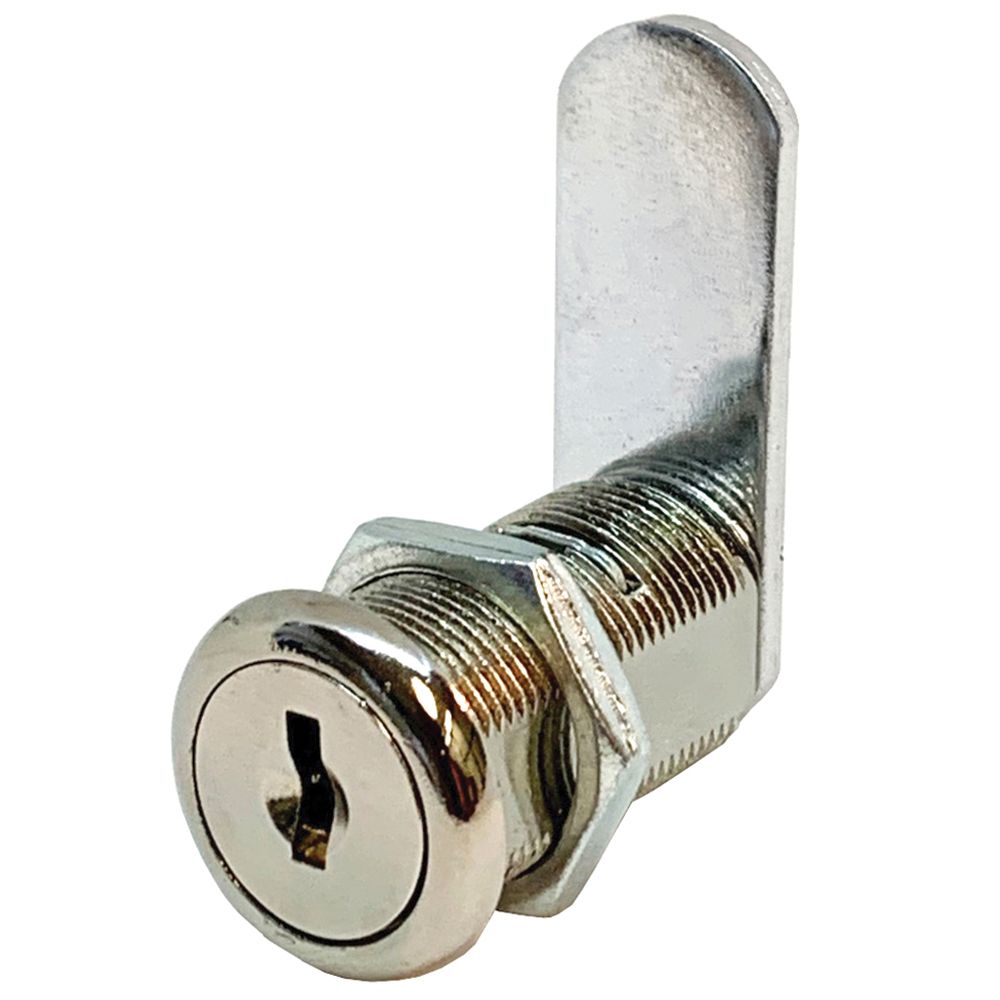

Olympus Lock 954-14A-C415A Matte Nickel Disc Tumbler Cam Lock 5/8"

OLYMPUS LOCKS 954-14A-C415A Disc Tumbler Cam Lock 5/8 Matte Nickel is expertly designed to meet your security needs with efficiency and ease. This cam lock features a standardized plug size, enhanced by an adapter bushing that allows it to work seamlessly with multiple cylinder lengths, streamlining your installation process. Installation is a breeze thanks to the thoughtfully packaged components. The staple retention system keeps the plug secure in the cylinder, eliminating the hassle of locating and inserting keys during setup. With the body and cylinder already assembled, you can achieve a quick and straightforward installation. The anti-rotation washer ensures stability by locking down with a screw, preventing unwanted movement. Built for durability, this cam lock has passed the ANSI/BHMA Grade 2 cycle test, enduring 20,000 cycles of usage, including key insertion and removal. Each lock comes with one straight cam and one offset cam, along with two keys that can be removed in either the locked or unlocked position. Crafted from zinc die cast with a robust 5-disc tumbler mechanism, the OLYMPUS LOCKS 954-14A-C415A provides reliable and long-lasting security for your cabinets and furniture.

DiscTumbler CamLock 5/8 Matte Nickel

• Key removable in locked or unlocked position
• Zinc die cast, 5 disc tumbler

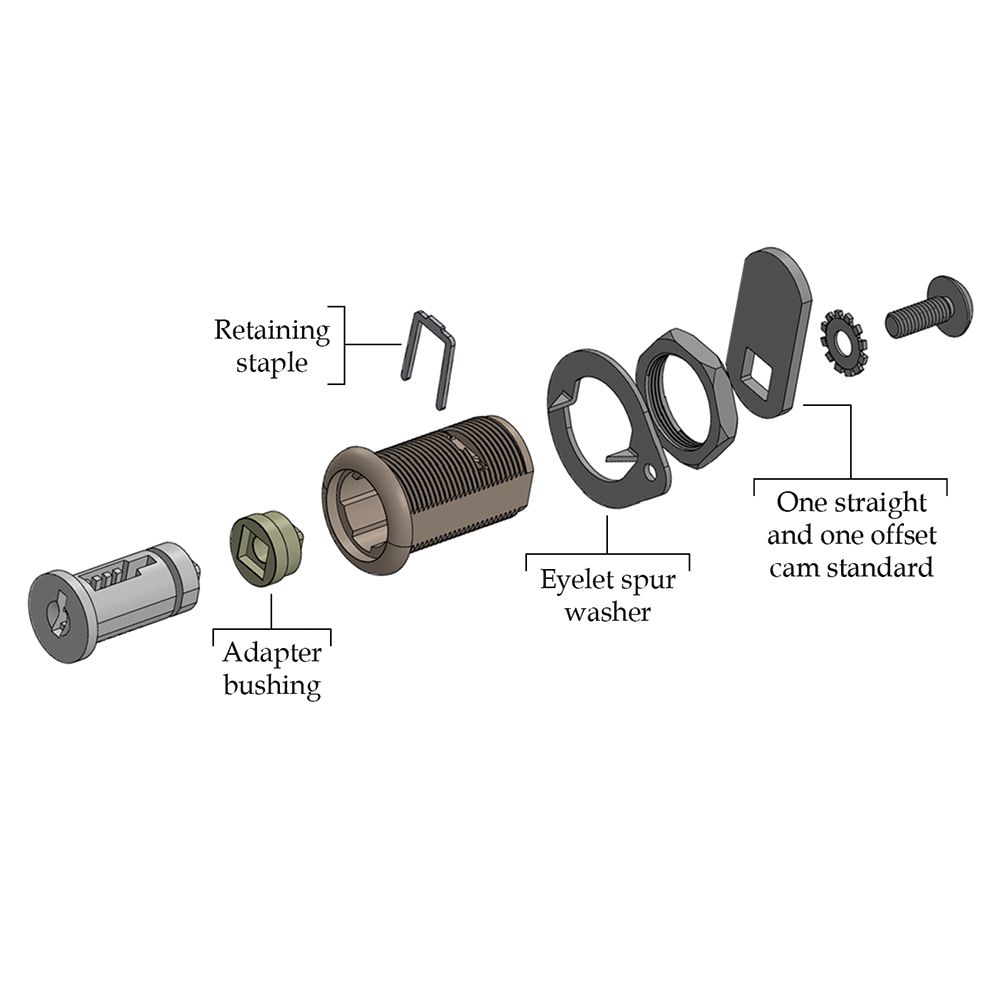

• Standardized plug size - gap filled with adapter bushing allows standardized plug to work with multiple cylinder lengths
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles, including key insertion and removal [E07262]
• Anti-rotation washer - eyelet spur washer can be locked down with screw to prevent rotation
• 2 keys included
• Ships with body and cylinder assembled for fast and easy installation
• Packaged for easy installation - staple retains plug in cylinder, no need to locate & insert keys to install plug into cylinder. Ships without cams attached to body, eliminating the need to dissassemble before inserting into cabinet
• One 1-1/2" straight and one offset cam included, other cams available
