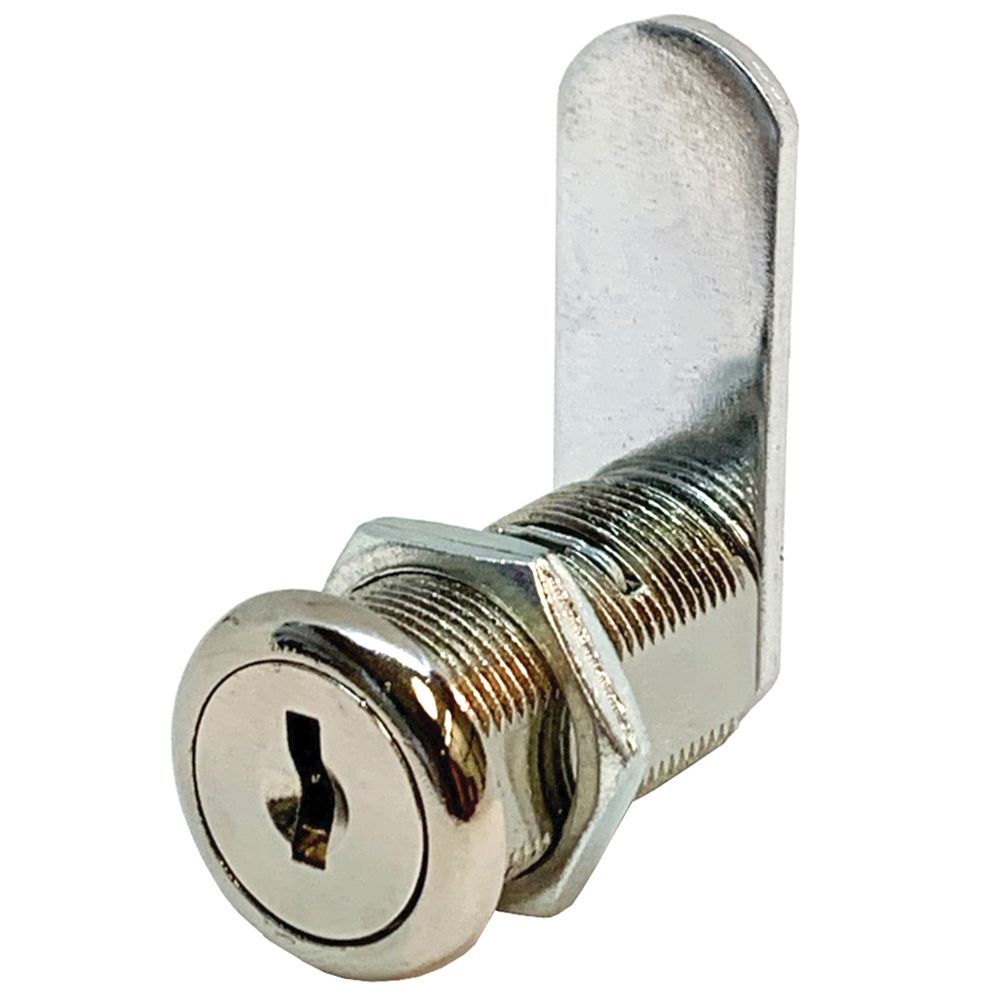

Olympus Lock 960-14A-C346A DiscTumbl Cam Lock 1.4375" Matte Nickel

OLYMPUS LOCKS 960-14A-C346A Disc Tumbler Cam Lock 1-7/16" in Matte Nickel is expertly designed to meet your security needs with precision and ease. This cam lock features a standardized plug size, enhanced by an adapter bushing that allows it to work seamlessly with various cylinder lengths. Installation is straightforward, as the lock is packaged with a staple that retains the plug in the cylinder-there's no need to fumble with keys during setup. The OLYMPUS LOCKS design includes an anti-rotation washer that can be secured with a screw, ensuring the lock remains stable and secure. Each unit ships with the body and cylinder pre-assembled, streamlining the installation process. This cam lock has passed the rigorous ANSI/BHMA Grade 2 cycle test for durability, proving reliable for 20,000 cycles of key insertion and removal. Included in the package are one 1-1/2" straight cam and one offset cam, with additional cam options available to suit various applications. With two keys provided, you can enjoy the convenience of a key removable in both locked and unlocked positions. Crafted from zinc die cast and featuring a 5-disc tumbler, this cam lock combines security with user-friendly functionality.

DiscTumbl CamLock 1-7/16" Matte Nickel

• Key removable in locked or unlocked position
• Zinc die cast, 5 disc tumbler

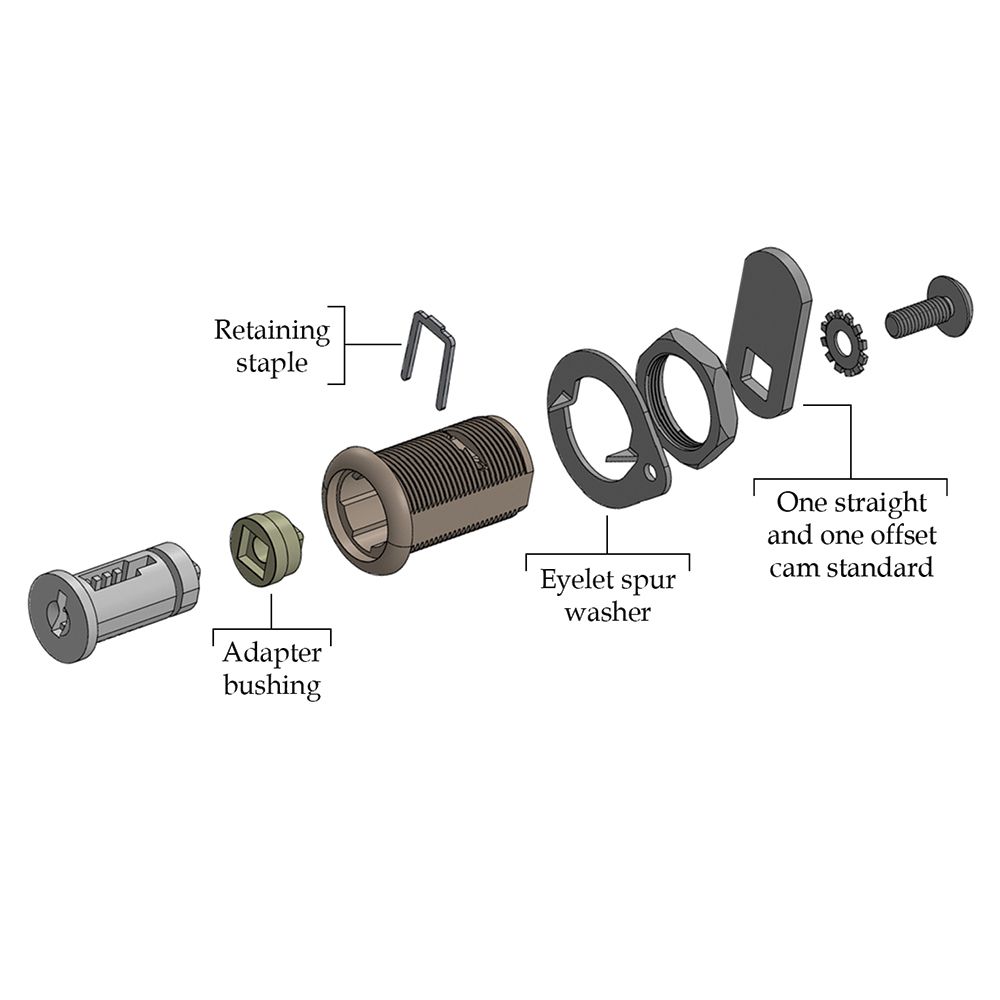

• Standardized plug size - gap filled with adapter bushing allows standardized plug to work with multiple cylinder lengths
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles, including key insertion and removal [E07262]
• Anti-rotation washer - eyelet spur washer can be locked down with screw to prevent rotation
• 2 keys included
• Ships with body and cylinder assembled for fast and easy installation
• Packaged for easy installation - staple retains plug in cylinder, no need to locate & insert keys to install plug into cylinder. Ships without cams attached to body, eliminating the need to dissassemble before inserting into cabinet
• One 1-1/2" straight and one offset cam included, other cams available
