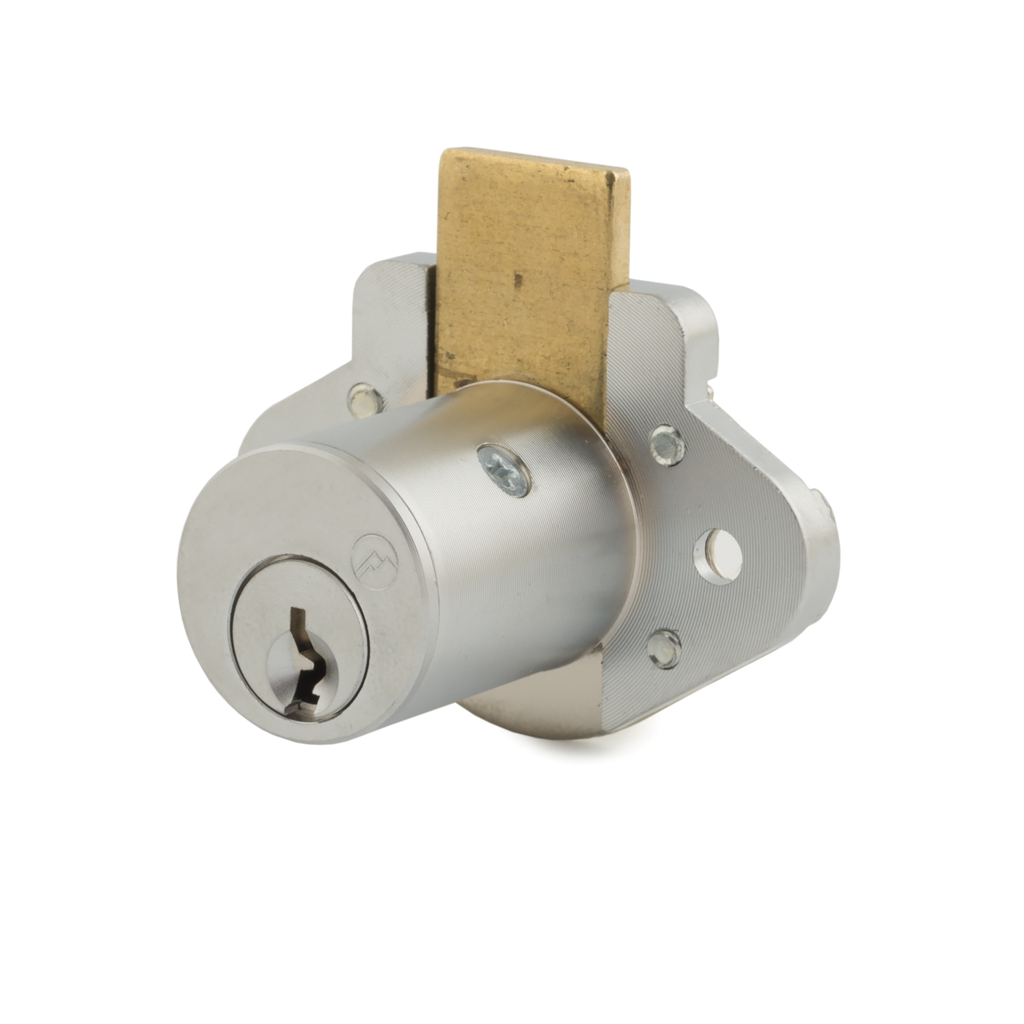

Olympus Lock N078-US26D-KD 1-1/8in Pin Drawer Lock Bolt offers a robust and reliable solution for securing your furniture and cabinets. With its 7/8-inch barrel diameter and Grade 1 rating, this lock is designed for superior durability and performance. The satin chrome finish not only provides a sleek aesthetic but also ensures long-lasting resistance to wear and tear. This versatile lock features a solid brass pin tumbler cylinder, accommodating five pins and allowing for easy rekeying via its innovative set screw cylinder release mechanism. Keyed differently, the N078 ensures that each lock operates uniquely, providing enhanced security. It includes two keys per lock and can be keyed alike or master keyed, making it adaptable to various security needs. Designed for easy installation, the N078 is ideal for drawer applications, while its reversible design allows it to be configured for left or right-handed doors. The zinc die-cast body adds to its strength, ensuring it withstands everyday use. With compatibility for the N Series keyway, this lock is an excellent choice for professionals and homeowners looking for dependable security solutions. Enhance your access control with the Olympus Lock N078-US26D-KD, a smart investment in safety and convenience.

1-1/8in Pin Drawer Lock Bolt, National D4292/ NA12 Keyway, Keyed Different, 7/8in Barrel Diameter, Grade 1, 626/US26D Satin Chrome

Provide Olympus N078R/N078L (door) and N078 (drawer) easily rekeyable cabinet locks such as manufactured by Olympus Lock, Inc. All locks to include: .101 diameter pins, working cylinder slides and forwardly removable cylinders for rekeying without totally disassembling lock body. Provide spacers as required for flush fit with outside face of casework material. Locks will include 2 keys per lock and shall be capable of being keyed alike, keyed different and/or master keyed per supplied schedule.

Features:

• N078 - furniture drawer lock
• N078L - cabinet door lock (Left-Hand)
• N078R - cabinet door lock (Right-Hand)
• N078R/N078L - available in US26D finish only
• Easily rekeyable set screw cylinder release mechanism
• Solid brass pin tumbler cylinder drilled for 5 pins
• Barrel lengths: 1-1/8" or 1-3/8" (Specify barrel length when ordering)
• Barrel diameter: 7/8"

Specifications:

• Keying: Can be keyed together with other N Series locks
• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• US Patent Nos: 4,899,563; 4,920,774
• Standard function: Key removable in locked or unlocked position.
• Door locks: Can be reversed between left and right hand.
• Body: Zinc die cast
• Cylinder: Solid brass, pin tumbler
• Cylinder length: 1-1/8" or 1-3/8"

Keying Information:

• Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 4 pin standard
• Stock KA#: 101, 103, 107, 915
• Masterkeyed: 5 pin standard
• Grand masterkeyed: Available
• Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)
• Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)

Finishes:

• US26D - Satin chrome plated
• US4 - Satin brass
