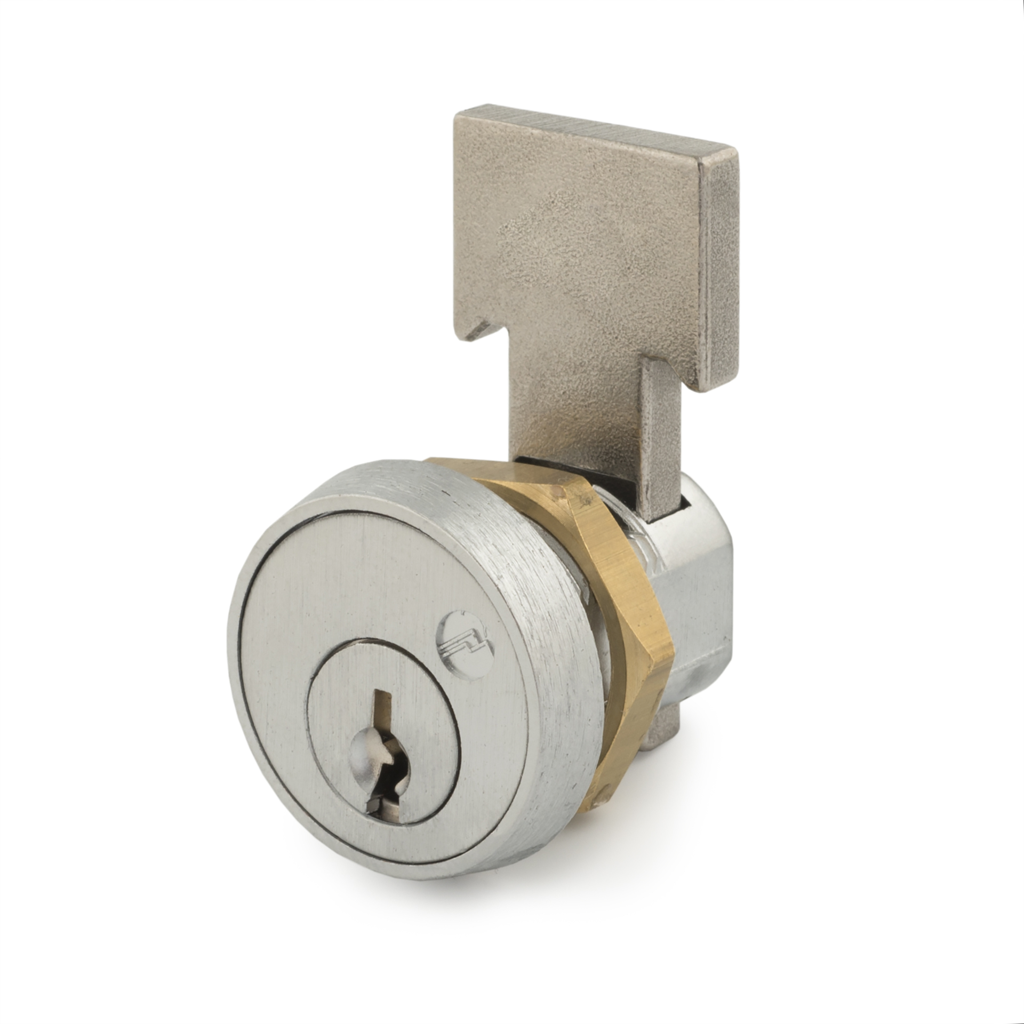

Olympus Lock T37-US26D-KA915 T Bolt Drawer Lock Pin Tumbler offers robust security tailored for your metal drawers. Designed to replace the National C8137 T-bolt lock, this pin tumbler lock features a 4-pin cylinder and a durable 3/4-inch barrel diameter, ensuring reliable function and ease of use. Its Grade 1 rating and stainless steel bolt make it resistant to breakage, providing peace of mind for your storage needs. With a user-friendly design, the T37 allows for easy rekeying via a working top-slide and a cylinder retainer staple mechanism. This eliminates the hassle of removing faceplates and other components, making rekeying a quick and efficient process. The lock includes an insertable T-bolt and a brass mounting nut, ensuring a secure fit in 1/4" thick metal drawers. This lock is compatible with the N Series keyway, allowing it to be keyed alike with other locks in the series. It comes with two keys per lock and can be master keyed for added flexibility. Finished in a sleek satin chrome, the Olympus Lock T37 combines functionality with an attractive appearance, making it an excellent choice for both professionals and discerning homeowners.

T Bolt Drawer Lock Pin Tumbler, National D4292/ NA12 Keyway, Keyed Alike to 915, 3/4in Barrel Diameter, Grade 1, 626/US26D Satin Chrome

Features:

• Easily rekeyable via working top slide and retainer staple cylinder release mechanism
• Directly replaces National C8137 T-bolt lock
• Pin tumbler, 4-pin cylinder
• ANSI/BHMA No. E07051
• For 1/4" thick metal drawers
• Includes: insertable t-bolt and brass mounting nut
• Stainless steel bolt resists breakage
• 26D finish

Specifications:

• Keying: Can be keyed together with other N Series locks
• Rekeyable: Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips.
• US Patent No: 5,038,589
• Standard function: Key removable in locked or unlocked position.
• Retrofits: National C8137
• Body: Zinc die cast
• Cylinder: Zinc die cast, pin tumbler
• Bolt: Stainless steel
• Includes: Brass mounting nut. Spring mounting clip T37-RC is available separately.
• Barrel diameter: 3/4"
• Across flats: 5/8"

Keying Information:

• Keyway: N Series (equivalent to National D4291 4-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 4 pin standard
• Stock KA#: 101, 103, 107, 915, 51001, 51002, 51003, 51004, 51005, 51006, 51007, 51008, 51009, 51010 and groups 001 through 030
• Masterkeyed: 4 pin standard
• Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)

Resources

• Cut Sheet
