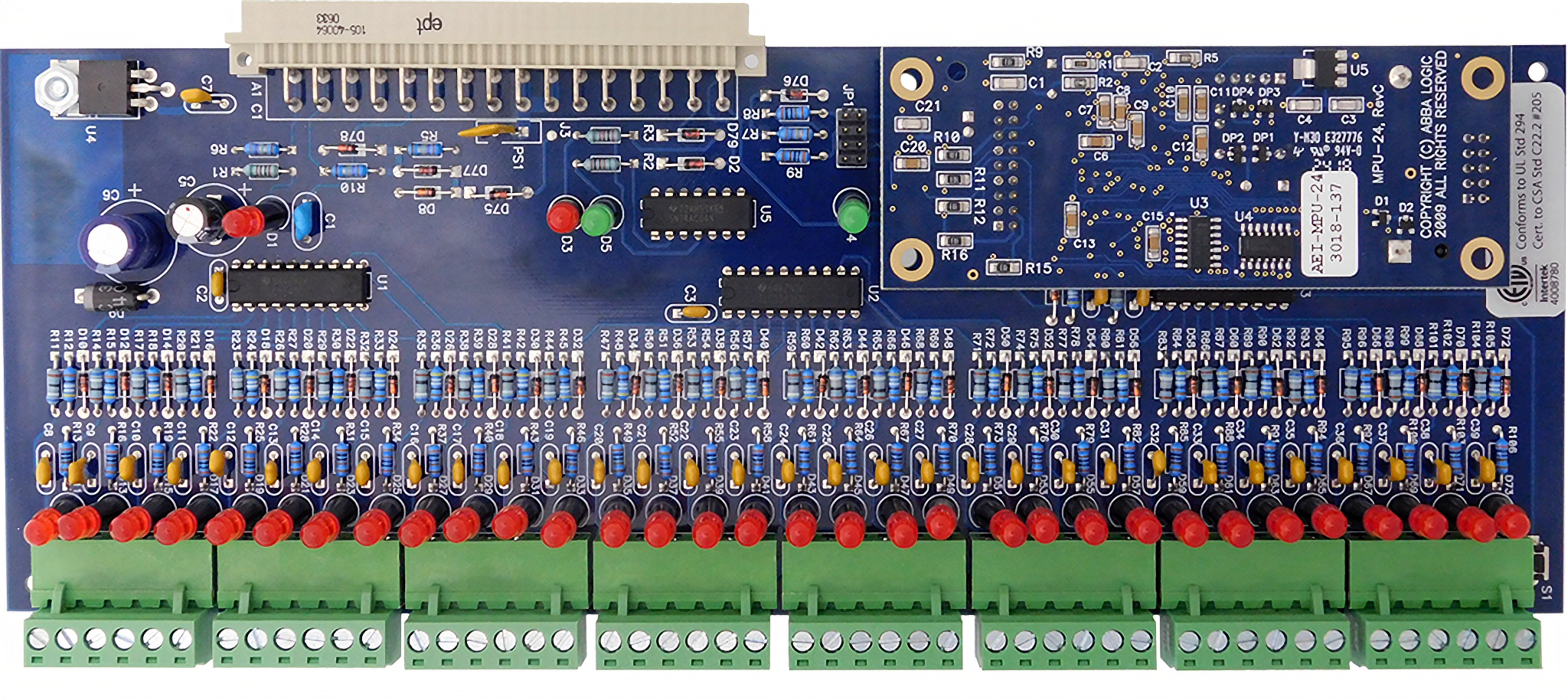

OSSI DMC-MLC-32I I/O Control Panel 32 Inputs

OSSI DMC-MLC-32I I/O Control Panel 32 Inputs offers a sophisticated solution for monitoring system inputs with its advanced programmable logic capabilities. Designed within OSSI's global series (MAC) hardware, this control panel excels at managing both analog and digital inputs, providing unmatched flexibility and reliability. Equipped with distributed intelligence, each controller operates independently, ensuring robust performance even if other components face issues. The MLC-32I features pre-configured ladder logic programming that can be tailored to meet your specific application needs. With an integrated Lonworks communications protocol, the system supports various topologies-star, bus, or loop-allowing up to 63 controllers on a single trunk line. Additionally, connecting a repeater can expand this to another 63 controllers. This control panel boasts 32 programmable inputs that can handle both supervised and non-supervised signals. It supports binary event alarms and analog readings from real-world sensors like temperature and fluid levels. With LED status indicators for each input and removable screw-down terminal blocks, installation and monitoring become hassle-free. Operating within a wide temperature range of -20 to 65°C, the OSSI DMC-MLC-32I is a reliable choice for demanding environments. Save space and enhance your systems with the capability to rack-mount up to seven controllers, maximizing efficiency in any setup.

I/O Control Panel 32 Inputs

The MLC-32I is part of OSSI’s global series (MAC) hardware. This programmable logic controller is built specifically for monitoring system inputs, both analog and digital. The MLC-32I is equipped with distributed intelligence as each controller has its own processor and follows its own program. Ladder logic programming comes pre-configured to make start-up easy, but can be modified to meet your specific application. The distributed processing and peer-to-peer communications makes this system highly robust as each component continues to function regardless of the condition of the rest of the system. The integrated Lonworks communications protocol and flexible communications topology supports up to 63 controllers on one trunk line. If one of the nodes is a repeater, another 63 controllers can be added.

Features:

• Operations:
• Standalone processor
• Program stored in flash memory
• Real-time clock for time/date based operation
• Peer-to-peer capability
• Communications: Integrated Lonworks communications topology allows the system to be configured as a star, bus or loop.
• Programming:
• User-definable ladder logic programming allows system operation to be configured to the needs of the application.
• All points are programmable and can be triggered from system events or Inputs from other controllers.
• Inputs:
• 32 Programmable inputs
• Supervised and non-supervised
• Binary capability for event alarms
• Analog capability for temperature, fluid level and other real-world sensors
• LED status indicators per input
• Removable screw-down terminal blocks
• Rack Mount: Up to 7 controllers can be mounted in an ENC-RM providing 224 Inputs in a small 16 x 16 foot print saving wall space.

Specifications:

• Power:
• 12-15 VDC
• 70 mA base current
• 15 mA per activated input
• 550 mA maximum draw
• Memory backup - 6 months
• Data: 78 KBPS Free Topology twisted pair transceiver provides connection to host and peer-to-peer communications between panels.
• Termination: Communications through rack mount removable screw terminals for up to 14 AWG
• Operating Temperature: -20 to 65C, -4 to 150F
• Dimensions:
• PCB Board: 4"w x 11"h x 1"d
• With connectors: 4.5"w x 11"h x 1"d
• ENC-RM: 16"w x 16"h x 6.75"d
