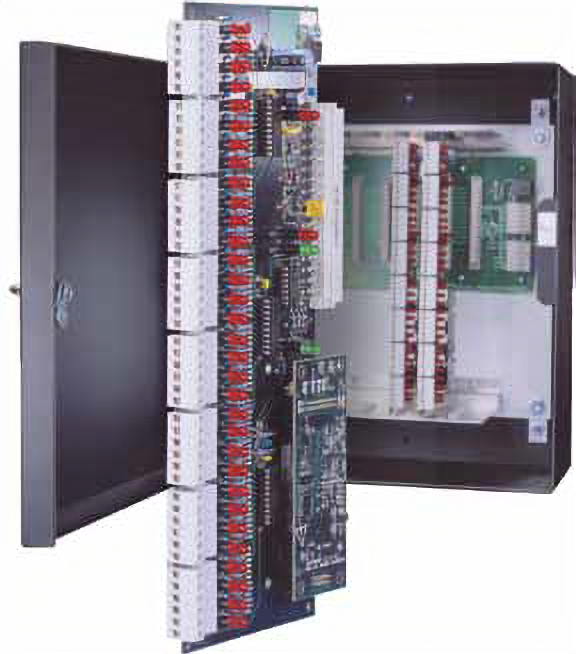

OSSI MC-ENC-RM I/O Controller Rack

OSSI MC-ENC-RM I/O Controller Rack is designed to provide robust input/output management in a compact enclosure. Measuring just 16" x 16", this unit supports up to seven MLC (MAC logic controllers), making it ideal for installations where space is at a premium. Constructed from durable powder-coated 14ga steel, the enclosure ensures longevity and reliability, while the removable door offers flexibility for terminating controllers efficiently. The MC-ENC-RM features an integrated Lonworks communications bus that facilitates network-wide peer-to-peer communication between controllers, significantly reducing installation time. With a power distribution range of 12Vdc to 15Vdc and a capacity of 650mA per panel, it provides optimal performance for your access control needs. The 5A power capability per BP-7 rack ensures that each panel receives adequate resources for seamless operation. Additionally, the removable screw-down terminal blocks simplify panel replacement, allowing for quick adjustments without hassle. For those requiring custom installations, the card cage with the integrated BP-7 backplane can be ordered separately for use in a 19-inch IT rack. The OSSI MC-ENC-RM I/O Controller Rack is a reliable solution for building professionals and knowledgeable homeowners seeking efficient access control and security management.

I/O Controller Rack

The MC-ENC-RM is part of OSSI’s global series of products. This enclosure allows the installer to provide a large quantity of inputs and outputs in a very small footprint. The enclosure measures only 16" x 16" and supports as many as 7 MLC (MAC logic controllers). The rack mount design distributes both Lonworks communication and MLC power to each panel. The panel locking brackets utilize the card cage slide guides for securing boards in place. The card cage is provided with the BP-7 backplane PCB which provides power, data and enclosure tamper terminations. The rack comes with dip switch settable on board termination resistors for network termination. It supports both 52 Ohm and 105 Ohm termination.

Specifications:

• Enclosure:
• Powder coated 14ga steel construction
• Removable door for increased flexibility when terminating controllers
• Support for up to 7 input/output logic controllers
• Power Distribution:
• 12Vdc To 15Vdc
• 650ma per panel
• 5A per BP-7 rack
• Removable screw down terminal blocks for easy panel replacement
• The card cage with integrated BP-7 backplane can be ordered separately if custom installation in a 19in IT rack is required
• Communications:
• Integrated Lonworks communications buss
• Supports network wide peer to peer communication between controllers
• Complete power and data distribution between panels reducing installation time

Features

• Integrated Lonworks communications buss
• Support for up to 7 input/output logic controllers
• Powder coated 14ga steel construction
• Complete power and data distribution between panels reducing installation time
• Power Distribution:
• Supports network wide peer to peer communication between controllers
• Removable screw down terminal blocks for easy panel replacement
• Removable door for increased flexibility when terminating controllers
• The card cage with integrated BP-7 backplane can be ordered separately if custom installation in a 19in IT rack is required
• Enclosure:
• Communications:
• 5A per BP-7 rack
• 12Vdc To 15Vdc
• 650ma per panel

Resources

• Cut Sheet
