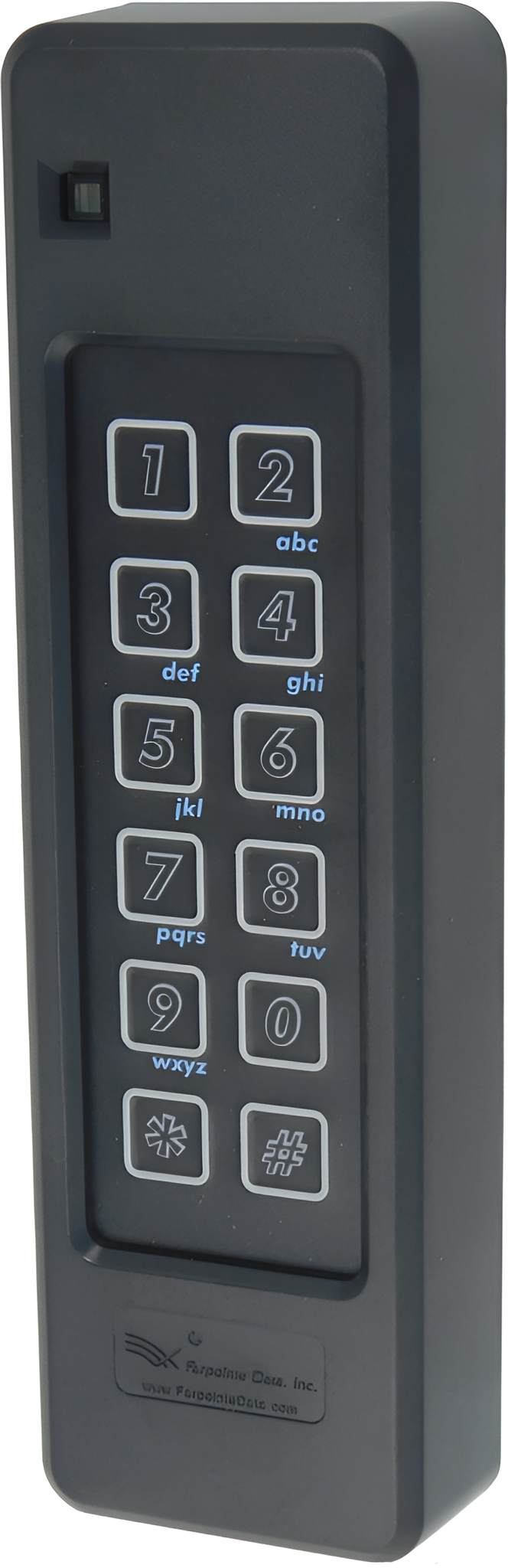

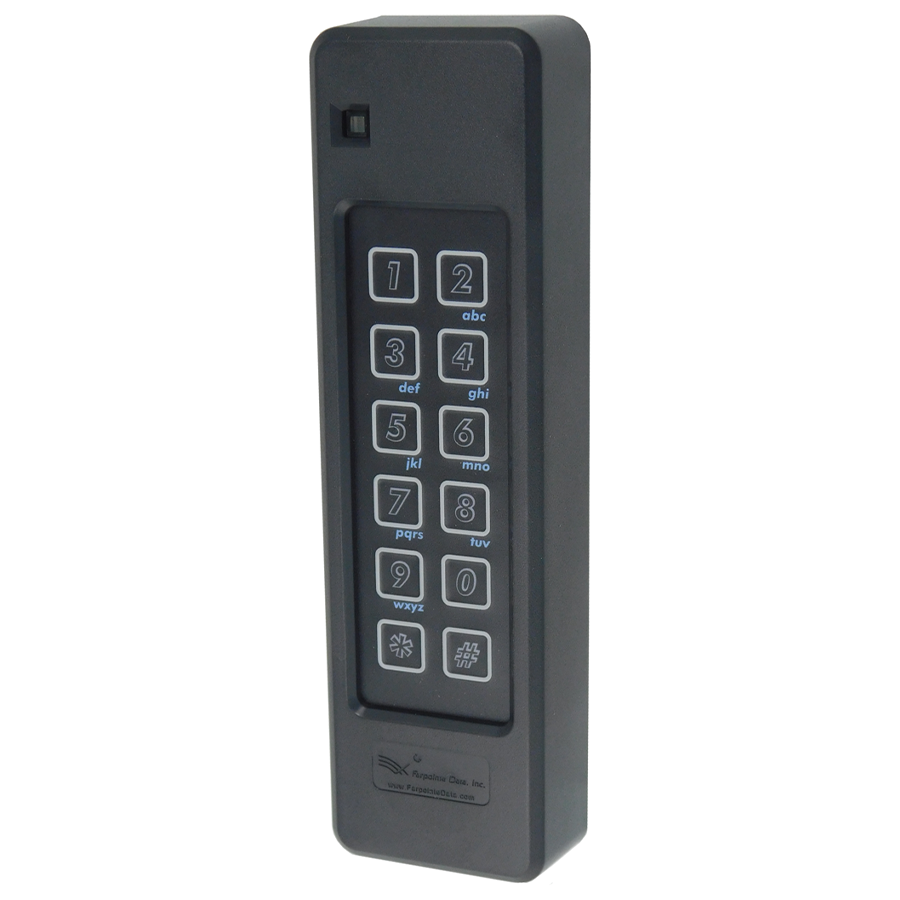

OSSI OS-620 KIT - Mullion Mount Keypad / Prox Reader

OSSI OS-620 KIT - Mullion Mount Keypad / Prox Reader is designed to elevate your electronic security solutions with its advanced features and reliable performance. Utilizing 125 kHz proximity technology, this keypad reader is compatible with a variety of electronic access control systems, supporting both legacy Wiegand and the modern bi-directional Open Supervised Device Protocol (OSDP). Measuring 1.78" W × 6.1" H × 0.91" D and weighing only 4 oz, the OS-620 is compact and unobtrusive, making it ideal for both interior and exterior door applications across diverse environments such as retail, commercial, industrial, educational, and healthcare facilities. With a current draw of 70 mA typical and a peak of 110 mA at 12 VDC, this device operates efficiently on a voltage range of +5 to 16 VDC. The four-state LED indicator (red, green, amber, and off) provides clear visual feedback, enhancing usability. Certified by FCC, ICC, CE, C-Tick, and UL standards, the OS-620 ensures compliance with the highest safety regulations. With an 8-bit burst keypad output adhering to the 26-bit Wiegand standard, this reader seamlessly integrates into existing security systems, offering reliable access control you can trust.

KIT - Mullion Mount Keypad / Prox Reader

Pyramid P-620-H-A and P-640-H-A sets the electronic security benchmark for 125kHz proximity keypad readers. Based upon proven contactless digital radio frequency identification (RFID) technology, RCI Pyramid readers interface with a wide range of electronic access control systems by complying with either the legacy Wiegand or the latest bi-directional open supervised device protocol (OSDP). They offer value-add features such as MAXSecure, fleaPower and can support several proximity card and tag technologies.

Specifications:

• Technology: 125 kHz standard security mullion keypad reader
• Dimensions: 1.78" W × 6.1" H × 0.91" D (45 mm × 155 mm × 23 mm)
• Weight: 4 oz (113 g)
• Current draw: 70 mA typical, 110 mA peak @ 12 VDC
• Voltage: +5 to 16 VDC
• LED: Four-state standard (red, green, amber, and off)
• Certifications: FCC, ICC, CE, C-Tick, UL standard 294, ULC 60839-11-1
• Keypad output: 8-Bit burst; 26-bit Wiegand standard
• Applications: These readers are suitable for interior or exterior doors and entrance systems in virtually all applications Retail and Commercial; Industrial; Education, Healthcare facilities and more.

Features

• Weight: 4 oz (113 g)
• LED: Four-state standard (red, green, amber, and off)
• Certifications: FCC, ICC, CE, C-Tick, UL standard 294, ULC 60839-11-1
• Voltage: +5 to 16 VDC
• Applications: These readers are suitable for interior or exterior doors and entrance systems in virtually all applications Retail and Commercial; Industrial; Education, Healthcare facilities and more.
• Current draw: 70 mA typical, 110 mA peak @ 12 VDC
• Dimensions: 1.78" W × 6.1" H × 0.91" D (45 mm × 155 mm × 23 mm)
• Keypad output: 8-Bit burst; 26-bit Wiegand standard
• Technology: 125 kHz standard security mullion keypad reader
