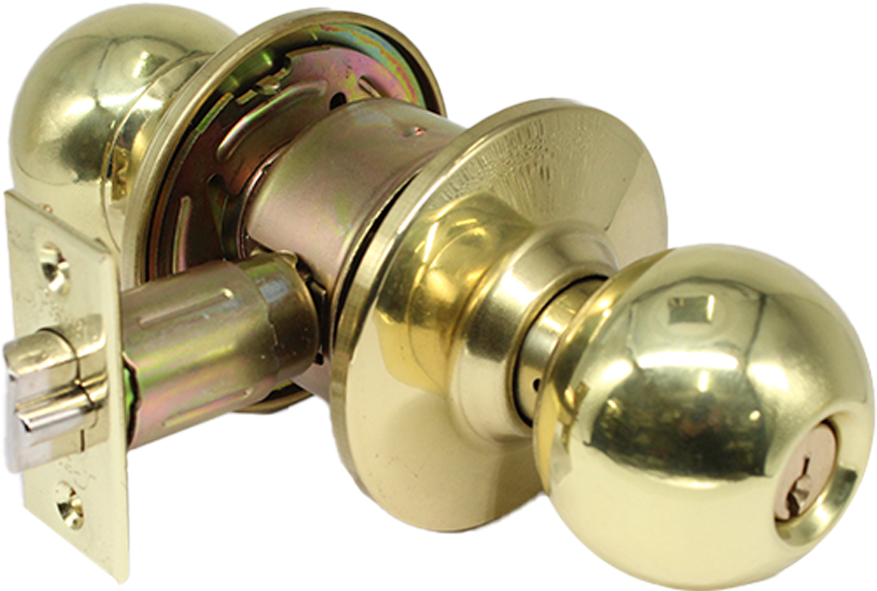

Parker Hardware B9160N3-2 3/4 BS Passage Knob Grade 2Parker Hardware B9160N3-2 3/4 BS Passage Knob Grade 2 provides a reliable and robust solution for your door hardware needs. Designed to meet ANSI-A156-2, Series 4000, Grade 2 specifications, this heavy-duty cylindrical lock is perfect for various applications, including residential and commercial settings. The B9160N3-2 features a solid brass 1/2" throw latch that ensures durability and smooth operation. With a backset of 2-3/4" (optional 2-3/8") and compatibility with door thicknesses ranging from 1-3/8" to 1-3/4", this lock is versatile enough to fit most standard doors. The non-handed design allows for easy installation and flexibility in application. Included with the lock are two keys, and the cylinder accepts Lori plugs, with options for master keying to enhance security. The 4-7/8" A.S.A strike plate provides a secure fit, while the polished brass finish adds an elegant touch to your hardware. The package includes all necessary parts and installation instructions, making the installation process straightforward. Parker Hardware's B9160N3-2 is an excellent choice for anyone looking to enhance security without compromising on style or functionality.
Passage Knob Grade 2
Notice: The info below is not item specific.
Heavy duty cylindrical locks are available in entry, passage, privacy and storeroom/classroom functions. These locks meet ANSI-A156-2, Series 4000, grade 2 specifications, and include SC-1 keyway #1145, or Arrow keyway K. The tumbler is a six pin keyed to five pins, and the exit from the inside is immediate, for panic-resistant use. The locks will accept AWI or Lori plugs, and the keyed alike numbering system allows the buyer to keep and repeat the same key order for later orders. All parts, screws and installation instruction are included in the color coded packaging that makes stock-keeping easy.
Specifications:
- Backset: 2-3/4", optional- 2-3/8"
- Door Thickness: 1-3/8" to 1-3/4"
- Latch: Brass 1/2" throw
- Latch Front: 1" X 2-1/4" for 2-3/8" backset or 1-1/8" X 2-1/4" for 2-3/4" backset.
- Strike: 4-7/8" A.S.A, option—2-3/4" T strike, or 2-1/4" full lip strike.
- Cylinder: Solid brass 6 pin keyed 5, SC-1 keyway, #1145 or AR-1 keyway. Locks will accept Lori plugs. Master key and grand master key available.
- Keys: 2 per lock
- Handed: Non-handed
Series Functions:
- Entry lock
- Passage
- Privacy lock
- Storeroom lock
- Classroom lock
- Dummy knobs
Finishes:
- 03 - Polished brass
- 32 - Stainless steel
Features
- Latch: Brass 1/2" throw
- Backset: 2-3/4", optional- 2-3/8"
- Latch Front: 1" X 2-1/4" for 2-3/8" backset or 1-1/8" X 2-1/4" for 2-3/4" backset.
- Keys: 2 per lock
- Handed: Non-handed
- Cylinder: Solid brass 6 pin keyed 5, SC-1 keyway, #1145 or AR-1 keyway. Locks will accept Lori plugs. Master key and grand master key available.
- Door Thickness: 1-3/8" to 1-3/4"
- Strike: 4-7/8" A.S.A, option—2-3/4" T strike, or 2-1/4" full lip strike.
Attributes
Alternate Codes: 116364, 6U15OB3, 871019, A10SORB605-34, A10SORB60534, A10SORB605-38, A10SORB60538, B9160N3-2 3/4 BS, B9160N3234BS, B9160N3-34, B9160N334, B9160N3-38, B9160N338, MK01BD3, PARB9160N3-34
Backset: 2-3/4"
Category: Commercial Locks, Cylindrical Knobs, Lock Sets
Cylinder Included: No
Cylinder Type: None
Door Bore Size: 2-1/8"
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Polished Brass
Function: Passage
Grade: Grade 2
Handing: Field Reversible
Knob Style: Ball Knob
Knob/ Lever Design: Ball
Knob/ Lever Style: Knob
Latch Bolt Face Type: Connectivity
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Springlatch
Lock Category: Cylindrical Lock
Rose/ Escutcheon Size: 3"
Rose/ Escutcheon Style: Rose
Series: B9160 Series
Strike Size: 4-7/8" x 1-1/4"
