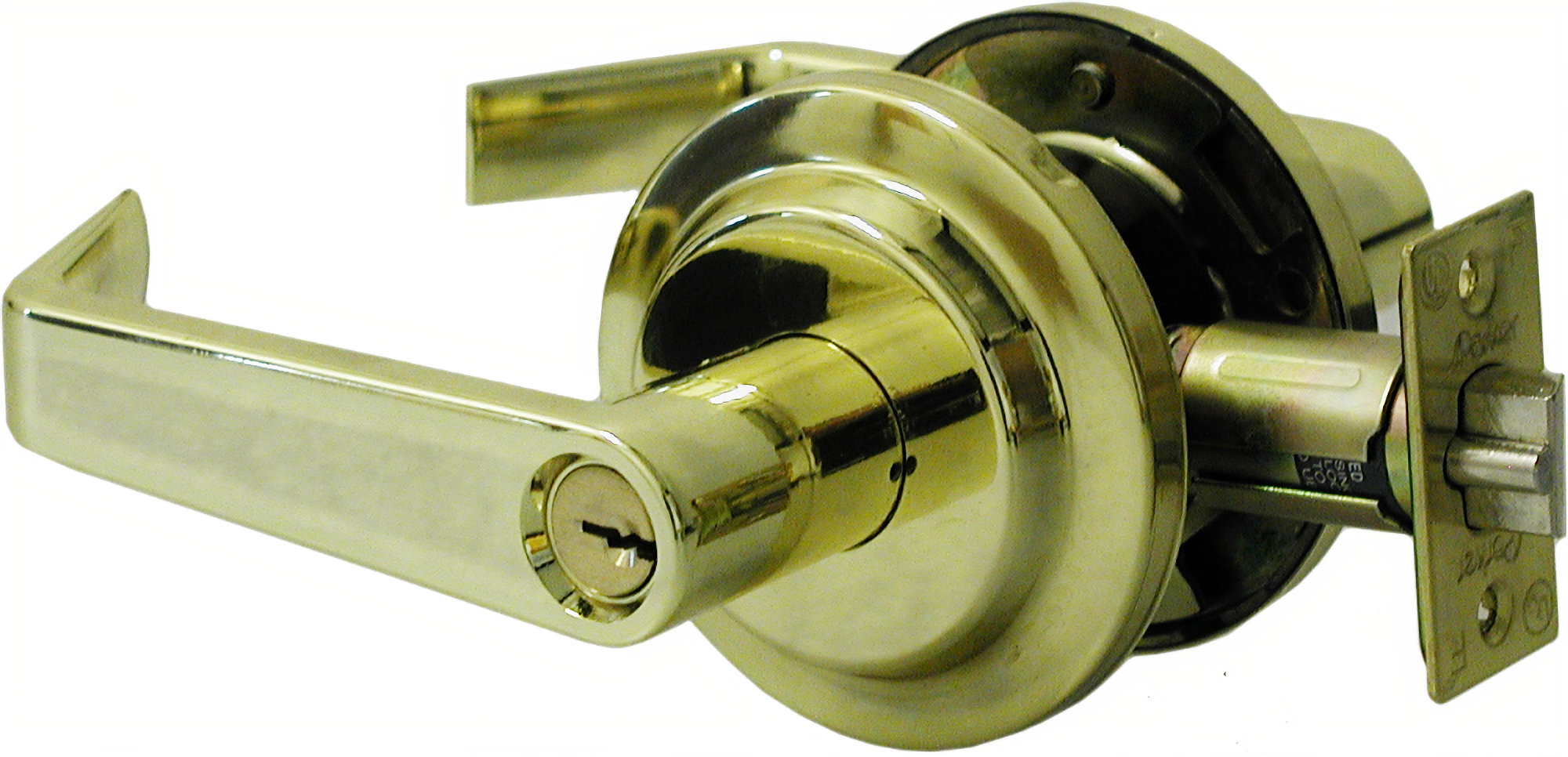

Parker Hardware SL7160A3 Entry Lever Grade 2

Parker Hardware SL7160A3 Entry Lever Grade 2 offers a robust solution for commercial and residential entryways, making it an ideal choice for building professionals and knowledgeable homeowners alike. This leverset is designed with a two-step rose, ensuring it is perfect for retrofitting existing doors while also meeting stringent ADA requirements. With a Grade 2 rating, it exceeds ANSI A156.2 series 4000 standards, boasting over 400,000 operating cycles for durability. Crafted from cold-rolled steel, the SL7160A3 features a reversible, non-handed design that accommodates doors ranging from 1-3/8" to 1-3/4" thick. The unit includes a UL-listed latch bolt with a 2-3/4" backset and a solid brass 6-pin SC-1 keyway for enhanced security. The latch bolt is 1/2" throw and is UL listed for three-hour fire ratings, providing peace of mind in emergency situations. Additionally, the SL7160A3 lever includes full 5" long handles across all functions, ensuring ease of use. Its convertible posts and separate lever spring mechanisms help prevent sag over time, making it a reliable choice for high-traffic areas. Available in multiple finishes, this leverset adds both functionality and style to your door hardware collection.

Entry Lever Grade 2

SL7160 Series with two step Rose is ideal for retrofitting. UL listed, ADA approved grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. Leversets meet ANSI A156.2 series 4000 grade standards and more than fulfill ADA requirements. The ANSI series 4000 standard exceeds 400,000 operating cycles.

Features:

• Two step rose
• Cold rolled steel housing
• Reversible, non-handed
• Fits doors from 1-3⁄8" to 1-3⁄4" thick
• 2-3⁄4" backset UL listed latch bolt. Standard for all functions.
• 2-3⁄8" backset latchbolt available
• 1-1⁄4" x 4-7⁄8" ANSI strike. Standard for all leversets, all functions.
• 6 pin solid brass SC-1 keyway, ILCO #1145, keyed to 5 pins
• Special keying available (master and grand master)
• 2 keys
• Separate lever spring mechanisms help prevent sag
• 1⁄2" throw solid brass latch-bolt, UL listed, three hour fire rated
• Full 5" long handles on all levers in all functions
• Accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs
• Convertible Posts

SL7160 Grade 2 Leverset with Two Step Rose:

• Entry Lock Boxed:
• SL7160A03K2: Polished brass keyed alike in 2
• SL7160A03KD: Polished brass keyed different
• SL7160A03KU (add KA #): Polished brass key
• SL7160A03MKD: Polished brass Master keyed
• SL7160A03KDE: Polished brass keyed different 2-3⁄8" B.S.
• CSL7160A03KD: Polished brass keyed different (clutch)
• SL7160A10BKD: Oil Rubbed bronze keyed different
• SL7160A10BKU (add KA #): Oil rubbed bronze key
• SL7160A26DK2: Dull chrome keyed Alike in 2
• SL7160A26DKD: Dull chrome keyed different
• CSL7160A26DKD: Dull chrome keyed different (clutch)
• SL7160A26DKU (add KA #): Dull chrome key
• SL7160A26DMKD: Dull chrome Master keyed
• SL7160A26DKDE: Dull chrome keyed different 2-3⁄8" B.S.
• SL7160A26KD: Polished chrome keyed different
• SL7160A26KU: Polished chrome key #U
• Passage Set Boxed:
• SL7160N03: Polished brass
• SL7160N10B: Oil rubbed bronze
• SL7160N26: Polished chrome
• SL7160N26D: Dull chrome
• SL7160N26DE: Dull chrome 2-3/8" B.S.
• Privacy Lock Boxed:
• SL7160P03: Polished brass
• SL7160P10B: Oil rubbed bronze
• SL7160P26: Polished chrome
• SL7160P26D: Dull chrome
• SL7160P26DE: Dull chrome 2-3/8" B.S.
• Storeroom Lock Boxed:
• SL7160D03: Polished brass
• CSL7160D03: Polished brass (clutch)
• SL7160D10B: Oil rubbed bronze
• SL7160D26: Polished chrome
• SL7160D26D: Dull chrome
• CSL7160D26D: Dull chrome (clutch)
• SL7160D26DKU: Dull chrome key #U
• SL7160D26DE: Dull chrome 2-3⁄8" B.S.
• Classroom Lock Boxed:
• SL7160R03: Polished brass
• CSL7160R03: Polished brass (clutch)
• SL7160R10B: Oil rubbed bronze
• SL7160R26: Polished chrome
• SL7160R26D: Dull chrome
• CSL7160R26D: Dull chrome (clutch)
• SL7160R26DKU: Dull chrome key #U
• SL7160R26DK2: Dull chrome keyed alike in 2
• Dummy Levers Boxed:
• SL7160Y03: Bright brass
• SL7160Y10B: Oil rubbed bronze
• SL7160Y26: Polished chrome
• SL7160Y26D: Dull chrome
