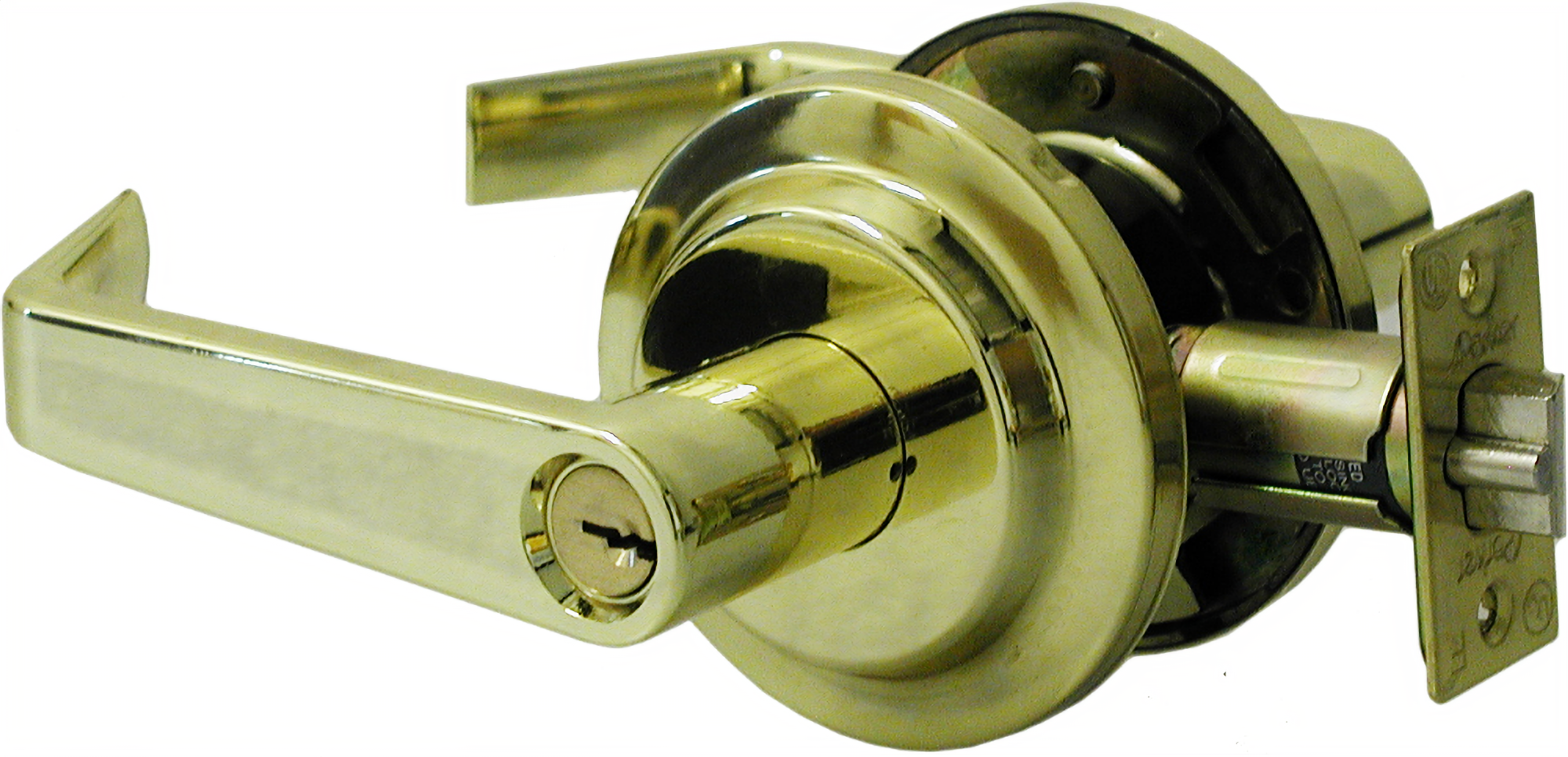

Parker Hardware SL7160D3 Storeroom Lever Grade 2

Parker Hardware SL7160D3 Storeroom Lever Grade 2 combines durability and functionality, making it an ideal choice for commercial applications. This leverset features a two-step rose design, perfect for retrofitting into existing doors. With a UL listing and ADA approval, it meets the highest standards for accessibility and safety. Crafted from cold-rolled steel, the SL7160D3 is reversible and fits doors ranging from 1-3/8" to 1-3/4" thick, ensuring versatility for various installations. The 2-3/4" backset latch bolt is standard across all functions, while a 2-3/8" option is also available. A solid brass SC-1 keyway provides secure access, and special keying options, including master and grand master configurations, enhance security further. Designed for durability, the SL7160D3 features separate lever spring mechanisms that prevent sagging, alongside a solid brass latch bolt with a 1/2" throw that is UL listed and three-hour fire rated. The full 5" long handles are comfortable to use and compatible with various cylinder plugs. With its ANSI certification for over 400,000 operating cycles, this storeroom leverset ensures long-lasting reliability in high-traffic environments, making it an essential addition to any building's security system.

Storeroom Lever Grade 2

SL7160 Series with two step Rose is ideal for retrofitting. UL listed, ADA approved grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. Leversets meet ANSI A156.2 series 4000 grade standards and more than fulfill ADA requirements. The ANSI series 4000 standard exceeds 400,000 operating cycles.

Features:

• Two step rose
• Cold rolled steel housing
• Reversible, non-handed
• Fits doors from 1-3⁄8" to 1-3⁄4" thick
• 2-3⁄4" backset UL listed latch bolt. Standard for all functions.
• 2-3⁄8" backset latchbolt available
• 1-1⁄4" x 4-7⁄8" ANSI strike. Standard for all leversets, all functions.
• 6 pin solid brass SC-1 keyway, ILCO #1145, keyed to 5 pins
• Special keying available (master and grand master)
• 2 keys
• Separate lever spring mechanisms help prevent sag
• 1⁄2" throw solid brass latch-bolt, UL listed, three hour fire rated
• Full 5" long handles on all levers in all functions
• Accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs
• Convertible Posts

SL7160 Grade 2 Leverset with Two Step Rose:

• Entry Lock Boxed:
• SL7160A03K2: Polished brass keyed alike in 2
• SL7160A03KD: Polished brass keyed different
• SL7160A03KU (add KA #): Polished brass key
• SL7160A03MKD: Polished brass Master keyed
• SL7160A03KDE: Polished brass keyed different 2-3⁄8" B.S.
• CSL7160A03KD: Polished brass keyed different (clutch)
• SL7160A10BKD: Oil Rubbed bronze keyed different
• SL7160A10BKU (add KA #): Oil rubbed bronze key
• SL7160A26DK2: Dull chrome keyed Alike in 2
• SL7160A26DKD: Dull chrome keyed different
• CSL7160A26DKD: Dull chrome keyed different (clutch)
• SL7160A26DKU (add KA #): Dull chrome key
• SL7160A26DMKD: Dull chrome Master keyed
• SL7160A26DKDE: Dull chrome keyed different 2-3⁄8" B.S.
• SL7160A26KD: Polished chrome keyed different
• SL7160A26KU: Polished chrome key #U
• Passage Set Boxed:
• SL7160N03: Polished brass
• SL7160N10B: Oil rubbed bronze
• SL7160N26: Polished chrome
• SL7160N26D: Dull chrome
• SL7160N26DE: Dull chrome 2-3/8" B.S.
• Privacy Lock Boxed:
• SL7160P03: Polished brass
• SL7160P10B: Oil rubbed bronze
• SL7160P26: Polished chrome
• SL7160P26D: Dull chrome
• SL7160P26DE: Dull chrome 2-3/8" B.S.
• Storeroom Lock Boxed:
• SL7160D03: Polished brass
• CSL7160D03: Polished brass (clutch)
• SL7160D10B: Oil rubbed bronze
• SL7160D26: Polished chrome
• SL7160D26D: Dull chrome
• CSL7160D26D: Dull chrome (clutch)
• SL7160D26DKU: Dull chrome key #U
• SL7160D26DE: Dull chrome 2-3⁄8" B.S.
• Classroom Lock Boxed:
• SL7160R03: Polished brass
• CSL7160R03: Polished brass (clutch)
• SL7160R10B: Oil rubbed bronze
• SL7160R26: Polished chrome
• SL7160R26D: Dull chrome
• CSL7160R26D: Dull chrome (clutch)
• SL7160R26DKU: Dull chrome key #U
• SL7160R26DK2: Dull chrome keyed alike in 2
• Dummy Levers Boxed:
• SL7160Y03: Bright brass
• SL7160Y10B: Oil rubbed bronze
• SL7160Y26: Polished chrome
• SL7160Y26D: Dull chrome
