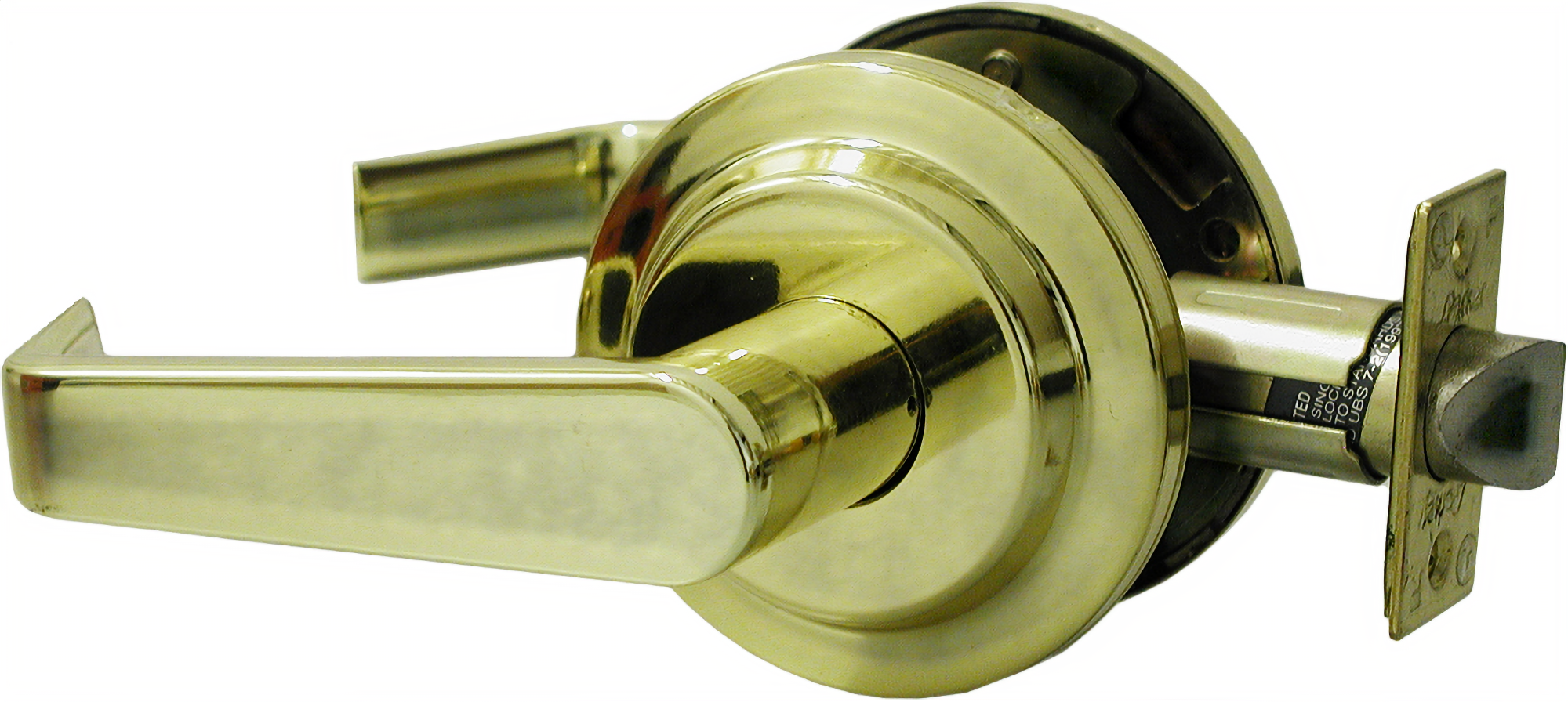

Parker Hardware SL7160N3 Passage Lever Grade 2

Parker Hardware SL7160N3 Passage Lever Grade 2 offers a robust solution for a variety of door applications, making it an ideal choice for both commercial and residential settings. This leverset features a two-step rose design that simplifies retrofitting, while its cold-rolled steel housing ensures long-lasting durability. Designed to meet UL and ADA standards, the SL7160N3 is not only aesthetically pleasing but also functional, accommodating doors ranging from 1-3/8" to 1-3/4" thick. Its reversible, non-handed design allows for easy installation on either side of the door, enhancing versatility. The 2-3/4" backset UL listed latch bolt provides reliable security, and the full 5" long handles across all functions ensure ease of use. The latch bolt features a 1/2" throw and is UL listed with a three-hour fire rating, ensuring safety in emergencies. Additionally, this leverset includes a 6-pin solid brass SC-1 keyway and comes with two keys, allowing for special keying options, including master keying. With its combination of style, functionality, and compliance with ANSI A156.2 series 4000 grade standards, the Parker Hardware SL7160N3 Passage Lever Grade 2 is an exceptional choice for professionals and discerning homeowners alike.

Passage Lever Grade 2

SL7160 Series with two step Rose is ideal for retrofitting. UL listed, ADA approved grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. Leversets meet ANSI A156.2 series 4000 grade standards and more than fulfill ADA requirements. The ANSI series 4000 standard exceeds 400,000 operating cycles.

Features:

• Two step rose
• Cold rolled steel housing
• Reversible, non-handed
• Fits doors from 1-3⁄8" to 1-3⁄4" thick
• 2-3⁄4" backset UL listed latch bolt. Standard for all functions.
• 2-3⁄8" backset latchbolt available
• 1-1⁄4" x 4-7⁄8" ANSI strike. Standard for all leversets, all functions.
• 6 pin solid brass SC-1 keyway, ILCO #1145, keyed to 5 pins
• Special keying available (master and grand master)
• 2 keys
• Separate lever spring mechanisms help prevent sag
• 1⁄2" throw solid brass latch-bolt, UL listed, three hour fire rated
• Full 5" long handles on all levers in all functions
• Accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs
• Convertible Posts

SL7160 Grade 2 Leverset with Two Step Rose:

• Entry Lock Boxed:
• SL7160A03K2: Polished brass keyed alike in 2
• SL7160A03KD: Polished brass keyed different
• SL7160A03KU (add KA #): Polished brass key
• SL7160A03MKD: Polished brass Master keyed
• SL7160A03KDE: Polished brass keyed different 2-3⁄8" B.S.
• CSL7160A03KD: Polished brass keyed different (clutch)
• SL7160A10BKD: Oil Rubbed bronze keyed different
• SL7160A10BKU (add KA #): Oil rubbed bronze key
• SL7160A26DK2: Dull chrome keyed Alike in 2
• SL7160A26DKD: Dull chrome keyed different
• CSL7160A26DKD: Dull chrome keyed different (clutch)
• SL7160A26DKU (add KA #): Dull chrome key
• SL7160A26DMKD: Dull chrome Master keyed
• SL7160A26DKDE: Dull chrome keyed different 2-3⁄8" B.S.
• SL7160A26KD: Polished chrome keyed different
• SL7160A26KU: Polished chrome key #U
• Passage Set Boxed:
• SL7160N03: Polished brass
• SL7160N10B: Oil rubbed bronze
• SL7160N26: Polished chrome
• SL7160N26D: Dull chrome
• SL7160N26DE: Dull chrome 2-3/8" B.S.
• Privacy Lock Boxed:
• SL7160P03: Polished brass
• SL7160P10B: Oil rubbed bronze
• SL7160P26: Polished chrome
• SL7160P26D: Dull chrome
• SL7160P26DE: Dull chrome 2-3/8" B.S.
• Storeroom Lock Boxed:
• SL7160D03: Polished brass
• CSL7160D03: Polished brass (clutch)
• SL7160D10B: Oil rubbed bronze
• SL7160D26: Polished chrome
• SL7160D26D: Dull chrome
• CSL7160D26D: Dull chrome (clutch)
• SL7160D26DKU: Dull chrome key #U
• SL7160D26DE: Dull chrome 2-3⁄8" B.S.
• Classroom Lock Boxed:
• SL7160R03: Polished brass
• CSL7160R03: Polished brass (clutch)
• SL7160R10B: Oil rubbed bronze
• SL7160R26: Polished chrome
• SL7160R26D: Dull chrome
• CSL7160R26D: Dull chrome (clutch)
• SL7160R26DKU: Dull chrome key #U
• SL7160R26DK2: Dull chrome keyed alike in 2
• Dummy Levers Boxed:
• SL7160Y03: Bright brass
• SL7160Y10B: Oil rubbed bronze
• SL7160Y26: Polished chrome
• SL7160Y26D: Dull chrome
