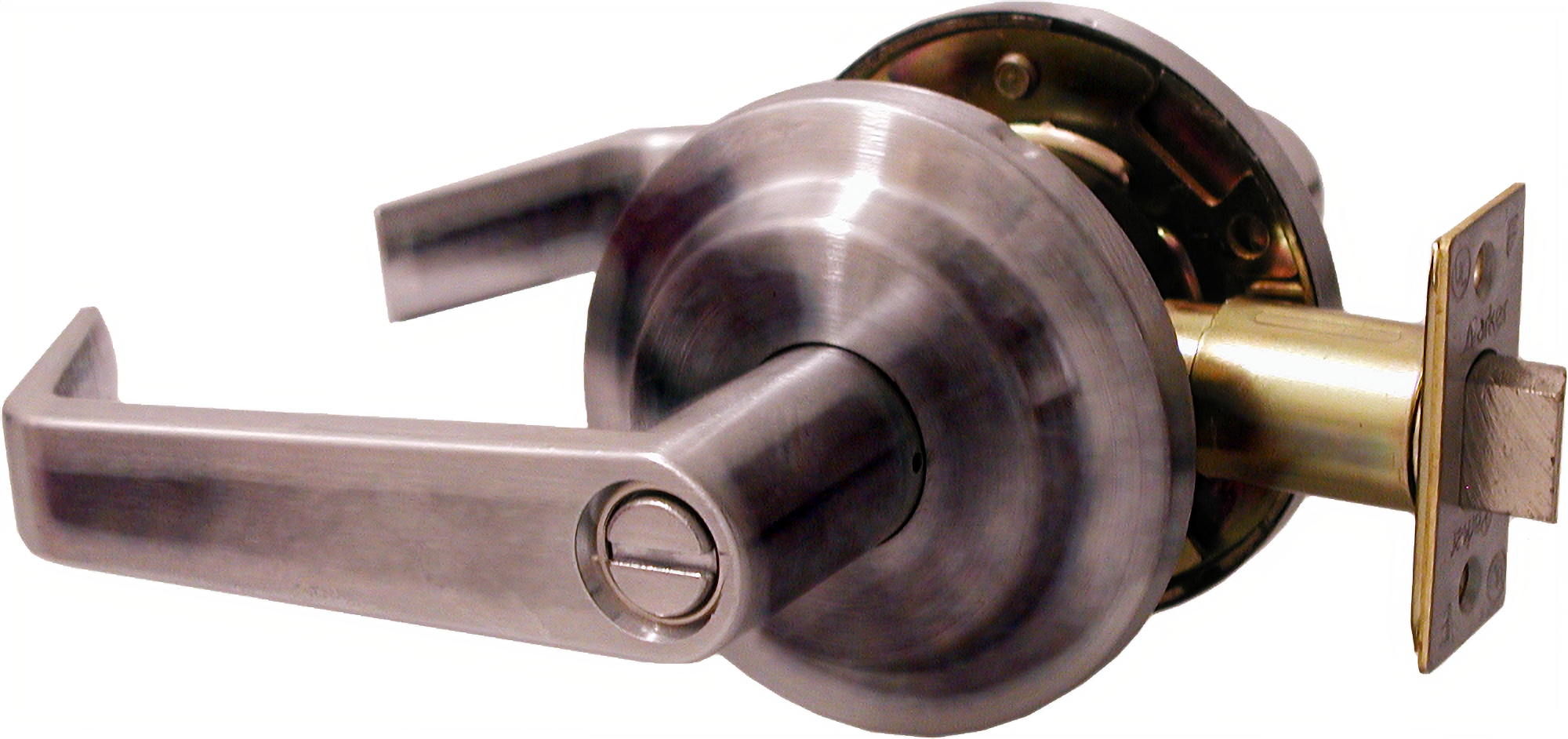

Parker Hardware SL7160P26D Privacy Lever Grade 2

Parker Hardware SL7160P26D Privacy Lever Grade 2 offers a reliable and stylish solution for doors requiring privacy functionality. Designed with a two-step rose, this leverset is perfect for retrofitting in various settings, including residential and commercial spaces. It is UL listed and ADA approved, ensuring compliance with accessibility standards while maintaining a sleek appearance. Constructed from cold-rolled steel, the SL7160P26D features a reversible, non-handed design that fits doors ranging from 1-3/8" to 1-3/4" thick. Its durable components include a 6-pin solid brass SC-1 keyway, a 1/2" throw solid brass latch-bolt, and separate lever spring mechanisms to prevent sagging over time. The latchbolt is UL listed and three-hour fire rated, providing an extra layer of security. With a striking finish in satin chrome, this leverset also meets ANSI A156.2 series 4000 grade standards, ensuring over 400,000 operating cycles. The 2-3/4" backset UL listed latch bolt is standard for all functions, with a 1-1/4" x 4-7/8" ANSI strike included. This product is versatile, accommodating various keying options and cylinder plugs, making it an excellent choice for both privacy and security needs.

Privacy Lever Grade 2

SL7160 Series with two step Rose is ideal for retrofitting. UL listed, ADA approved grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. Leversets meet ANSI A156.2 series 4000 grade standards and more than fulfill ADA requirements. The ANSI series 4000 standard exceeds 400,000 operating cycles.

Features:

• Two step rose
• Cold rolled steel housing
• Reversible, non-handed
• Fits doors from 1-3⁄8" to 1-3⁄4" thick
• 2-3⁄4" backset UL listed latch bolt. Standard for all functions.
• 2-3⁄8" backset latchbolt available
• 1-1⁄4" x 4-7⁄8" ANSI strike. Standard for all leversets, all functions.
• 6 pin solid brass SC-1 keyway, ILCO #1145, keyed to 5 pins
• Special keying available (master and grand master)
• 2 keys
• Separate lever spring mechanisms help prevent sag
• 1⁄2" throw solid brass latch-bolt, UL listed, three hour fire rated
• Full 5" long handles on all levers in all functions
• Accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs
• Convertible Posts

SL7160 Grade 2 Leverset with Two Step Rose:

• Entry Lock Boxed:
• SL7160A03K2: Polished brass keyed alike in 2
• SL7160A03KD: Polished brass keyed different
• SL7160A03KU (add KA #): Polished brass key
• SL7160A03MKD: Polished brass Master keyed
• SL7160A03KDE: Polished brass keyed different 2-3⁄8" B.S.
• CSL7160A03KD: Polished brass keyed different (clutch)
• SL7160A10BKD: Oil Rubbed bronze keyed different
• SL7160A10BKU (add KA #): Oil rubbed bronze key
• SL7160A26DK2: Dull chrome keyed Alike in 2
• SL7160A26DKD: Dull chrome keyed different
• CSL7160A26DKD: Dull chrome keyed different (clutch)
• SL7160A26DKU (add KA #): Dull chrome key
• SL7160A26DMKD: Dull chrome Master keyed
• SL7160A26DKDE: Dull chrome keyed different 2-3⁄8" B.S.
• SL7160A26KD: Polished chrome keyed different
• SL7160A26KU: Polished chrome key #U
• Passage Set Boxed:
• SL7160N03: Polished brass
• SL7160N10B: Oil rubbed bronze
• SL7160N26: Polished chrome
• SL7160N26D: Dull chrome
• SL7160N26DE: Dull chrome 2-3/8" B.S.
• Privacy Lock Boxed:
• SL7160P03: Polished brass
• SL7160P10B: Oil rubbed bronze
• SL7160P26: Polished chrome
• SL7160P26D: Dull chrome
• SL7160P26DE: Dull chrome 2-3/8" B.S.
• Storeroom Lock Boxed:
• SL7160D03: Polished brass
• CSL7160D03: Polished brass (clutch)
• SL7160D10B: Oil rubbed bronze
• SL7160D26: Polished chrome
• SL7160D26D: Dull chrome
• CSL7160D26D: Dull chrome (clutch)
• SL7160D26DKU: Dull chrome key #U
• SL7160D26DE: Dull chrome 2-3⁄8" B.S.
• Classroom Lock Boxed:
• SL7160R03: Polished brass
• CSL7160R03: Polished brass (clutch)
• SL7160R10B: Oil rubbed bronze
• SL7160R26: Polished chrome
• SL7160R26D: Dull chrome
• CSL7160R26D: Dull chrome (clutch)
• SL7160R26DKU: Dull chrome key #U
• SL7160R26DK2: Dull chrome keyed alike in 2
• Dummy Levers Boxed:
• SL7160Y03: Bright brass
• SL7160Y10B: Oil rubbed bronze
• SL7160Y26: Polished chrome
• SL7160Y26D: Dull chrome
