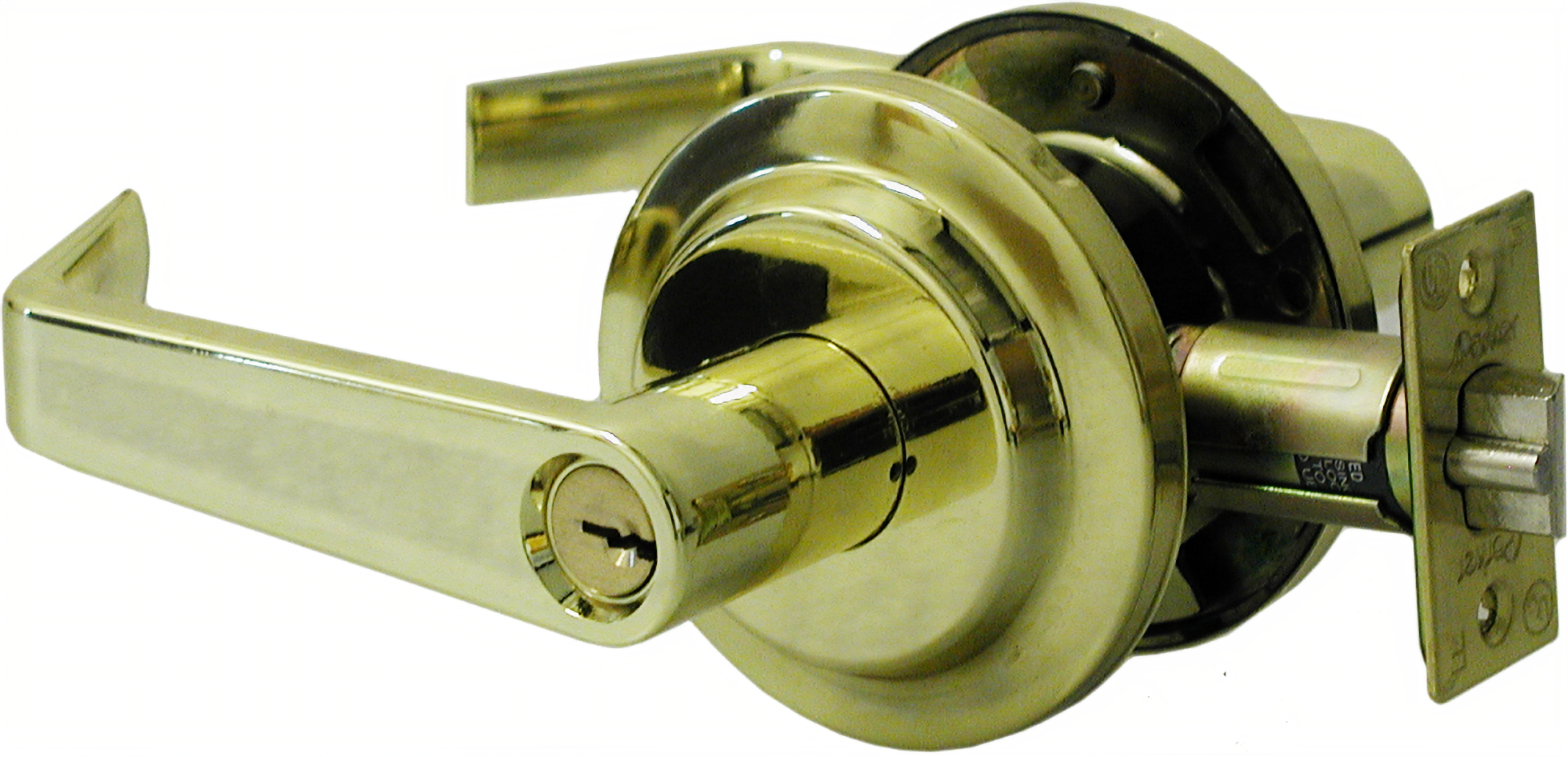

Parker Hardware SL7160R3 Classroom Lever Grade 2

Parker Hardware SL7160R3 Classroom Lever Grade 2 combines durability and accessibility, making it an exceptional choice for educational and commercial settings. Designed with a two-step rose, this leverset is perfect for retrofitting existing doors. Its UL-listed, ADA-approved Grade 2 construction ensures compliance with accessibility standards, offering barrier-free operation for all users. Built from cold-rolled steel, the SL7160R3 features a reversible, non-handed design that fits doors ranging from 1-3/8" to 1-3/4" thick. It comes equipped with a 2-3/4" backset UL-listed latch bolt and a 1/2" throw solid brass latch bolt that is also three-hour fire rated, enhancing safety without compromising functionality. With separate lever spring mechanisms, this leverset helps prevent sagging, ensuring long-lasting performance. The 6-pin solid brass SC-1 keyway allows for standard and special keying options, including master and grand master configurations. The full 5" long handles provide comfortable operation, and the ANSI strike measures 1-1/4" x 4-7/8", meeting all necessary standards. Choose the Parker Hardware SL7160R3 for a reliable, stylish, and efficient locking solution that meets the demands of various applications.

Classroom Lever Grade 2

SL7160 Series with two step Rose is ideal for retrofitting. UL listed, ADA approved grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. Leversets meet ANSI A156.2 series 4000 grade standards and more than fulfill ADA requirements. The ANSI series 4000 standard exceeds 400,000 operating cycles.

Features:

• Two step rose
• Cold rolled steel housing
• Reversible, non-handed
• Fits doors from 1-3⁄8" to 1-3⁄4" thick
• 2-3⁄4" backset UL listed latch bolt. Standard for all functions.
• 2-3⁄8" backset latchbolt available
• 1-1⁄4" x 4-7⁄8" ANSI strike. Standard for all leversets, all functions.
• 6 pin solid brass SC-1 keyway, ILCO #1145, keyed to 5 pins
• Special keying available (master and grand master)
• 2 keys
• Separate lever spring mechanisms help prevent sag
• 1⁄2" throw solid brass latch-bolt, UL listed, three hour fire rated
• Full 5" long handles on all levers in all functions
• Accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs
• Convertible Posts

SL7160 Grade 2 Leverset with Two Step Rose:

• Entry Lock Boxed:
• SL7160A03K2: Polished brass keyed alike in 2
• SL7160A03KD: Polished brass keyed different
• SL7160A03KU (add KA #): Polished brass key
• SL7160A03MKD: Polished brass Master keyed
• SL7160A03KDE: Polished brass keyed different 2-3⁄8" B.S.
• CSL7160A03KD: Polished brass keyed different (clutch)
• SL7160A10BKD: Oil Rubbed bronze keyed different
• SL7160A10BKU (add KA #): Oil rubbed bronze key
• SL7160A26DK2: Dull chrome keyed Alike in 2
• SL7160A26DKD: Dull chrome keyed different
• CSL7160A26DKD: Dull chrome keyed different (clutch)
• SL7160A26DKU (add KA #): Dull chrome key
• SL7160A26DMKD: Dull chrome Master keyed
• SL7160A26DKDE: Dull chrome keyed different 2-3⁄8" B.S.
• SL7160A26KD: Polished chrome keyed different
• SL7160A26KU: Polished chrome key #U
• Passage Set Boxed:
• SL7160N03: Polished brass
• SL7160N10B: Oil rubbed bronze
• SL7160N26: Polished chrome
• SL7160N26D: Dull chrome
• SL7160N26DE: Dull chrome 2-3/8" B.S.
• Privacy Lock Boxed:
• SL7160P03: Polished brass
• SL7160P10B: Oil rubbed bronze
• SL7160P26: Polished chrome
• SL7160P26D: Dull chrome
• SL7160P26DE: Dull chrome 2-3/8" B.S.
• Storeroom Lock Boxed:
• SL7160D03: Polished brass
• CSL7160D03: Polished brass (clutch)
• SL7160D10B: Oil rubbed bronze
• SL7160D26: Polished chrome
• SL7160D26D: Dull chrome
• CSL7160D26D: Dull chrome (clutch)
• SL7160D26DKU: Dull chrome key #U
• SL7160D26DE: Dull chrome 2-3⁄8" B.S.
• Classroom Lock Boxed:
• SL7160R03: Polished brass
• CSL7160R03: Polished brass (clutch)
• SL7160R10B: Oil rubbed bronze
• SL7160R26: Polished chrome
• SL7160R26D: Dull chrome
• CSL7160R26D: Dull chrome (clutch)
• SL7160R26DKU: Dull chrome key #U
• SL7160R26DK2: Dull chrome keyed alike in 2
• Dummy Levers Boxed:
• SL7160Y03: Bright brass
• SL7160Y10B: Oil rubbed bronze
• SL7160Y26: Polished chrome
• SL7160Y26D: Dull chrome
