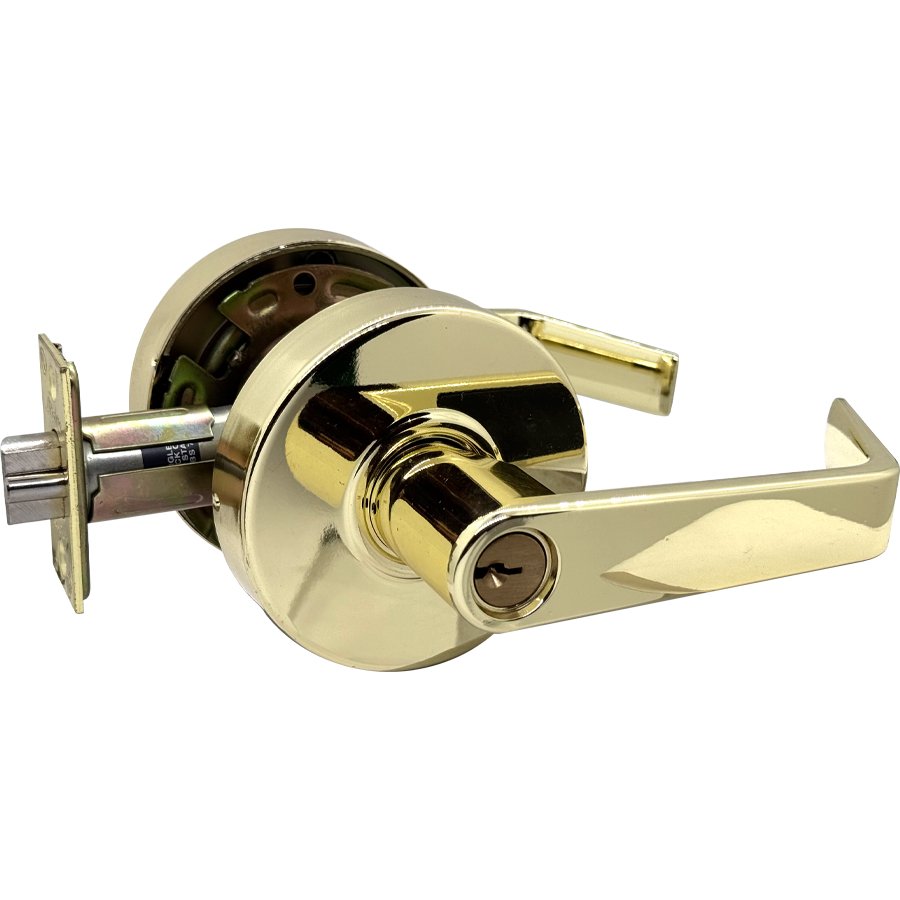

Parker Hardware SL8160A3 Entry Lever Grade 2 combines robust security with user-friendly design, making it an ideal choice for a variety of applications. This UL listed, ADA approved leverset is crafted to meet the highest standards, exceeding ANSI A156.2 series 4000 grade requirements, ensuring durability with over 400,000 operating cycles. Engineered with a cold rolled steel housing, the SL8160A3 features a reversible, non-handed design that fits doors ranging from 1-3/8" to 1-3/4" thick. The 2-3/4" backset UL listed latch bolt guarantees reliable locking capabilities, while the 1/2" throw solid brass latch-bolt is UL listed and fire rated for up to three hours. Notably, the lever set includes separate spring mechanisms that help prevent sag over time, ensuring a consistent performance. Available in a range of finishes, including polished brass and oil rubbed bronze, the SL8160A3 offers flexibility in aesthetics to match any decor. The included 6-pin solid brass SC-1 keyway allows for customized keying options, including master keying. With full 5" long handles and a variety of functions-entry, privacy, classroom, and more-this leverset is the perfect balance of style and security for commercial and residential settings alike.

Entry Lever Grade 2

UL listed, ADA approved grade 2 barrier-free leversets are ready for all ADA and other needs in passage, privacy, storeroom, classroom and dummy functions, in addition to entry models. The customer may provide the lock cylinder and key. Leversets meet ANSI A156.2 series 4000 grade standards and more than fulfill ADA requirements. The ANSI series 4000 standard exceeds 400,000 operating cycles.

Features:

• Single step roses
• Cold rolled steel housing
• Reversible, non-handed
• Fits doors from 1-3⁄8" to 1-3⁄4" thick
• 2-3⁄4" backset UL listed latch bolt. Standard for all functions.
• 2-3⁄8" BS available upon request
• 1-1⁄4" x 4-7⁄8" ANSI strike. Standard for all leversets, all functions.
• 6 pin solid brass SC-1 ILCO #1145 keyway, keyed to 5 pins
• Special keying available (master and grand master)
• 2 keys
• Separate lever spring mechanisms help prevent sag
• 1⁄2" throw solid brass latch-bolt, UL listed, three hour fire rated
• Full 5" long handles on all levers in all functions
• Accepts Lori 1539/1590; ILCO 7035; DOM 1x5HT Medeco 20-200A1 or ASSA cylinder plugs
• Convertible posts

SL8160 Series with Single Step Roses:

• Entry Lock Boxed:
• SL8160A03KD: Polished brass keyed different
• SL8160A03KU: Polished brass KU
• SL8160A04KD: Satin brass plated keyed different
• CSL8160A03KD: Polished brass (Clutch)
• SL8160A04KU: Satin brass plated key #U
• SL8160A10BKD: Oil rubbed bronze keyed different
• CSL8160A10BKD: Oil rubbed bronze (clutch)
• SL8160A10BK_ (add KA#): Oil rubbed bronze key #U, #W, #X
• SL8160A26DKD: Dull chrome keyed different
• CSL8160A26DKD: Dull chrome (clutch)
• SL8160A26DK_ (add KA#): Dull chrome key #U, #W, #X
• SL8160A26DMKD: Dull chrome master keyed
• SL8160A26DK2: Dull chrome keyed alike in 2
• SL8160A26DIC: Dull chrome accepts IC
• SL8160A26KD: Polished chrome keyed different
• SL8160A26KU: Polished chrome key #U
• Passage Set Boxed:
• SL8160N03: Polished brass
• SL8160N10B: Oil rubbed bronze
• SL8160N26: Polished chrome
• SL8160N26D: Dull chrome
• SL8160N04: Satin brass plated
• Privacy Lock Boxed:
• SL8160P03: Polished brass
• SL8160P10B: Oil rubbed bronze
• SL8160P26: Polished chrome
• SL8160P26D: Dull chrome
• SL8160P04: Satin brass plated
• Storeroom Lock Boxed:
• SL8160D03: Polished brass
• CSL8160D03: Polished brass (clutch)
• SL8160D10B: Oil rubbed bronze
• CSL8160D10B: Oil rubbed bronze (clutch)
• SL8160D10BIC: Oil rubbed bronze accepts IC
• SL8160D26: Polished chrome
• SL8160D26D: Dull chrome
• CSL8160D26D: Dull chrome (clutch)
• SL8160D26DIC: Dull chrome accepts IC
• SL8160D04: Satin Brass Plated
• SL8160R26DINT: Intruder dull chrome
• SL8160R26DINTIC: Intruder dull chrome for IC
• SL816RDC26D: Double cylinder dull chrome
• Classroom Lock Boxed:
• SL8160R03: Polished brass
• SL8160R10B: Oil rubbed bronze
• CSL81600R10B: Oil rubbed bronze (clutch)
• SL8160R26: Polished chrome
• SL8160R26D: Dull chrome
• CSL8160R26D: Dull chrome (clutch)
• SL8160R26DIC: Dull chrome accepts IC
• SL8160R04: Satin brass plated
• SL8160RDC26D: Double cylinder dull chrome
• Dummy Levers Boxed:
• SL8160Y03: Polished brass
• SL8160Y10B: Oil rubbed bronze
• SL8160Y26: Polished chrome
• SL8160Y26D: Dull chrome
• Dummy Levers Boxed:
• SL8160TC03: Polished brass
• SL8160TC10B: Oil rubbed bronze
• SL8160TC26D: Dull chrome
