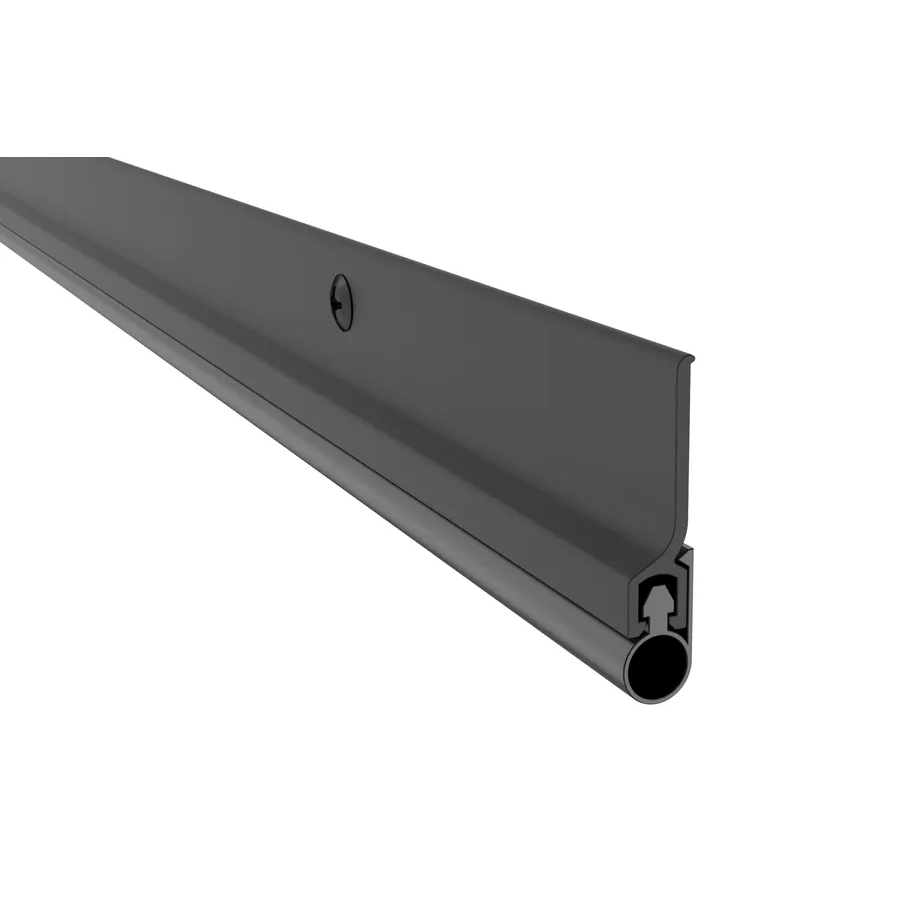

Pemko 303BSPV3684 Weatherstrip 36in x 84in x 84in, Vinyl Insert, Black Suede Powder Coat BSP

Pemko Manufacturing Co 303BSPV3684 Weatherstrip offers a dependable solution for sealing gaps in doors, featuring a robust design and high-quality materials. This weatherstrip measures 36 inches in width and 84 inches in height, making it suitable for standard door applications. Constructed from durable aluminum with a sleek black suede powder coat finish, it not only enhances aesthetics but also ensures long-lasting performance. The 303 series is equipped with a versatile Eco-V insert, designed to effectively seal gaps up to the depth of its seal. Installation is streamlined, thanks to punched slotted holes spaced 6 inches apart and options for self-adhesive two-sided tape or TEK screws. This feature allows for easy adjustments during fitting. For added convenience, the PemKonnect modular version (303AS3684-M) is also available, folding for easier transport and reduced shipping costs. This modular design minimizes storage space and is UL listed and BHMA certified, guaranteeing quality and safety. With a height of 1/4 inch and a width of 1-1/8 inches, the 303BSPV3684 is a reliable choice for any building professional looking to enhance door sealing efficiency while ensuring a polished finish.

Weatherstrip 36in x 84in x 84in, Vinyl Insert, Black Suede Powder Coat BSP

The 303 series standard perimeter gasket is available with either a silicone (303_S), PemkoPrene (303_PK) or Eco-V (303_V) insert. A PemKonnect modular version (303AS3684-M) with silicone insert, which folds to fit into smaller packaging for increased freight savings and easy transport, is also available.

Features:

• Can seal gaps up to the depth of its seal
• Punched on 6" centers with slotted holes for adjustment
• Available with self-adhesive, two-sided tape (TST), and TEK screws for easy installation
• PemKonnect modular version (303AS3684-M) with silicone insert folds to fit and ship in smaller packaging, reducing freight costs and easing transportation
• Can be used as a meeting stile or perimeter gasket
• PemKonnect modular version reduces storage space, shipping costs, and freight damage
• PemKonnect modular version is UL listed and BHMA certified

Specifications:

• Base Material: Aluminum
• Fasteners: Self-adhesive , two-sided tape , PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1/4"
• Mounting Location: Side of frame
• Mounting Type: Screw applied
• Width: 1/4"

Finishes:

• A - Mill finish aluminum
• BDG - Bright dip gold anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized
• PW - Painted white aluminum
• SN - Satin nickel anodized aluminum
