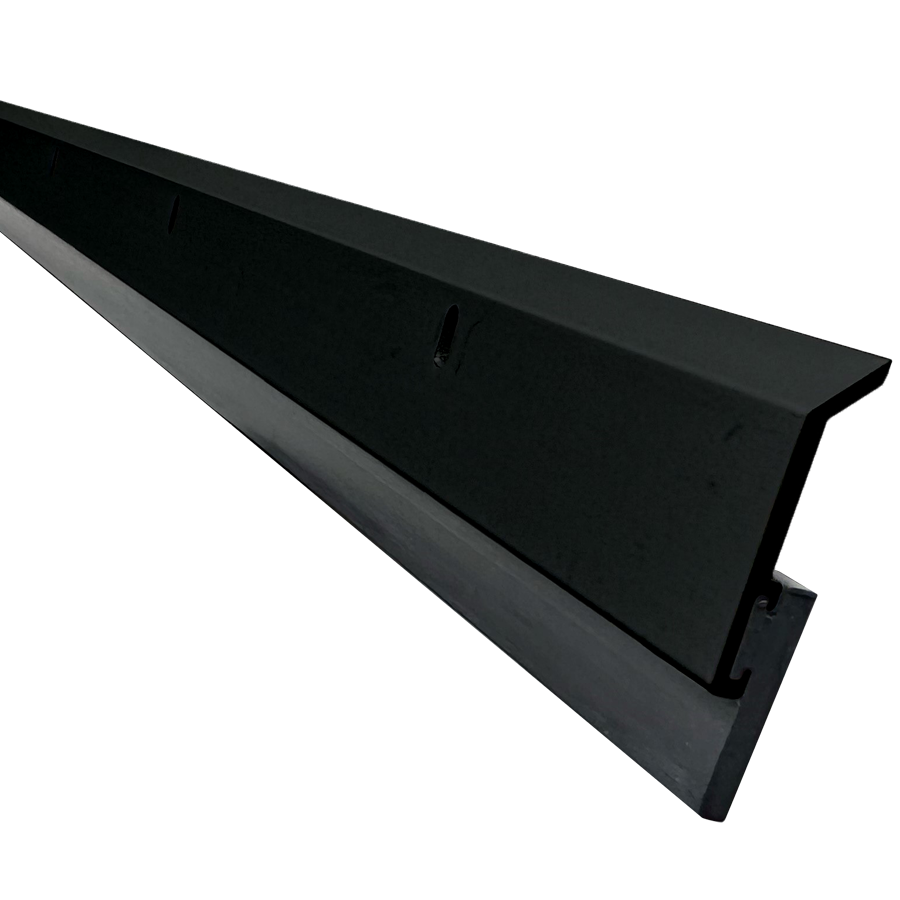

Pemko 315BSPN 36IN 7/16in Neoprene Sweep 36in, Overall Height 1-11/16in, Black

Pemko Manufacturing Co 315BSPN 36IN Neoprene Sweep is engineered to provide superior sealing capabilities for your doors. Constructed with a robust 1.25" aluminum casing and a neoprene extrusion, this door sweep is specifically rated for smoke, fire, and air infiltration. It effectively seals the gap between the door bottom and the threshold or floor, measuring up to 7/16", ensuring a tight barrier against light, air, wind, rain, and snow, while also preventing heat loss and controlling smoke penetration. Installation is straightforward, aided by slotted holes that allow for easy adjustment. This unit comes complete with color-coordinated screws for a seamless aesthetic. Notably, the neoprene material boasts outstanding resistance to abrasion, hydraulic fluids, heat, and ozone, making it suitable for various environmental conditions. It is, however, not recommended for areas exposed to significant gasoline or other fuel oils. The 315BSPN is versatile, available in an array of finishes, including clear anodized aluminum and dark bronze anodized, to complement any door design. With a total height of 1-11/16" and a width of 1/4", this durable door sweep is an essential component for enhancing the efficiency and comfort of your space.

7/16in Neoprene Sweep 36in, Overall Height 1-11/16in, Black

The 315_N surface plate door sweep is designed with a 1.25" aluminum casing and a neoprene extrusion that is rated for smoke, fire, and air infiltration. It creates a seal between the door bottom and the threshold/floor surface. Available in various finishes and sizes, this door sweep is easy to install. Screws are included and color-coordinated with the casing.

Features:

• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Fitted with a neoprene synthetic rubber extrusion
• Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
• Surface applied
• Outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, weather
• Seal up to a 7/16" the gap between the door and threshold or to the floor surface
• Resistant to polar substances and steam
• Not recommended in situations that involved significant gasoline or other fuel oil, kerosene, propane, or mineral oil

Specifications:

• Base Material: Aluminum, Brass, Stainless Steel
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 1-1/4" (31.8 mm)
• Width: 1/4" (6.4 mm)
• Total Height with Insert: 1-11/16" (42.9 mm)

Finishes:

• B - Mill finish extruded bronze (brass)
• C - Clear anodized aluminum
• D - Dark bronze anodized
• G - Gold anodized
• PW - Painted white aluminum
• SN - Satin nickel anodized aluminum
